Engine Immobilizer System (W/Smart Entry System) - Diagnostics
>>
System Diagram
System Diagram

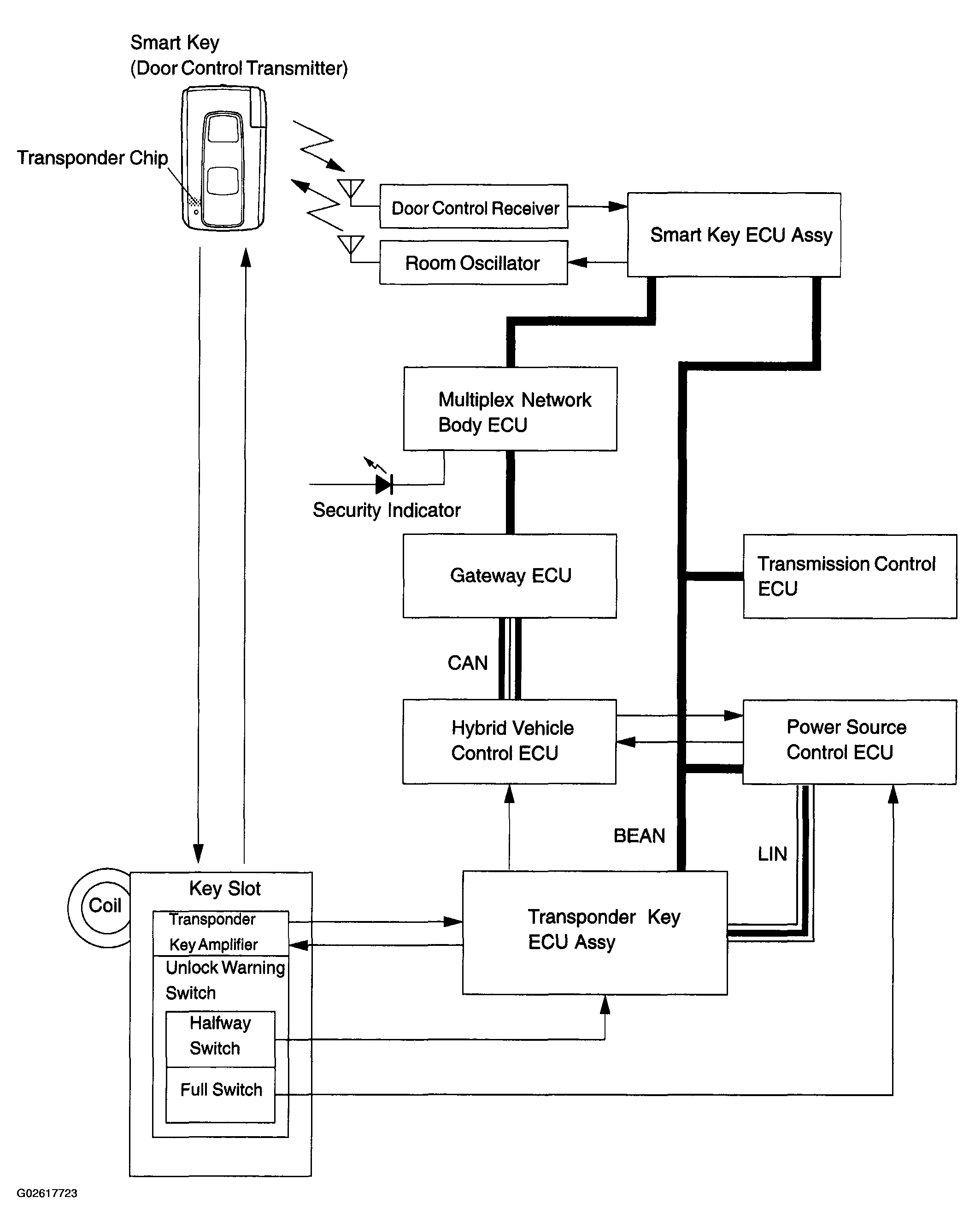

Fig 1: Engine Immobilizer System (W/ Smart Entry System) - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
