Diagnostic Trouble Codes Check/Clear

1. Connect the hand-held tester together with the CAN VIM. Then connect the CAN VIM to the DLC3.
2. Turn the power switch ON (IG).
3. Read the DTCs by following the directions on the tester's screen.

HINT:

Refer to the hand-held tester operator's manual for further details.

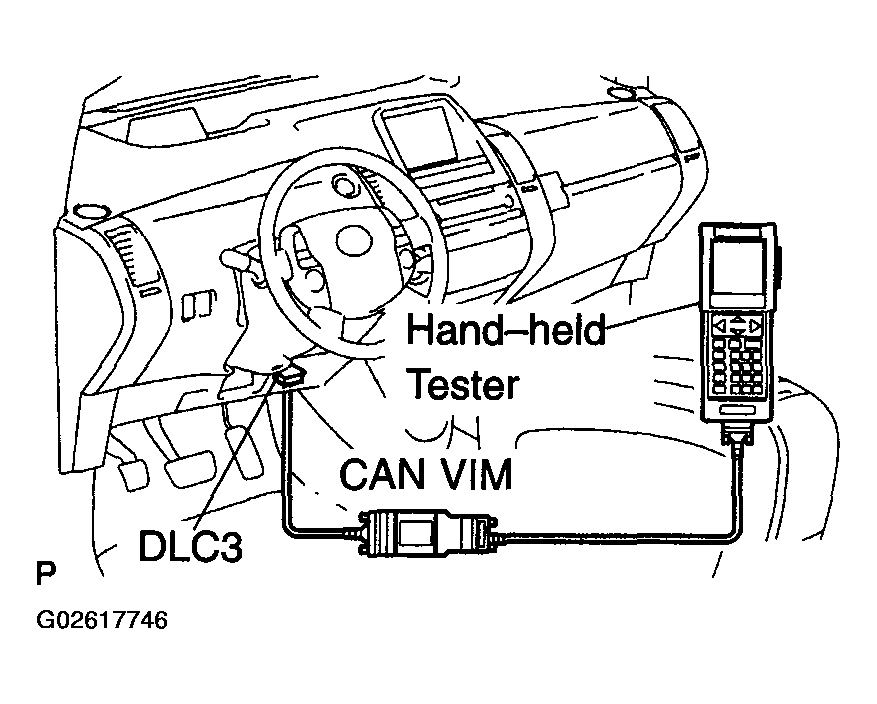

Fig 1: Connecting CAN VIM To DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the power switch ON (IG).
3. Erase the DTCs by following the directions on the tester's screen.

HINT:

Refer to the hand-held tester operator's manual for further details.
