Diagnostic Trouble Code Chart
DIAGNOSTIC TROUBLE CODES (DTC0 LIST
| DTC | Description |
|---|---|
| DTC B2775 | INTERIOR VERIFICATION ABNORMAL (TO THEFT DETERRENT ECU) |
| DTC B2784 | ANTENNA COIL OPEN/SHORT |
| DTC B2785 | IGNITION SWITCH ON MALFUNCTION |
| DTC B2793 | TRANSPONDER CHIP MALFUNCTION |
| DTC B2794 | UNMATCHED ENCRYPTION CODE |
| DTC B2795 | UNMATCHED KEY CODE |
| DTC B2796, B2798 | NO COMMUNICATION IN IMMOBILIZER SYSTEM & COMMUNICATION MALFUNCTION NO. 2 |
| DTC B2797 | COMMUNICATION MALFUNCTION NO.1 |
| DTC B2799 | 539, B2799-540, B2799-541, B2799-542, B2799-543, B2799-544: ENGINE IMMOBILIZER SYSTEM MALFUNCTION |

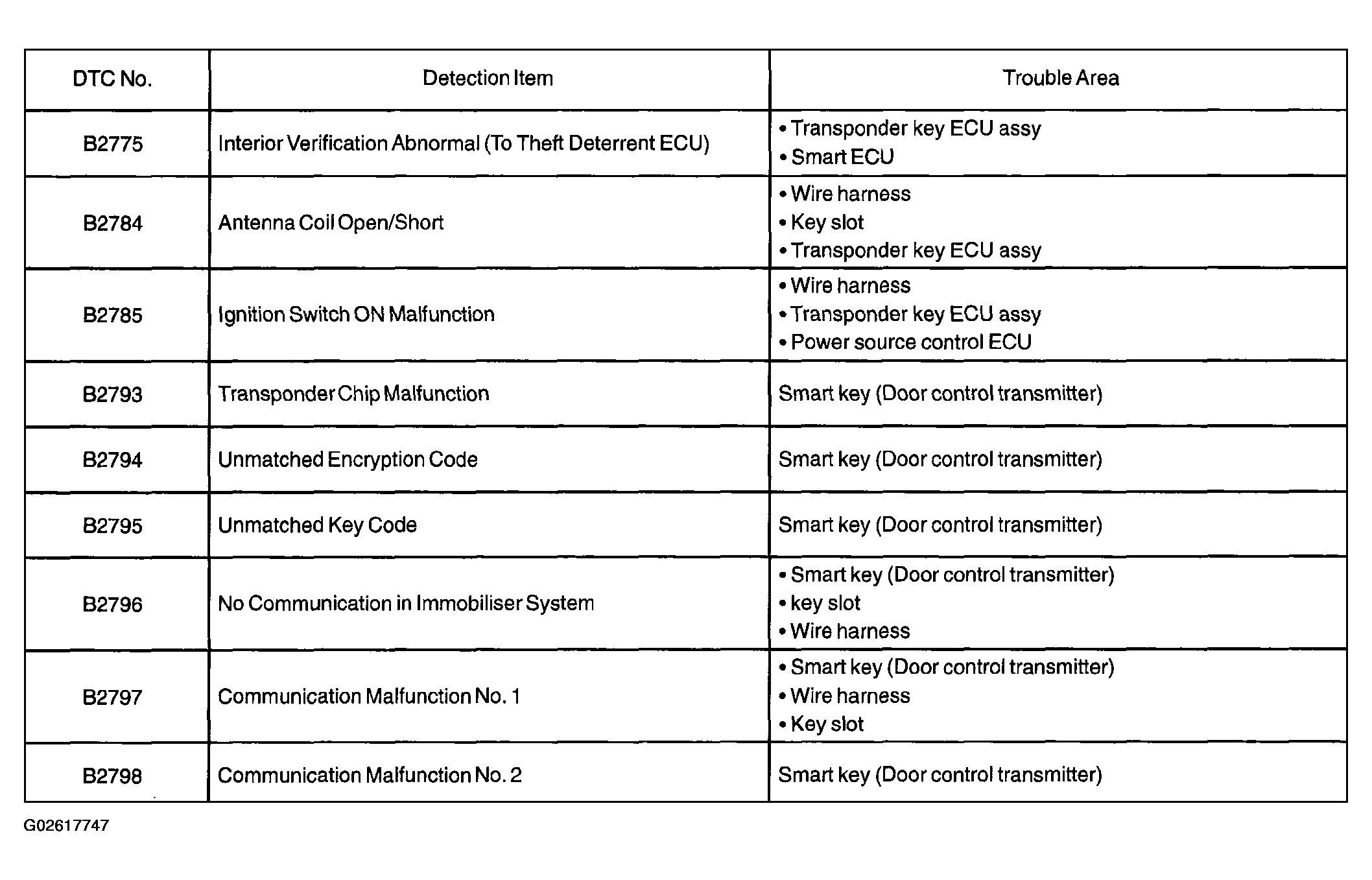

- TRANSPONDER KEY ECU DTC CHART

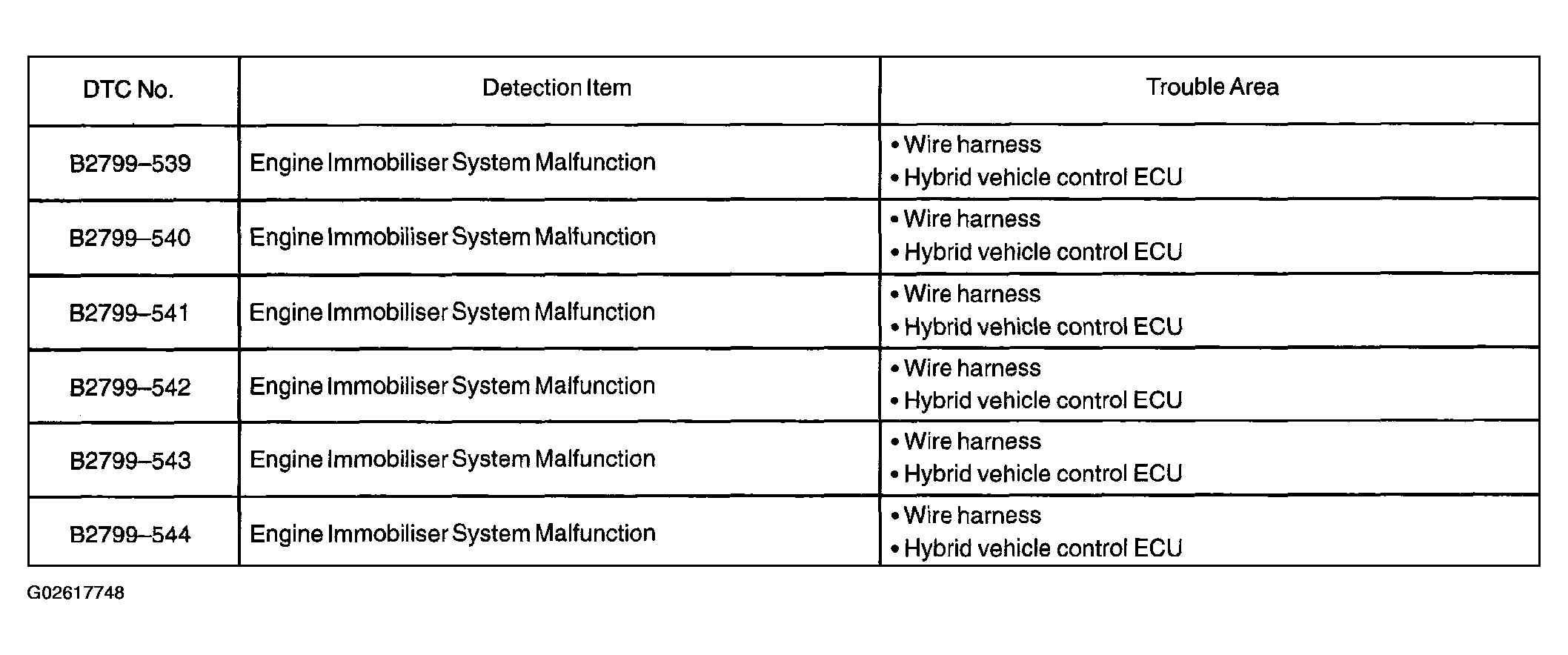

- HYBRID VEHICLE CONTROL ECU DTC CHART NOTE: The DTCs for the immobilizer system are specified above. If the other codes are output, check the DTC (s) chart for the hybrid control system.
