Power Steering Vane Pump: Installation

  1. INSTALL PS VANE PUMP ASSEMBLY

    Torque the 3 bolts.

    Torque: 17 N.m (175 kgf.cm, 13 ft.lbf)

  2. INSTALL PRESSURE FEED TUBE

    Install new gaskets on each side of the tube and torque the union bolt.

    Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)

    HINT:

    Make sure that the stopper of the tube touches the PS vane pump body as shown in Fig 1, then torque the bolt.

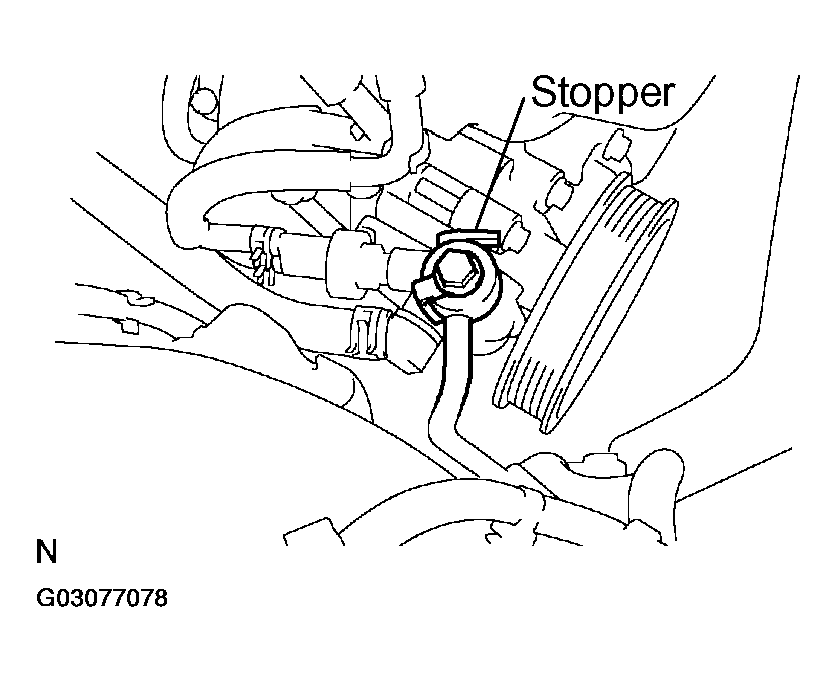

    Fig 1: Making Sure Stopper Of Tube Touches PS Vane Pump Body
    G03077078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT RETURN HOSE

    Install the clip.

  4. CONNECT 2 VACUUM HOSES

    Install the 2 clips.

  5. INSTALL DRIVE BELT

    Loosen the drive belt tension by turning the drive belt tensioner counterclockwise, and install the belt.

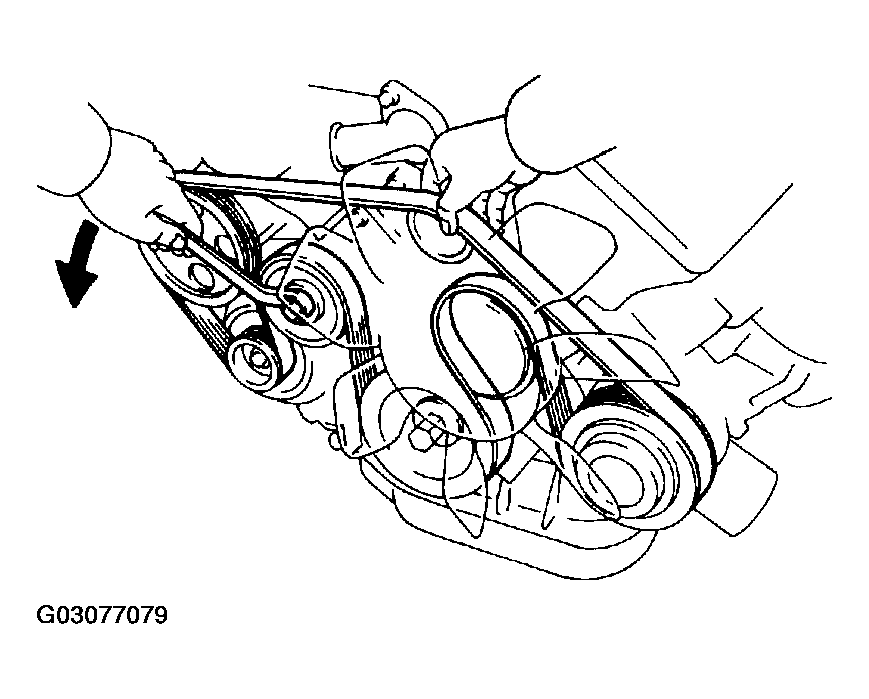

    Fig 2: Installing Drive Belt
    G03077079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
    1. Tighten the 3 bolts.
    2. Tighten the clamp.
    3. Connect the hose.
    4. Connect the MAF meter connector.
  7. INSTALL NO. 2 ENGINE UNDER COVER

    Tighten the 8 bolts.

  8. INSTALL NO. 1 ENGINE UNDER COVER

    Tighten the 6 bolts.

  9. BLEED POWER STEERING SYSTEM (See  POWER STEERING FLUID   )
