Cranking Holding Function Circuit: Wiring Diagram

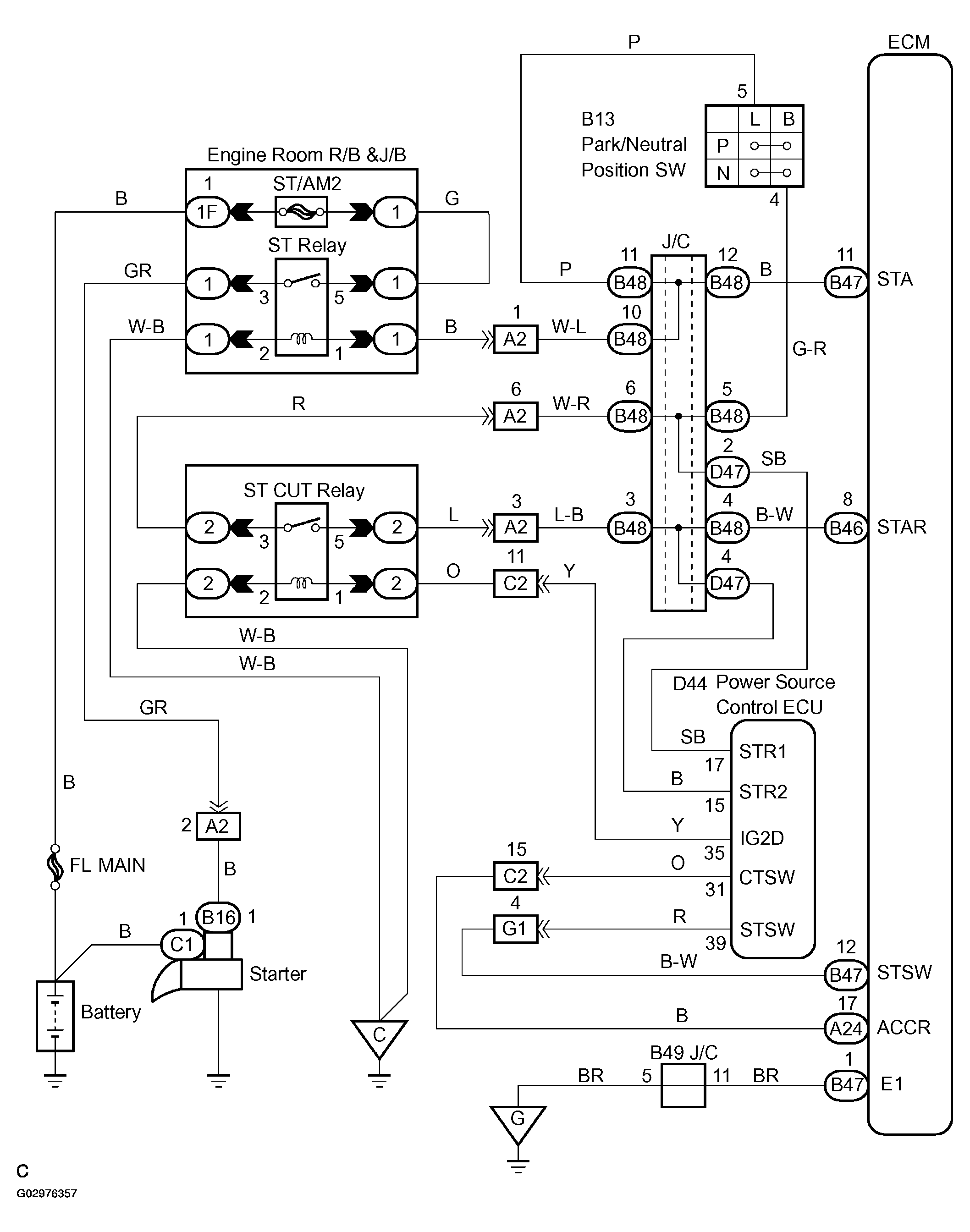

Fig 1: Identifying Cranking Holding Wiring Diagram

G02976357

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
