System Diagram
System Diagram

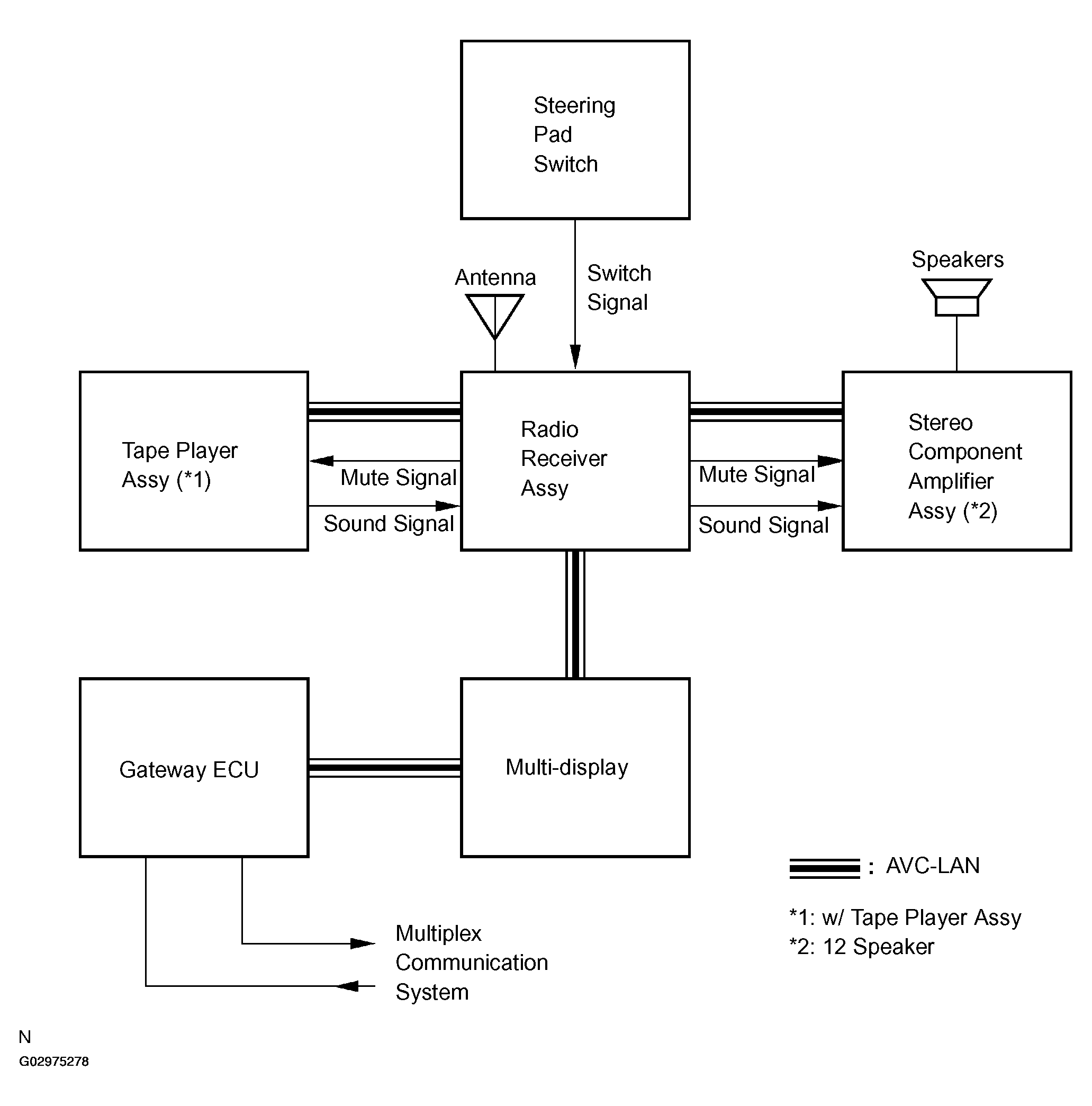

Fig 1: Identifying Audio System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
