Data List/Active Test

1. While the hand-held tester is connected to the DLC3 with the ignition switch turned on (IG), the CRUISE CONTROL data list can be displayed. Follow the prompts on the tester screen to access the data list.

   CC (ECM):

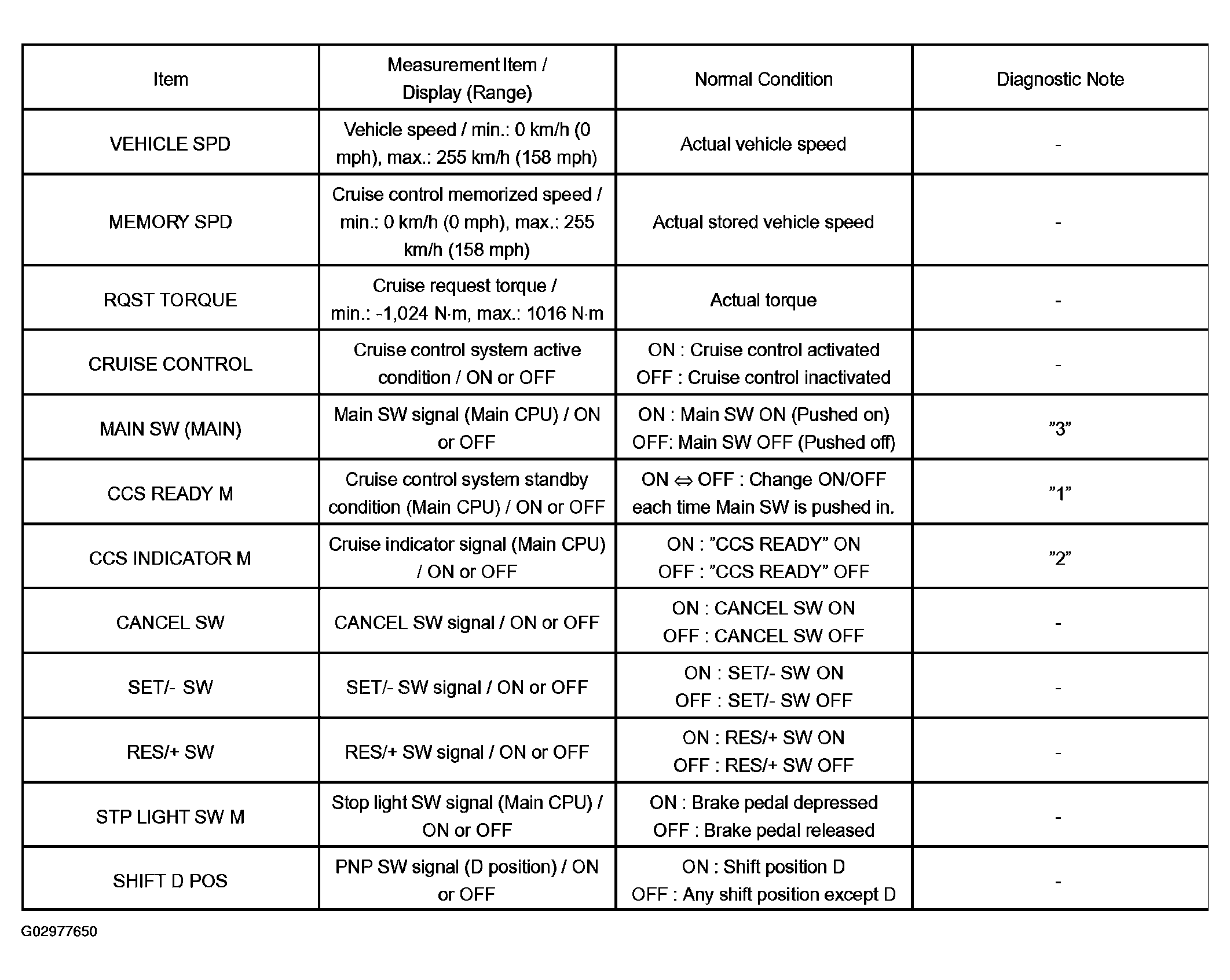

   Fig 1: Data List Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   "3" is OK but "1" is NG --> ECM failure

   "1" is OK but "2" is NG --> DTC output or ECM failure

   "3" is OK but cruise indicator not turn on --> CRUISE MAIN indicator or wire harness or ECM failure

HINT:

Performing the ACTIVE TEST using the hand-held tester allows components such as the relay, VSV, and actuator to operate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one way to shorten labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch on (IG).
3. According to the display on the tester, perform the "ACTIVE TEST".

   HINT:

   The ignition switch must be turned on (IG) to proceed with the ACTIVE TEST using the hand-held tester.

   COMBINATION METER ASSY:

   VEHICLE CONDITION / TEST DETAILS



   Item	Vehicle Condition / Test Details	Diagnostic Note
   CRUISE INDIC	"CRUISE" indicator is ON / OFF	-
