Glossary Of Sae And TOYOTA Terms

This glossary lists all SAE-J1930 terms and abbreviations used in these articles are in compliance with SAE recommendations, as well as their TOYOTA equivalents.

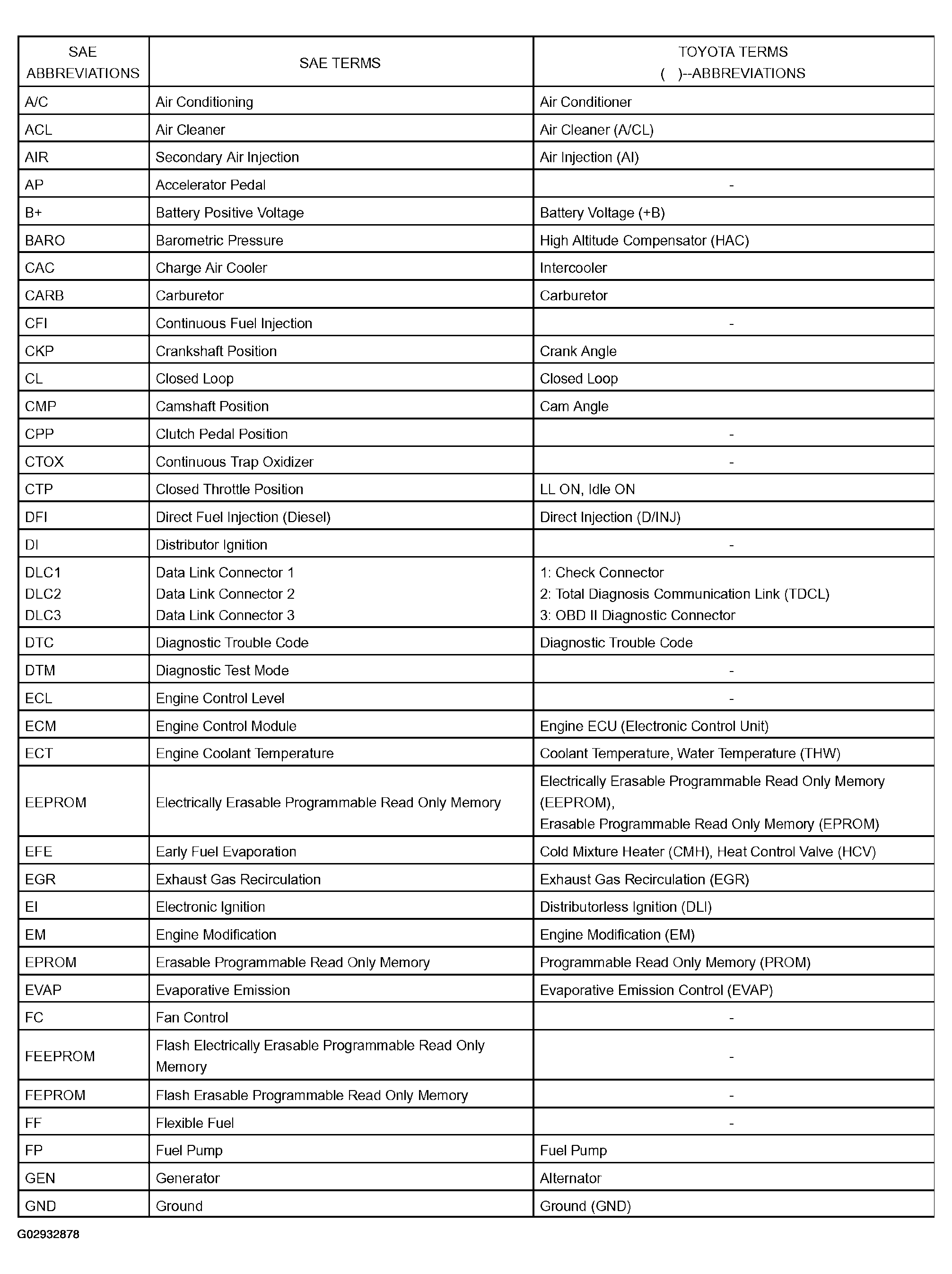

Fig 1: SAE & Toyota Abbreviation Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

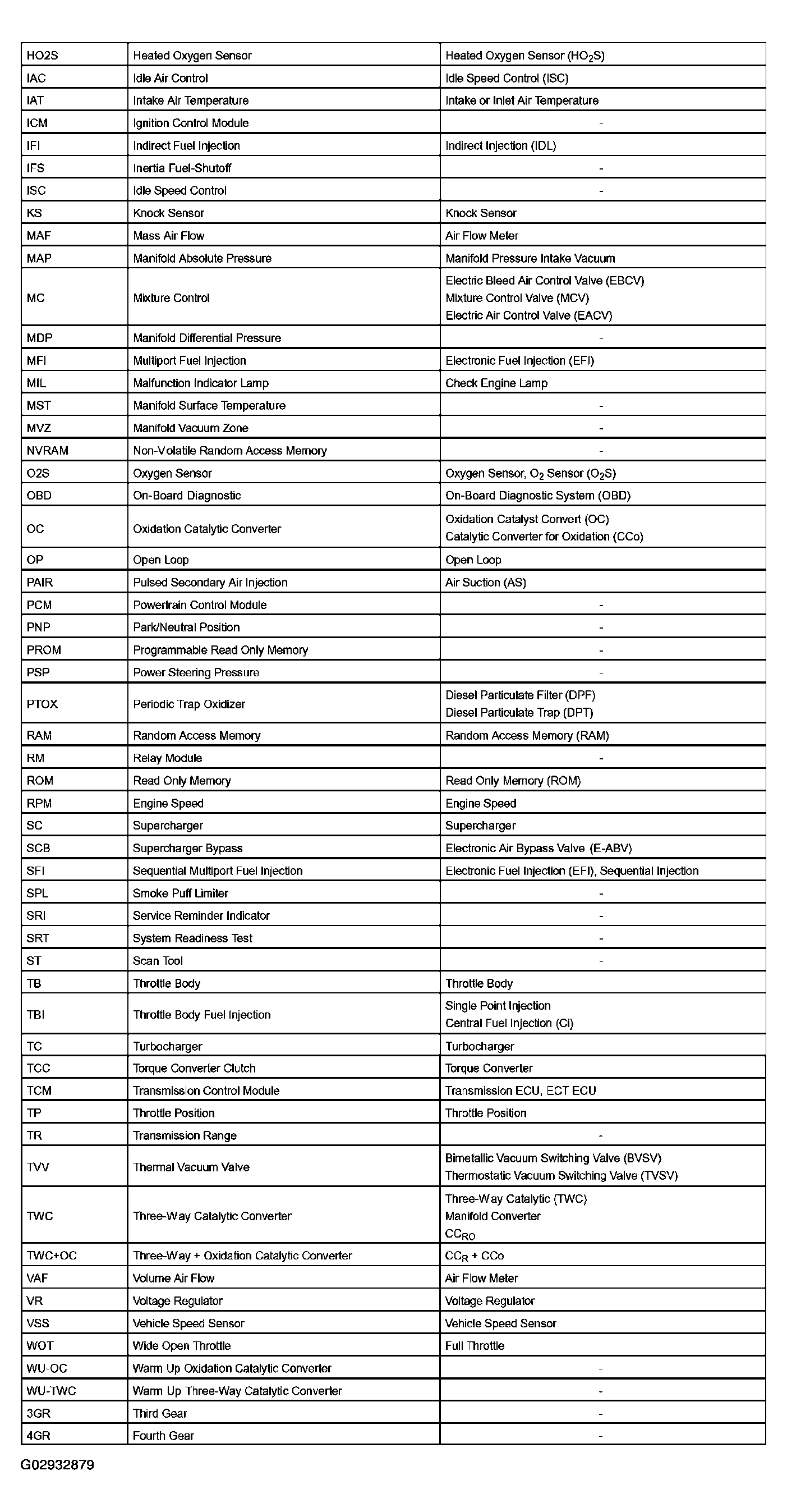

Fig 2: SAE & Toyota Abbreviation Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
