Front Seat Belt With PRETENSIONER: Components

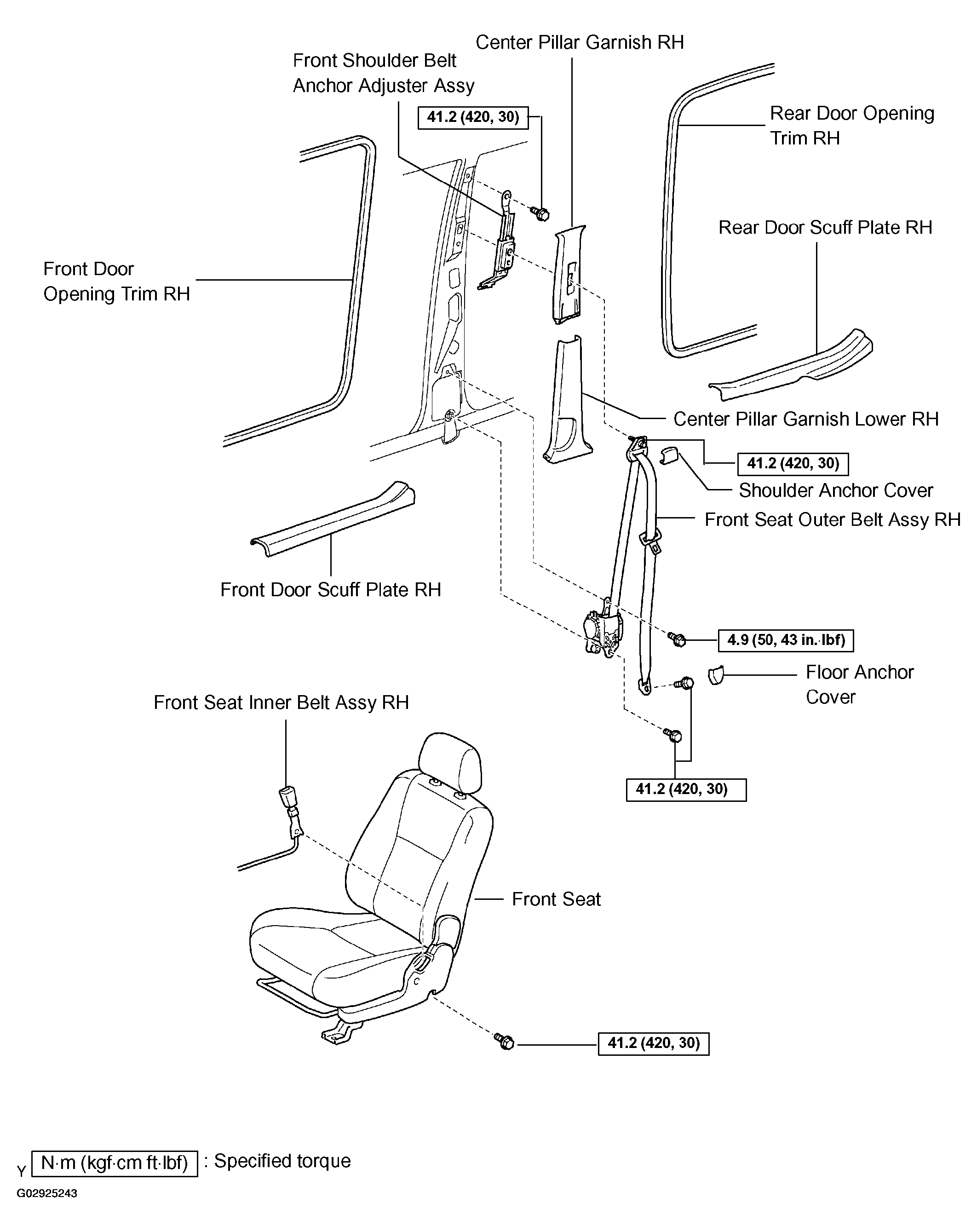

Fig 1: Exploded View Of Front Seat Belt And Related Components

G02925243

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
