POWER DOOR LOCK CONTROL SYSTEM DESCRIPTION
1. The power door lock system locks/unlocks all the doors simultaneously.
  The master switch and the door control switch (on the passenger side door) send lock/unlock request signals to the door lock control relay. Then, the door lock control relay sends these requests to the lock motors in each door to lock/unlock all the doors simultaneously.

  Operating the driver side and passenger side door locks using a key sends lock/unlock request signals to the door lock control relay. The driver side door key-linked lock function has an optional unlock method called the "2-step unlock function". Please refer to Fig 1 in step b) for details on this function.
2. The power door lock control system has the following functions:

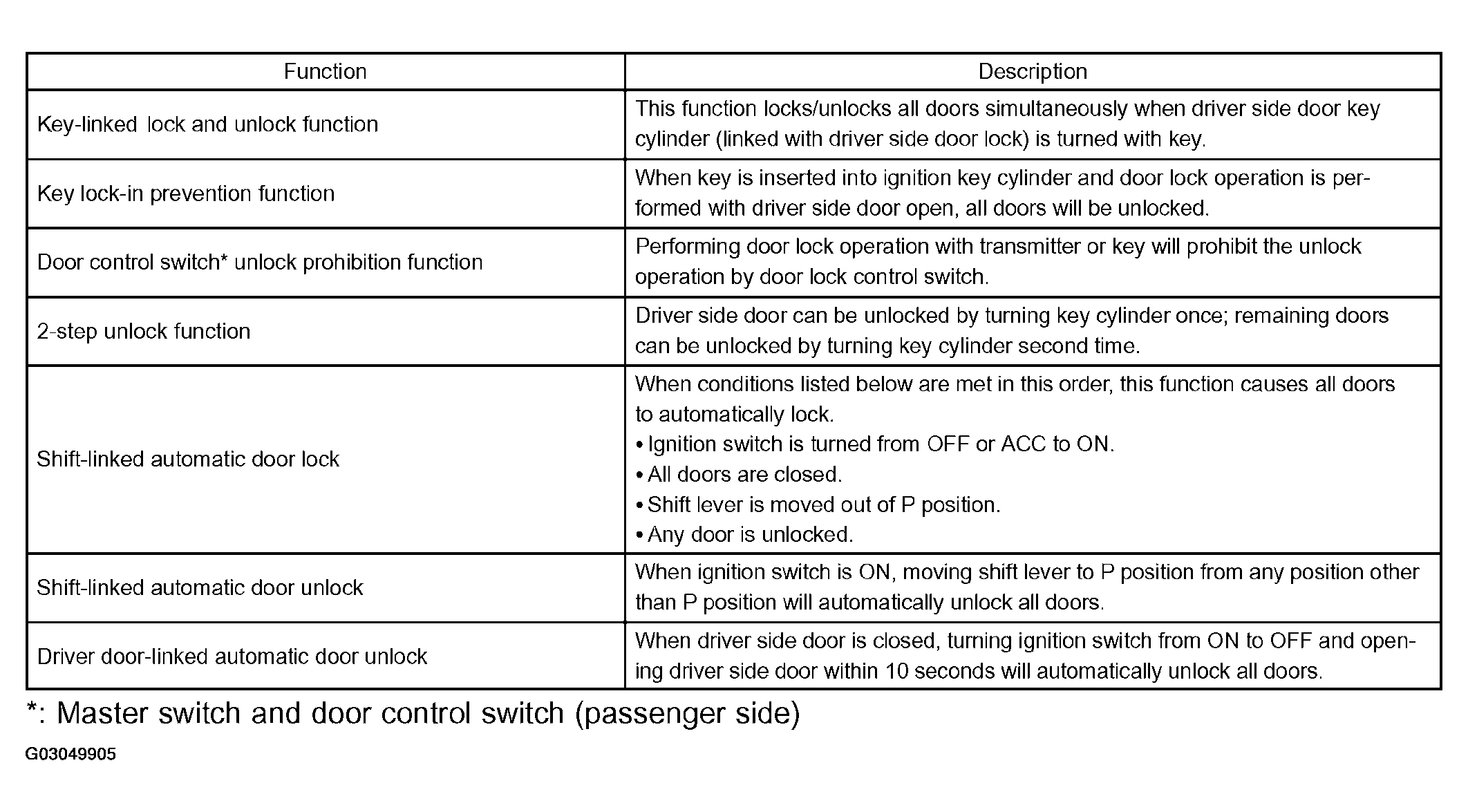

  Fig 1: Power Door Lock Control System Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
