Section 643 (Emission Control System (2AZ-FE)): Inspection

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT VENTILATION VALVE SUB-ASSY
    1. Install a clean hose to the ventilation valve.
    2. Check ventilation valve operation.
      1. Blow air into the cylinder head side, and check air passes through easily.
        CAUTION: Do not suck air through the valve. Petroleum substances inside the valve are harmful.

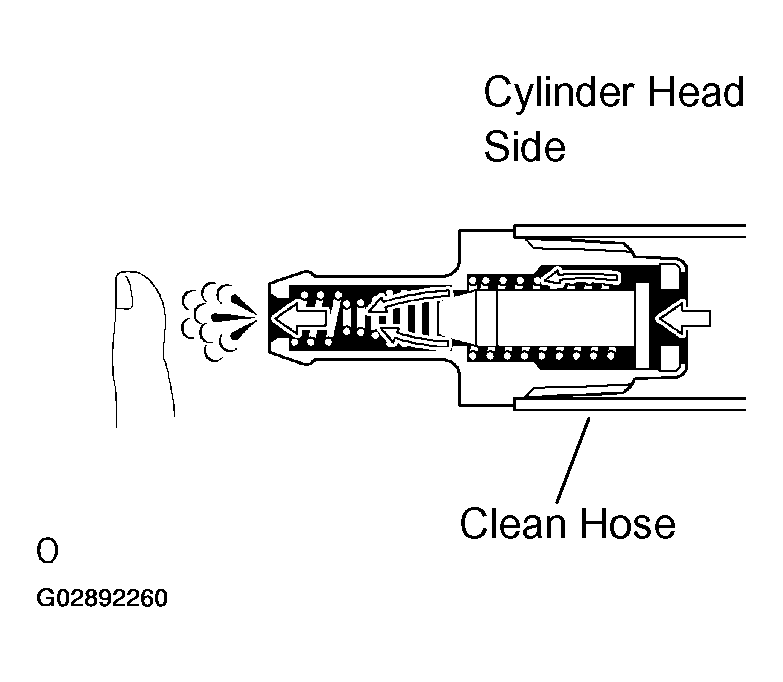

        Fig 1: Checking Ventilation Valve Operation
        G02892260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Blow air into the intake manifold side, and check that air passes through with difficulty.

        If operation is not as specified, replace the ventilation valve.

    3. Remove the clean hose from the ventilation valve.

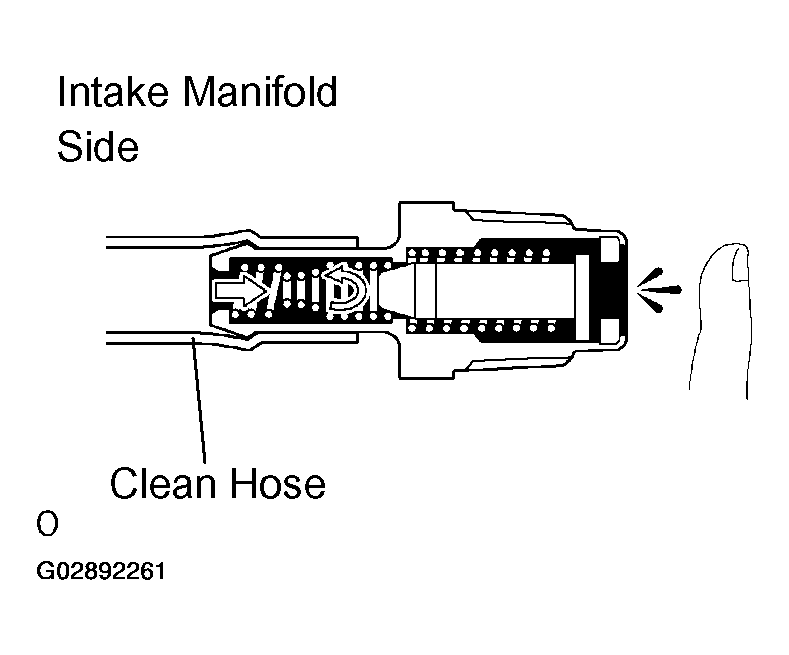

      Fig 2: Checking Air Passes Through Ventilation Valve With Difficulty From Intake Manifold Side
      G02892261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT FUEL TANK CAP ASSY
    1. Visually check if the cap and gasket are deformed or damaged.

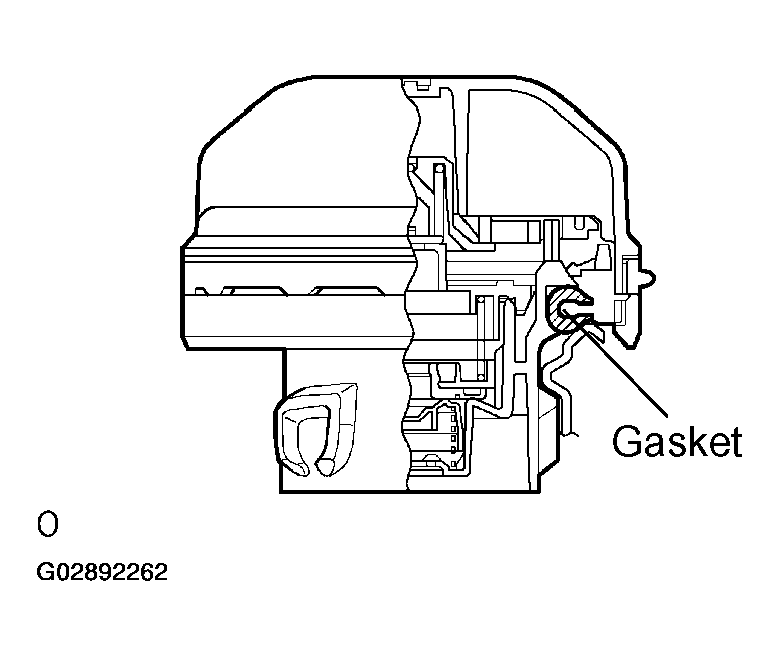

      Fig 3: Identifying Fuel Tank Cap Gasket
      G02892262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT CHARCOAL CANISTER ASSY (Except PZEV)
    1. Visually check the charcoal canister for cracks or damage.

      If cracks or damage is found, replace the charcoal canister assy.

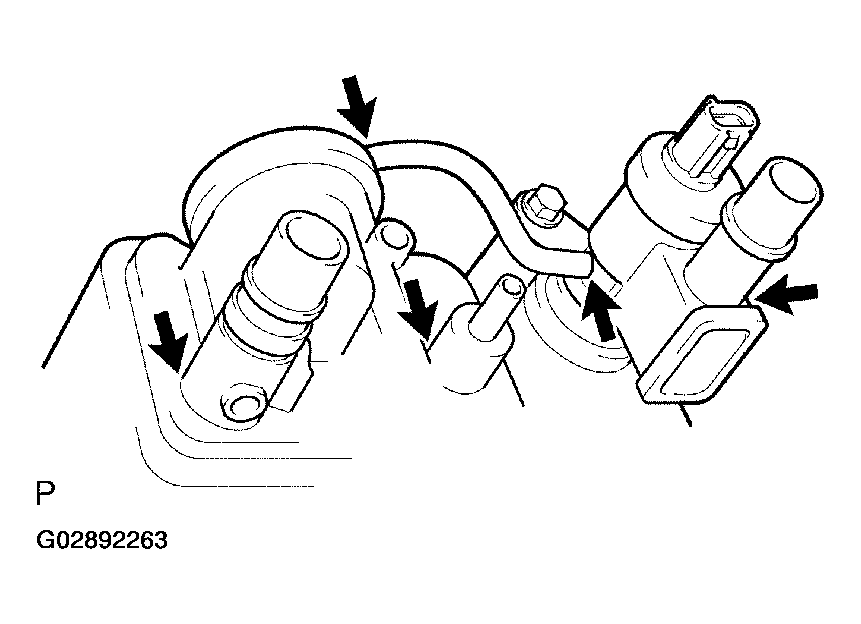

      Fig 4: Checking Charcoal Canister For Cracks Or Damage
      G02892263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check charcoal canister operation.
      1. While holding the purge port closed, blow air (0.39 kPa, 4.0 gf/cm2 , 0.06 psi) into the vent port, and check that air flows from the air inlet port.

        If the result is not as specified, replace the charcoal canister.

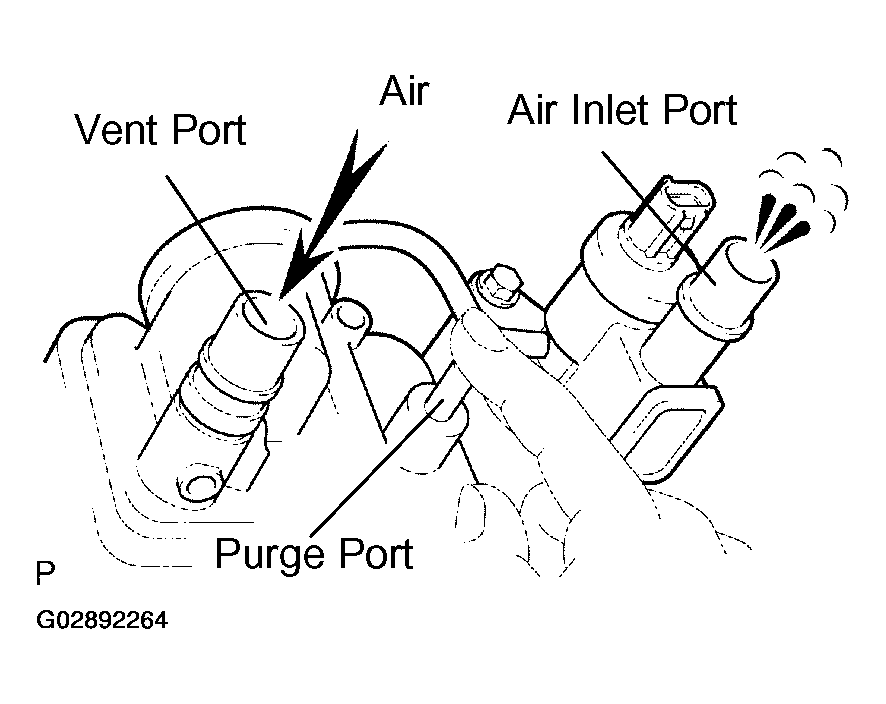

        Fig 5: Checking Air Flows From Air Inlet Port While Holding Purge Port Closed
        G02892264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. While holding the air inlet port closed, blow air (0.39 kPa, 4.0 gf/cm2 , 0.06 psi) into the vent port, and check that air flows from the purge port.

        If the result is not as specified, replace the charcoal canister.

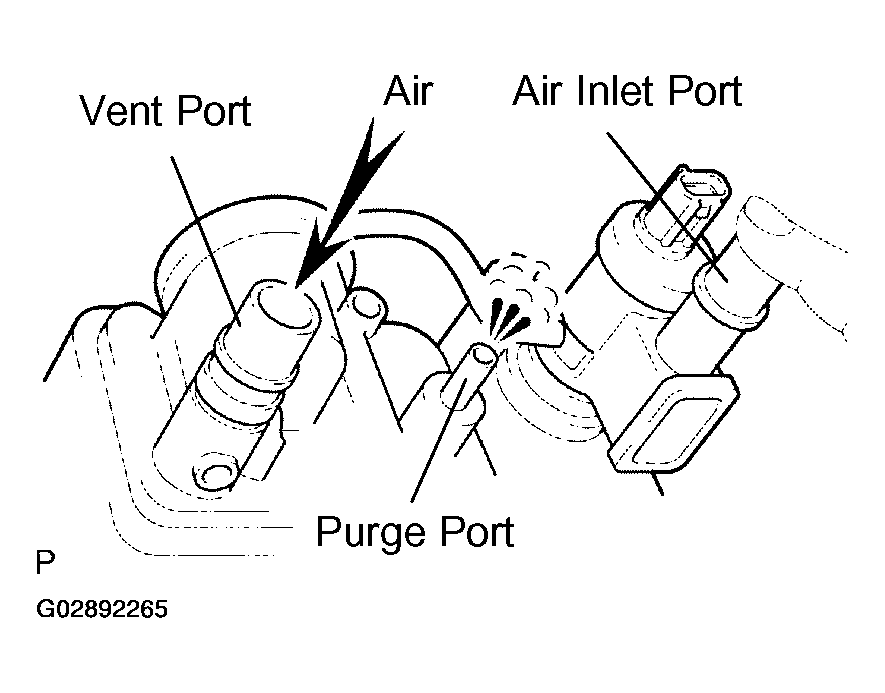

        Fig 6: Checking That Air Flows From Purge Port While Holding Air Inlet Port Closed
        G02892265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. While holding the air inlet port closed, apply vacuum (3.43 kPa, 25.7 gf/cm2 , 1.01 psi) to the vent port, and check that air is sucked in from the purge port.

        If the result is not as specified, replace the charcoal canister.

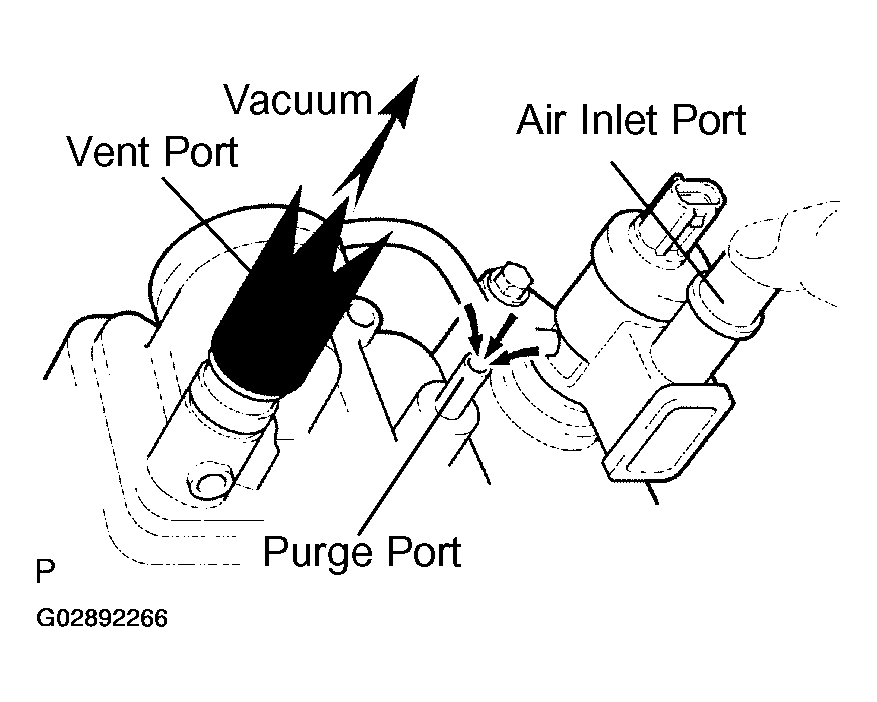

        Fig 7: Checking Air Is Sucked In From Purge Port While Holding Air Inlet Port Closed
        G02892266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check the air tightness.
      1. While holding the vent and air inlet ports closed, apply vacuum (3.43 kPa, 25.7 gf/cm2 , 1.01 psi) to the purge port, and check that the vacuum is maintained for 1 minute.

        HINT:

        In order to maintain air tightness, the check should be performed while holding the CCV terminal port closed.

        If the result is not as specified, replace the charcoal canister.

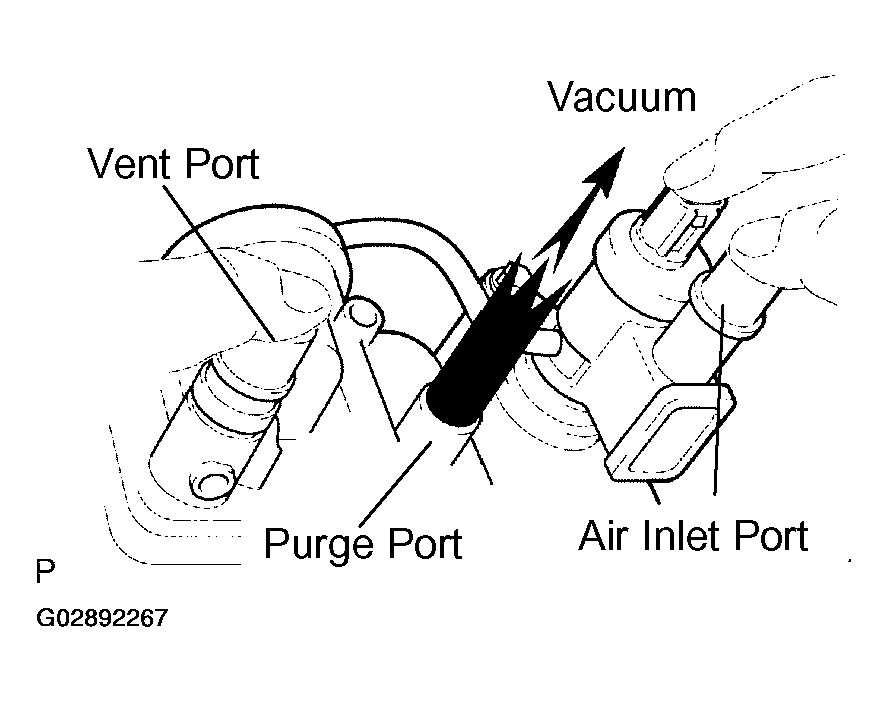

        Fig 8: Checking Air Tightness Of Charcoal Canister
        G02892267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check the diaphragm.
      1. Remove the air hose between ports A and B.
      2. While holding the vent, purge and air inlet ports closed, apply vacuum (1.42 kPa, 11 mmHg, 0.42 in.Hg) into port A, and check that air is sucked in from port B.

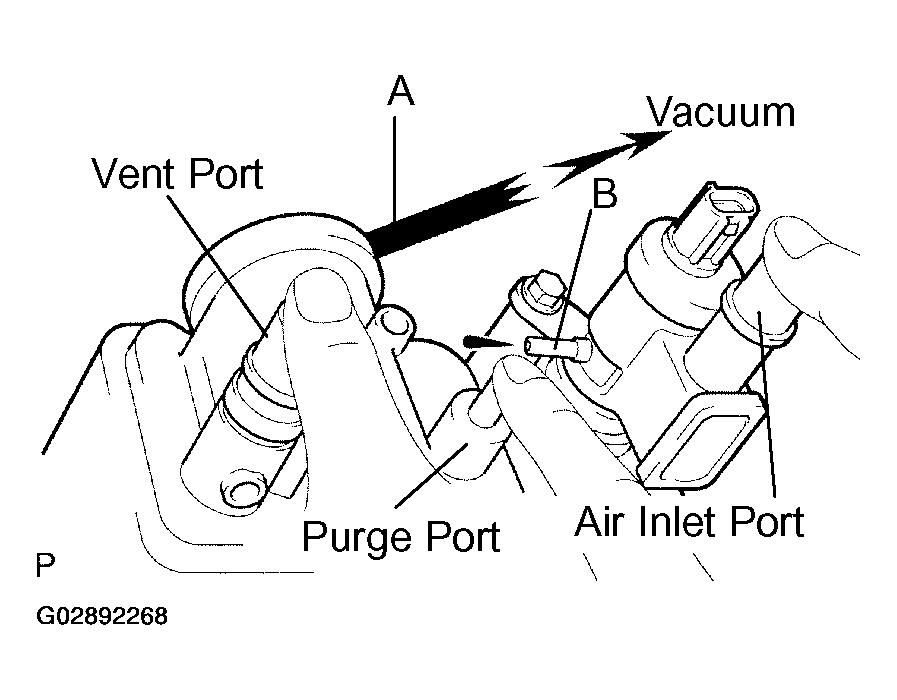

        Fig 9: Checking Air Is Sucked In From Port B
        G02892268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. While holding the vent, purge and air inlet ports closed, apply vacuum (1.42 kPa, 11 mmHg, 0.42 in.Hg) into port A, and measure how long it takes for vacuum to drop.

        Vacuum drop time: 10 seconds or more

        If the result is not as specified, replace the charcoal canister.

      4. Reinstall the air hose between ports A and B.

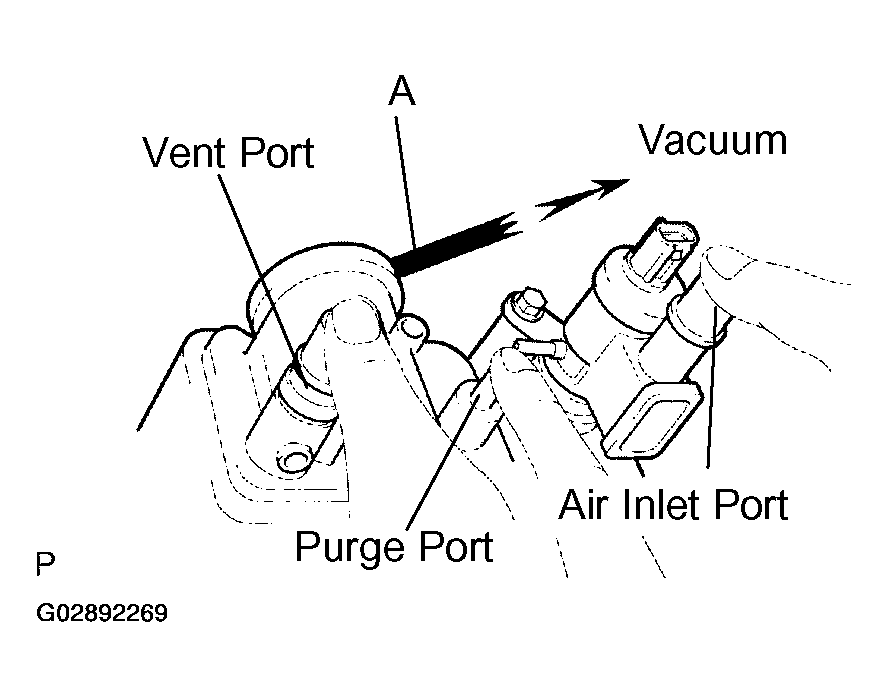

        Fig 10: Checking Vacuum Drop Time
        G02892269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Check the VSV for open circuit.
      1. Measure the resistance between the terminals.

        Standard:

        VSV TERMINAL RESISTANCE SPECIFICATION

        Condition Specified Condion
        20°C (68°F) 25 to 30Ω
        100°C (212°F) 32 to 40Ω

        If the result is not as specified, replace the charcoal canister.

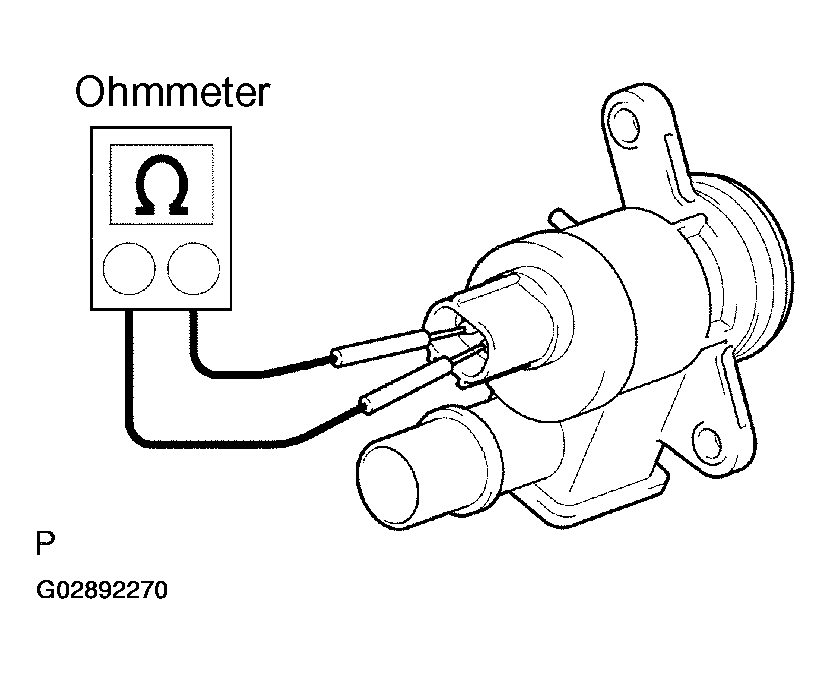

        Fig 11: Measuring Resistance Between VSV Terminals
        G02892270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Check VSV operation.
      1. Check that air flows from port A to ports B and C.

        If the result is not as specified, replace the charcoal canister.

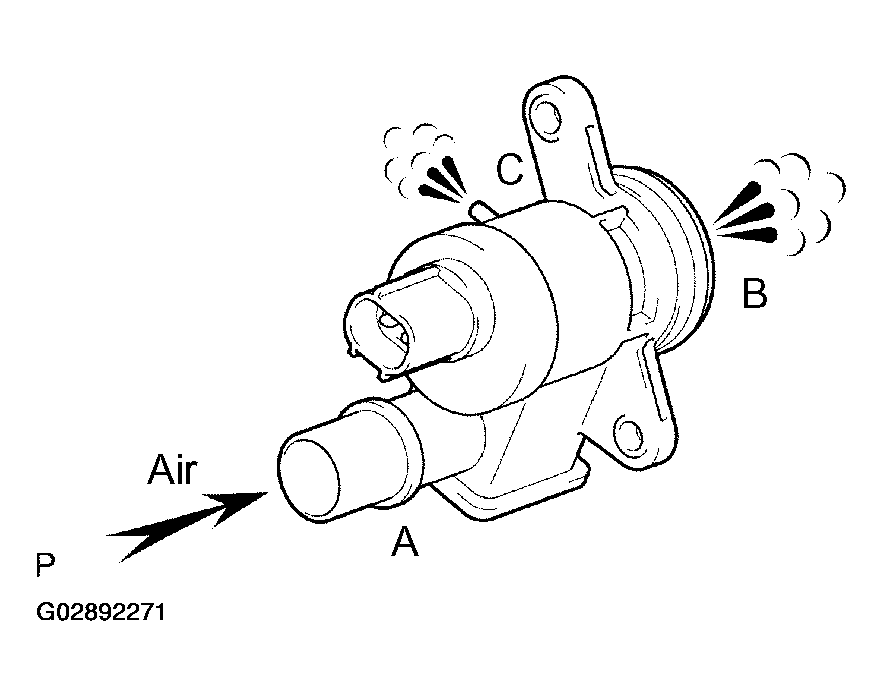

        Fig 12: Checking Air Flows From Port A To Ports B And C
        G02892271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Apply battery positive voltage across the terminals.
      3. Check that the valve is closed.

        If the result is not as specified, replace the charcoal canister.

        NOTE: Incorrect electrode connection causes damage to the VSV. Pay due attention when connecting the lead wire.

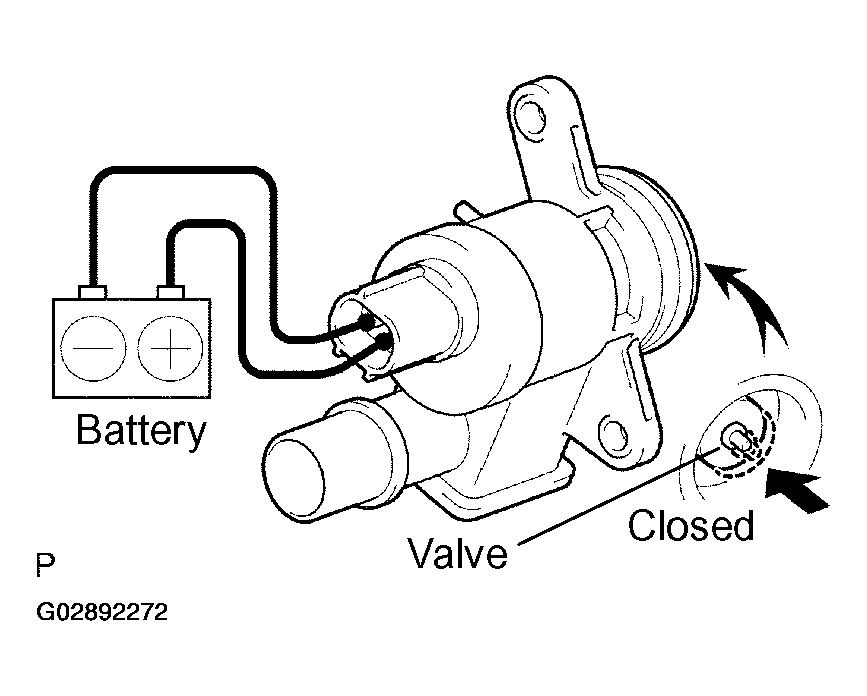

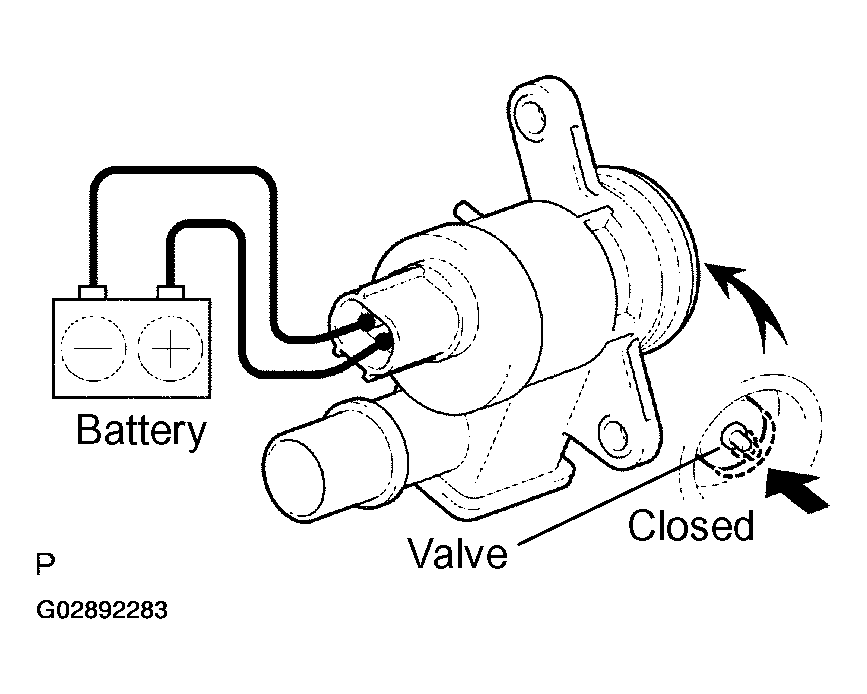

        Fig 13: Checking Valve Closed
        G02892272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Check that air does not flow from port A to port B.
      5. Check that air flows from port A to port C.

        If the result is not as specified, replace the charcoal canister.

        NOTE: Incorrect electrode connection causes damage to the VSV. Pay due attention when connecting the lead wire.

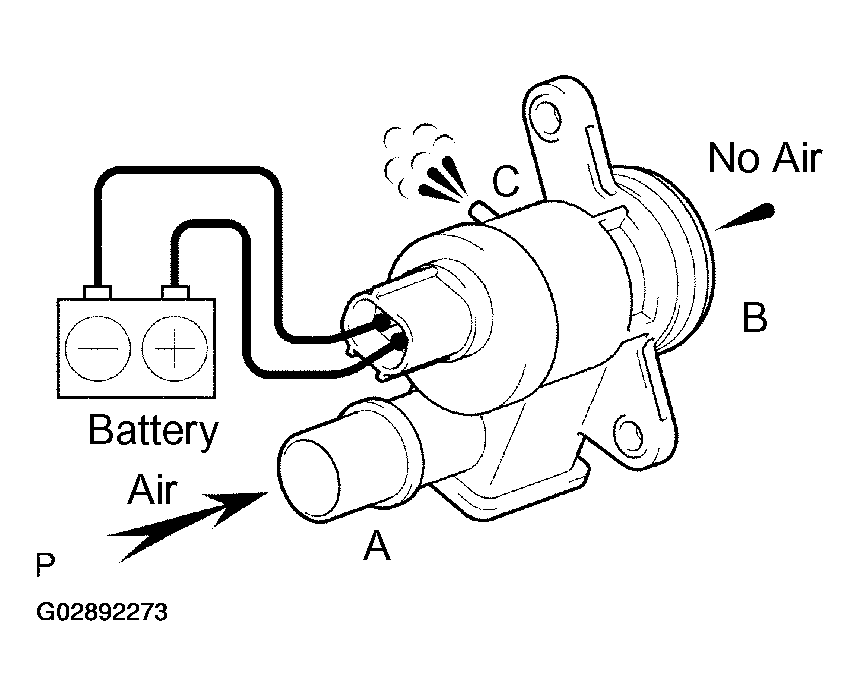

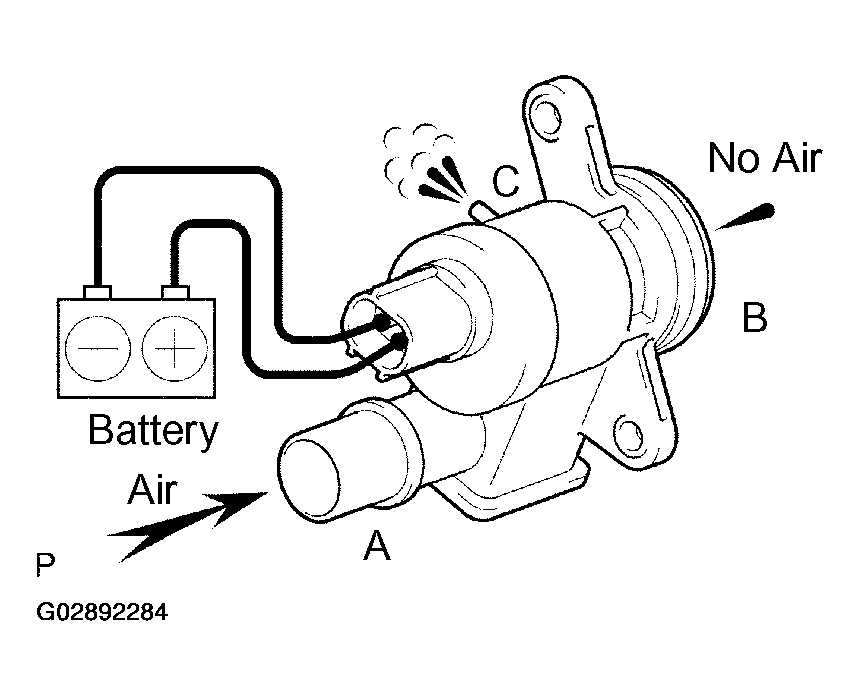

        Fig 14: Checking Air Does Not Flow From Port A To Port B And Flows From Port A To Port C
        G02892273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT CHARCOAL CANISTER ASSY (PZEV)
    1. Visually check the charcoal canister for cracks or damage.

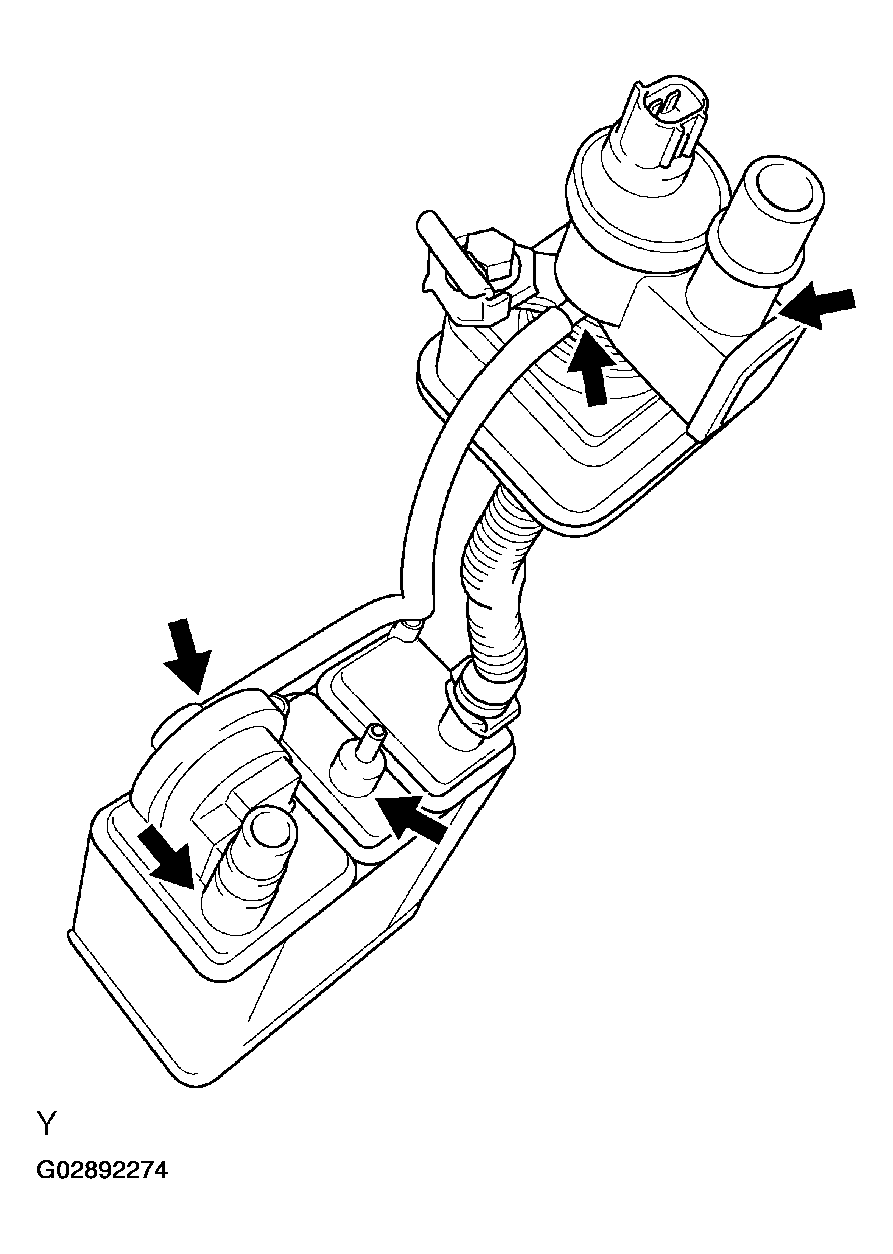

      Fig 15: Checking Charcoal Canister For Cracks Or Damage
      G02892274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the charcoal canister operation.
      1. While holding the purge port closed, blow air (0.39 kPa, 4.0 gf/cm2 , 0.06 psi) into the vent port, and check that air flows from the air line port.

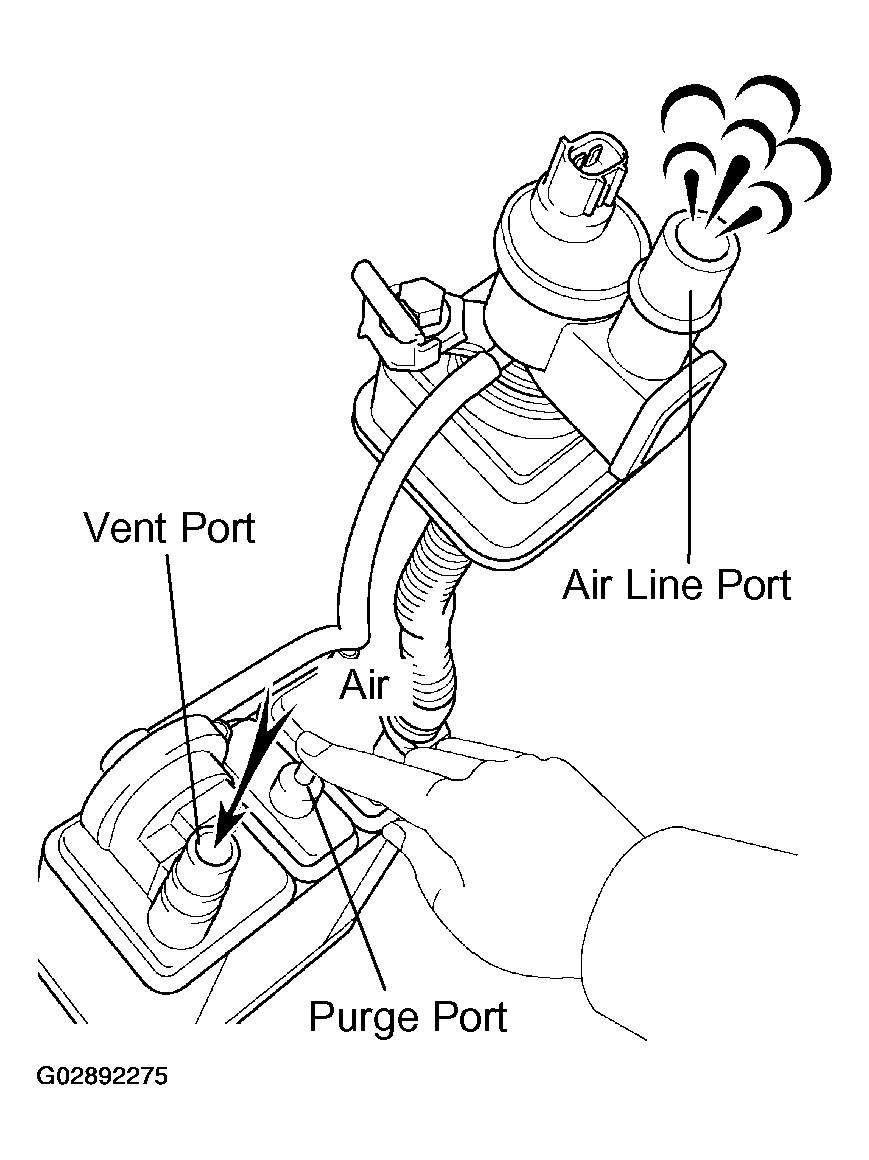

        Fig 16: Checking Air Flows From Air Line Port While Holding Purge Port Closed
        G02892275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. While holding the air line port closed, blow air (0.39 kPa, 4.0 gf/cm2 , 0.06 psi) into the vent port, and check that air flows from the purge port.

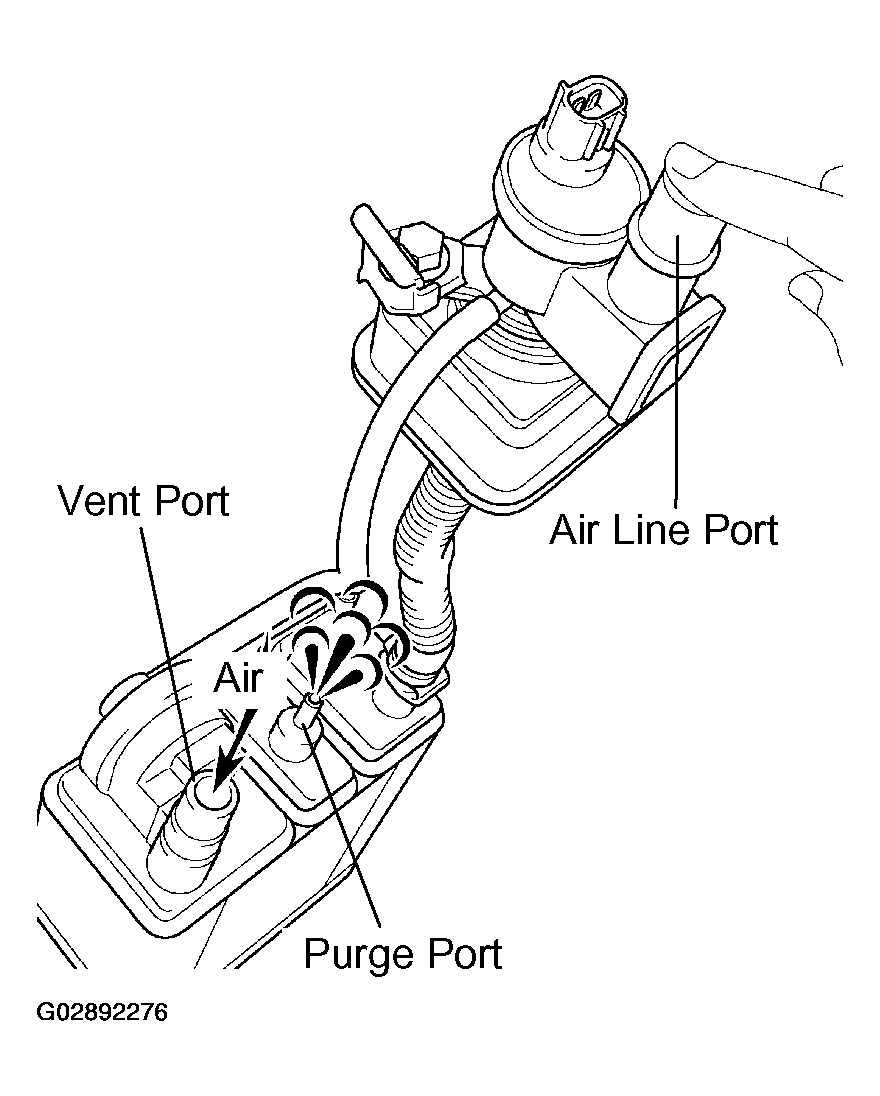

        Fig 17: Checking Air Flows From Purge Port While Holding Air Line Port Closed
        G02892276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. While holding the air line port closed, apply vacuum (3.43 kPa, 25.7 gf/cm2 , 1.01 psi) to the vent port, and check that air is sucked in from the purge port.

        If operation is not as specified, replace the charcoal canister.

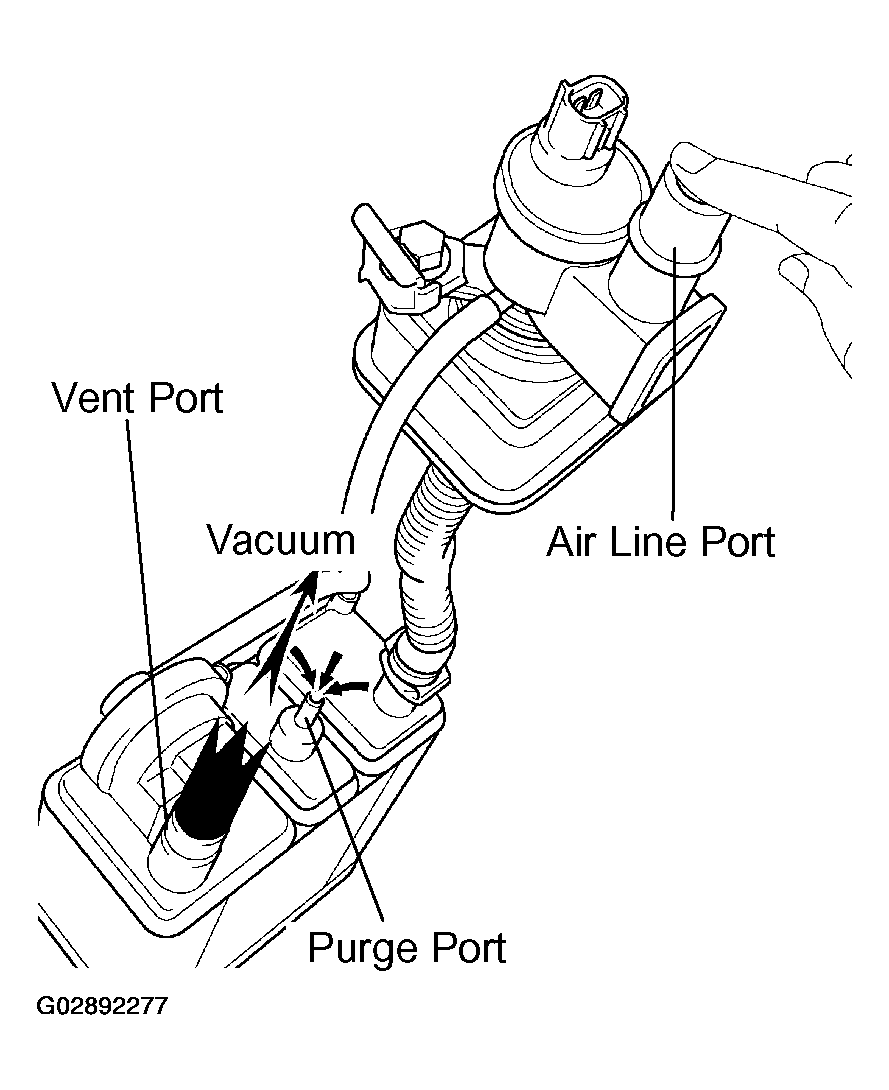

        Fig 18: Checking Air Is Sucked In From Purge Port While Holding Air Line Port Closed
        G02892277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Inspect air tightness.
      1. While holding the vent and air line ports closed, apply vacuum (3.43 kPa, 25.7 gf/cm2 , 1.01 psi) to the purge port, and check that the vacuum is maintained for 1 minute.

        HINT:

        In order to maintain air tightness, this check should be performed with the CCV terminal port held closed by your fingers. If operation is not as specified, replace the charcoal canister.

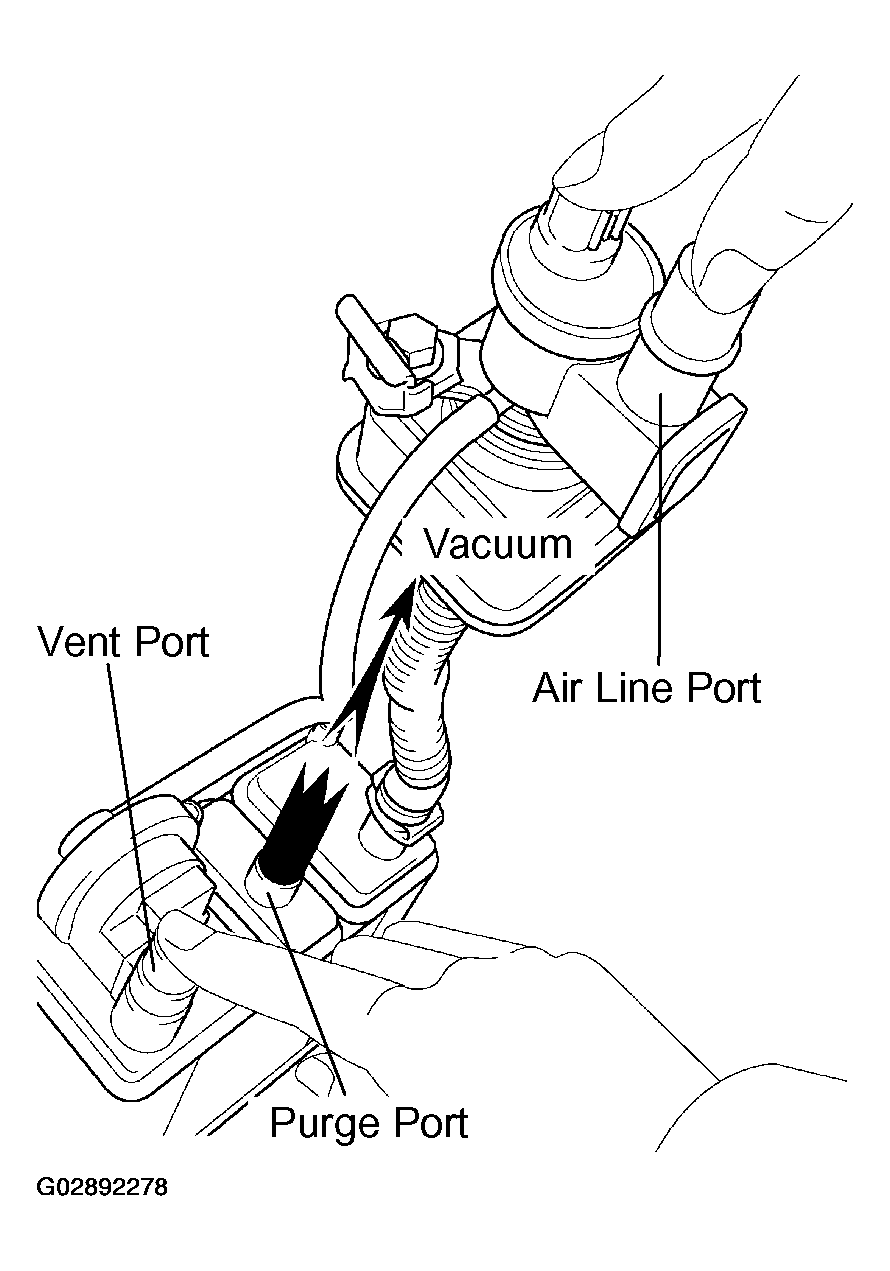

        Fig 19: Inspecting Air Tightness Of Charcoal Canister
        G02892278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Inspect the diaphragm.
      1. Remove the air hose between ports A and B.
      2. While holding the vent, purge and air line ports closed, apply vacuum (1.42 kPa, 11 mmHg, 0.42 in.Hg) into port A, and check that air is sucked in from port B.

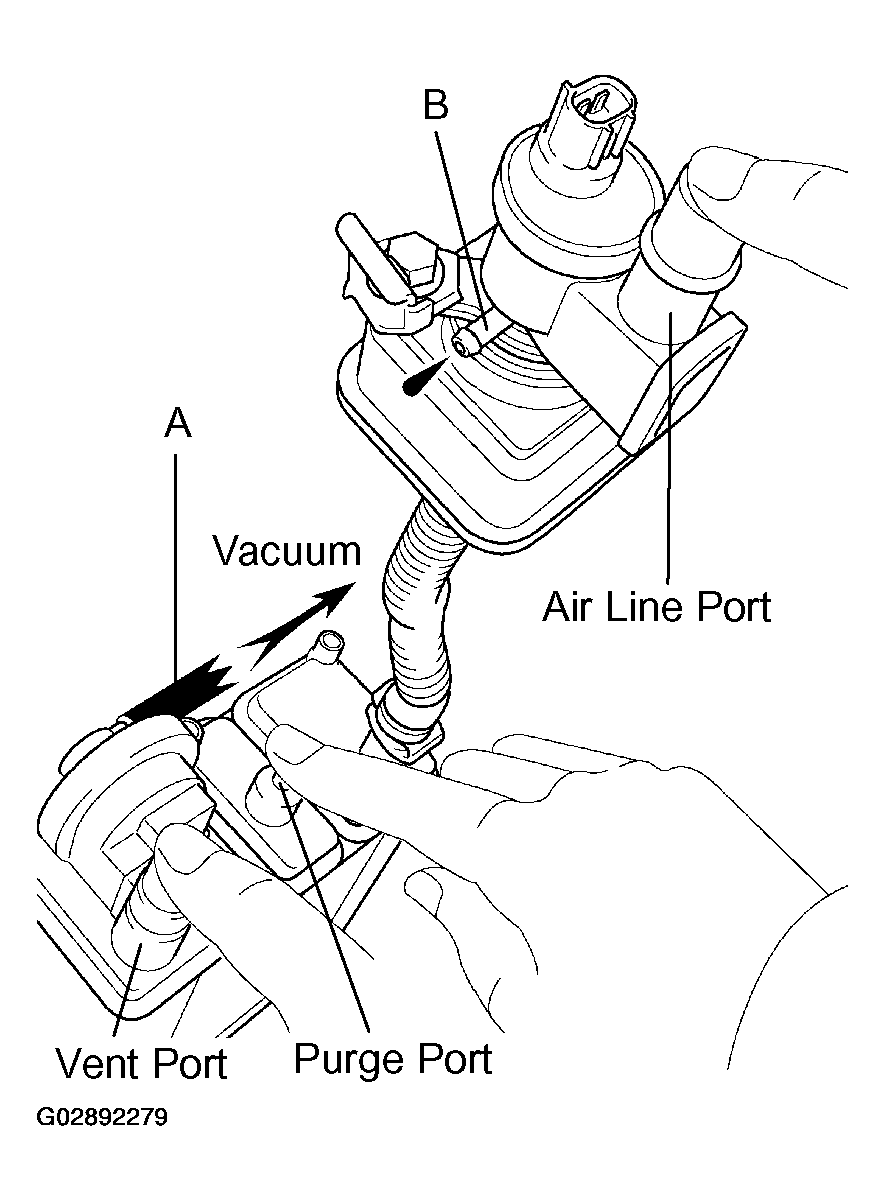

        Fig 20: Checking Air Is Sucked In From Port B While Holding Vent, Purge And Air Line Ports Closed
        G02892279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. While holding the vent, purge and air line ports closed, apply vacuum (1.42 kPa, 11 mmHg, 0.42 in.Hg) into port A, and measure how long it takes for vacuum to drop.

        Vacuum drop time: 10 sec. or more

        If operation is not as specified, replace the charcoal canister.

      4. Reinstall the air hose between ports A and B.

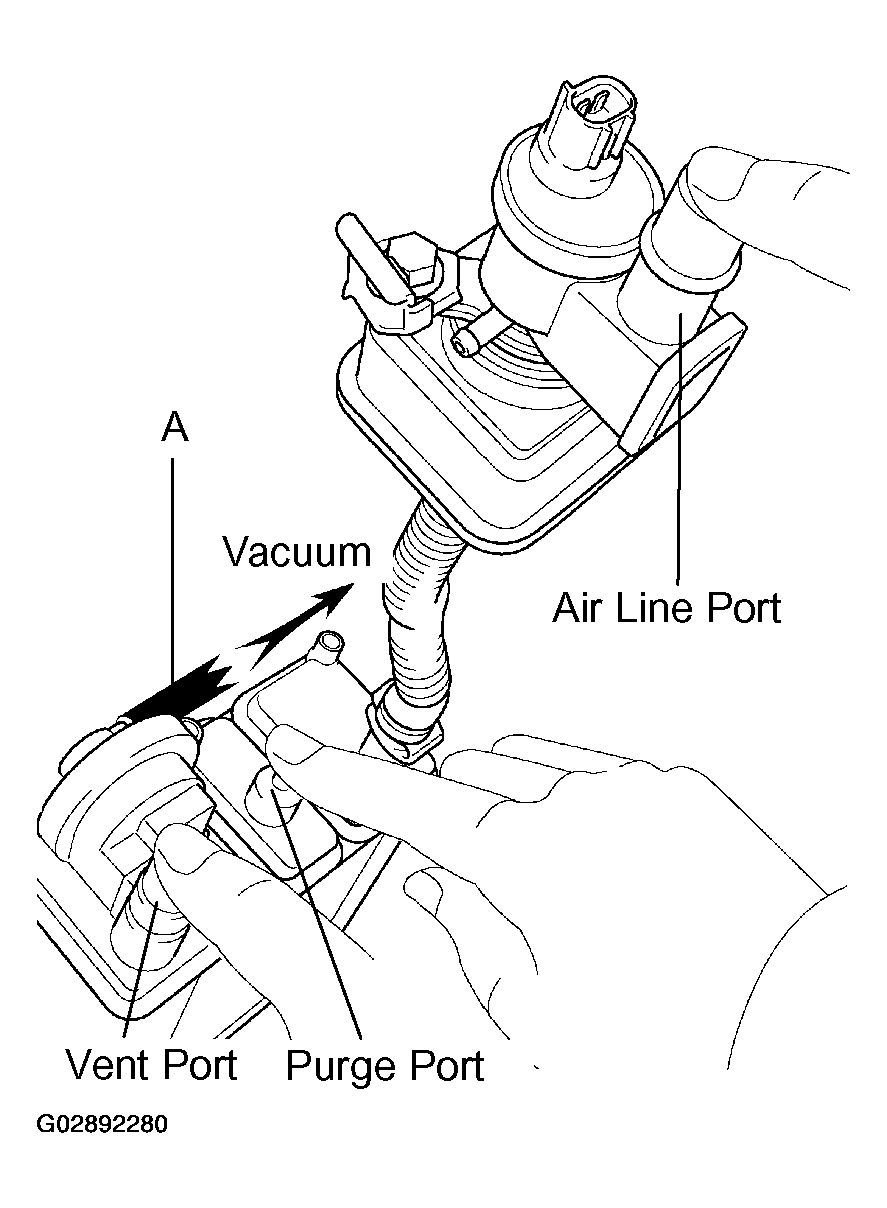

        Fig 21: Measuring Vacuum Drop Time
        G02892280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Check the VSV for open circuit.
      1. Measure the resistance between the terminals.

        Standard:

        VSV TERMINALS RESISTANCE SPECIFICATION

        Condition Specified Condition
        20°C (68°F) 25 to 30Ω
        100°C (212°F) 32 to 40Ω

        If the result is not as specified, replace the charcoal canister.

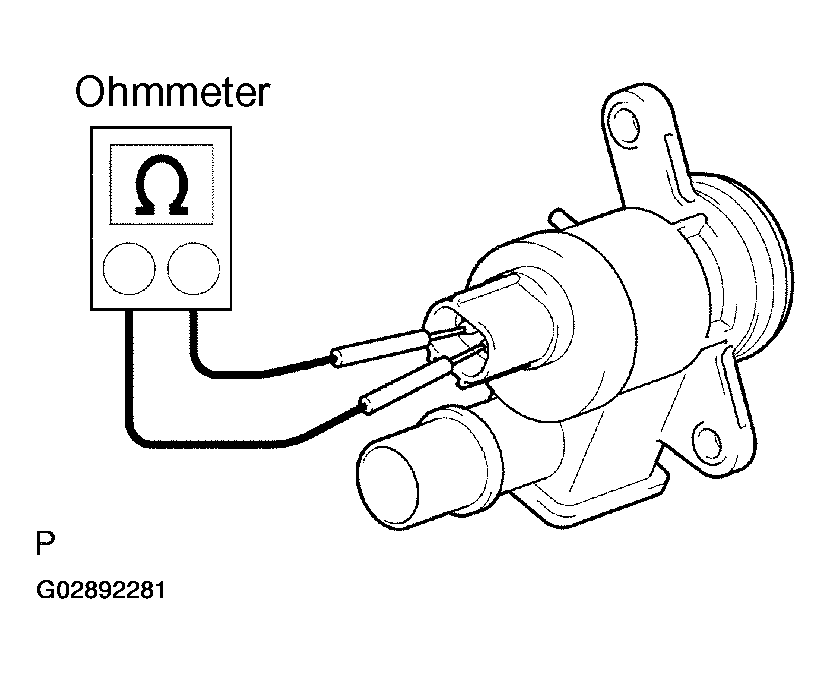

        Fig 22: Measuring VSV Terminals Resistance
        G02892281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Check VSV operation.
      1. Check that air flows from port A to ports B and C.

        If the result is not as specified, replace the charcoal canister.

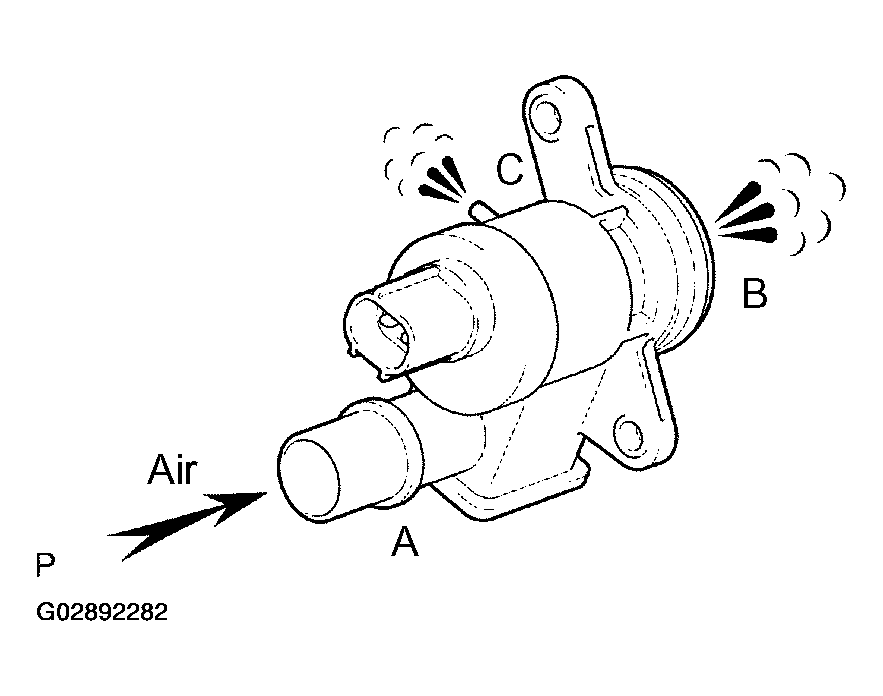

        Fig 23: Checking Air Flows From Port A To Ports B And C
        G02892282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Apply battery positive voltage across the terminals.
        Fig 24: Applying Battery Positive Voltage Across VSV Terminals
        G02892283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Check that the valve is closed.

        If the result is not as specified, replace the charcoal canister.

        NOTE: Incorrect electrode connection causes damage to the VSV. Pay due attention when connecting the lead wire.
      4. Check that air does not flow from port A to port B.
      5. Check that air flows from port A to port C.

        If the result is not as specified, replace the charcoal canister.

        NOTE: Incorrect electrode connection causes damage to the VSV. Pay due attention when connecting the lead wire.
        Fig 25: Checking Air Does Not Flow From Port A To Port B And Flows From Port A To Port C
        G02892284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT VACUUM SWITCHING VALVE ASSY FOR EVAP
    1. Check the VSV for open circuit.
      1. Measure the resistance.

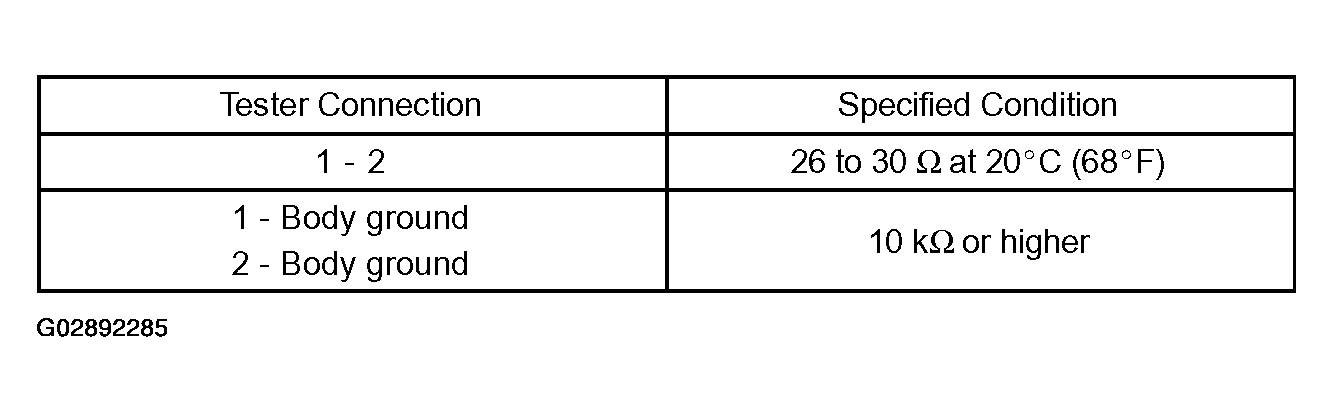

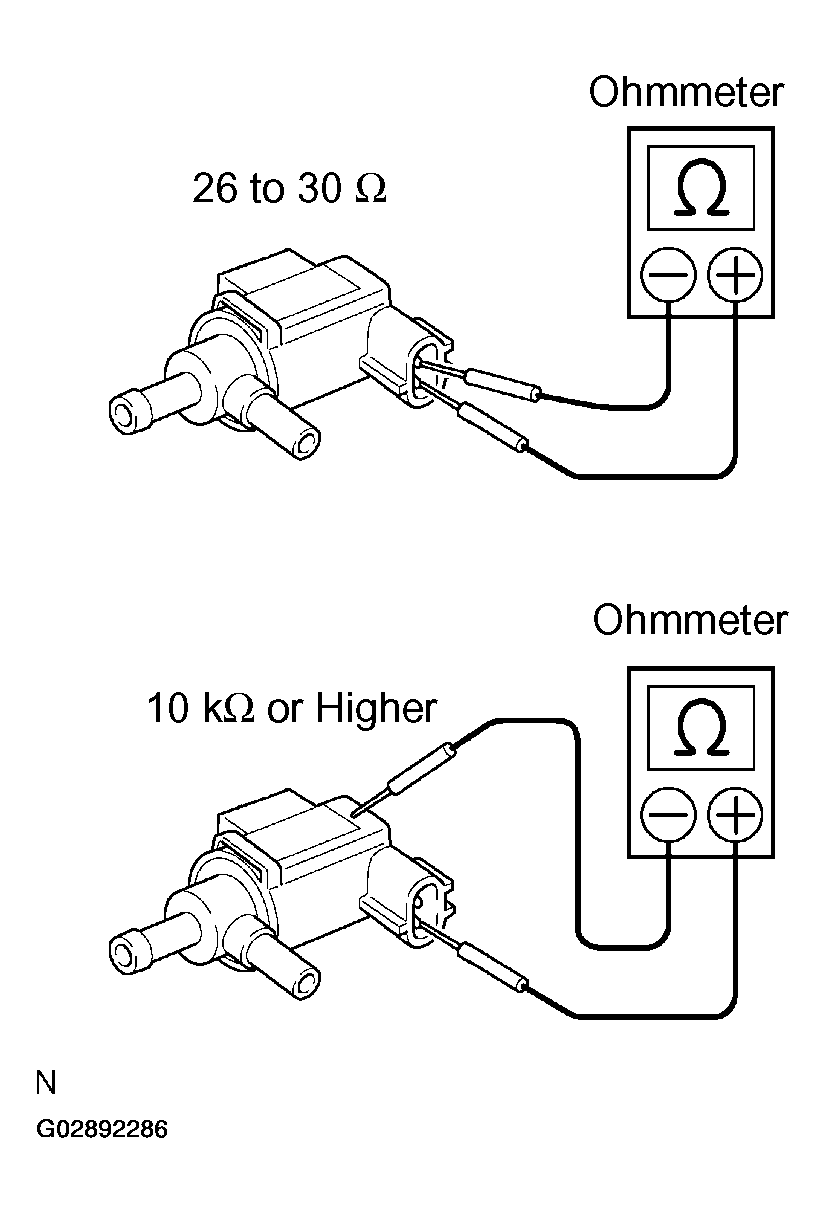

        Fig 26: Vacuum Switching Valve Resistance Specification
        G02892285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        If the resistance is not as specified, replace the VSV assy.

        Fig 27: Measuring Vacuum Switching Valve Resistance Between Terminals & Terminals To Body Ground
        G02892286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check VSV operation.
      1. Check that air does not flow from the port as shown in the illustration.

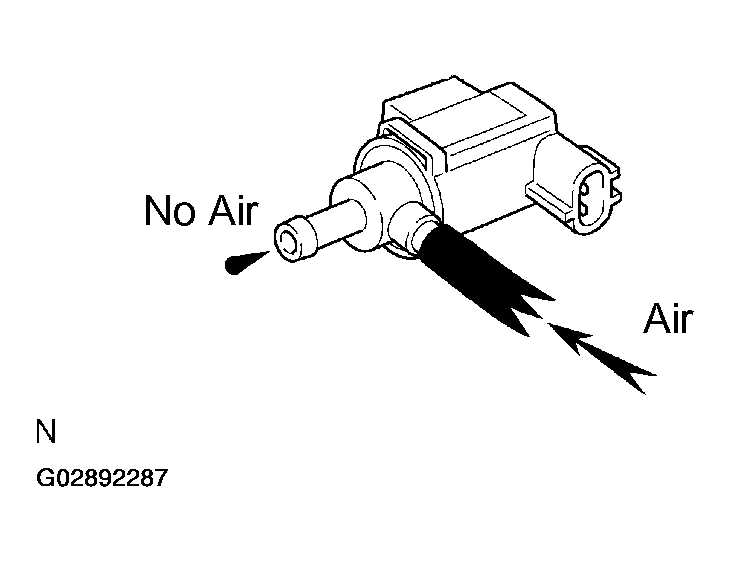

        Fig 28: Checking Air Does Not Flow From Port
        G02892287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Apply battery positive voltage across the terminals.
      3. Check that air flows from the ports.

        If the result is not as specified, replace the VSV assy.

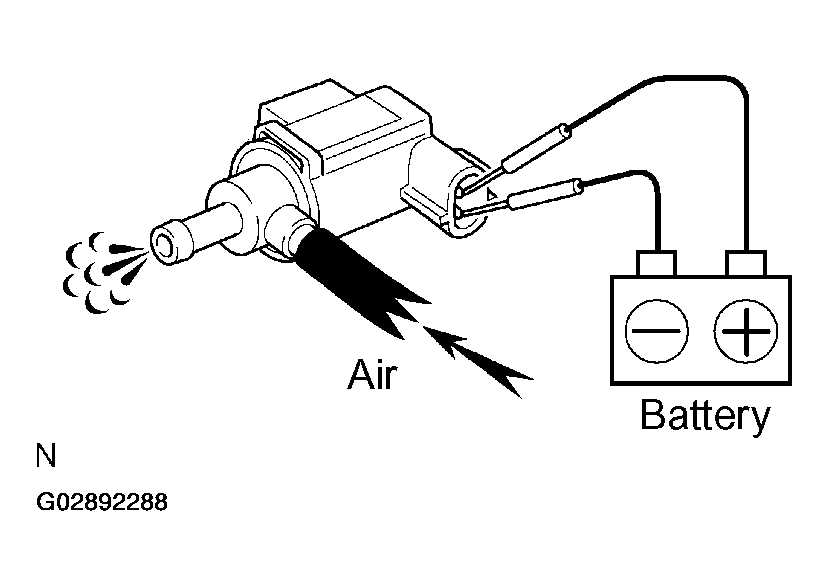

        Fig 29: Checking Air Flows From Ports
        G02892288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSPECT AIR FUEL RATIO SENSOR
    1. Measure the resistance between terminals 1 (HT) and 2 (+B) and 1 (HT) and 4 (AF-).

      Standard:

      AIR FUEL RATIO SENSOR CONNECTOR TERMINAL RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      1 (HT) - 2 (+B) 20°C(68°F) 1.8 to 3.4 Ω
      1 (HT) - 4 (AF-) - 10 kΩ or higher

      If the result is not as specified, replace the sensor.

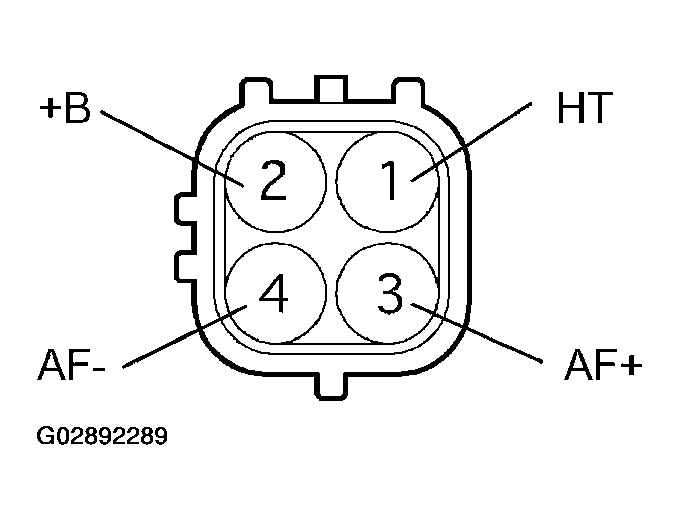

      Fig 30: Identifying Air Fuel Ratio Sensor Connector Terminals
      G02892289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSPECT HEATED OXYGEN SENSOR (BANK 1 SENSOR 2)
    1. Measure the resistance between terminals 1 (HT) and 2 (+B).

      Standard:

      HEATED OXYGEN SENSOR CONNECTOR TERMINAL RESISTANCE SPECIFICATION

      Condition Specified Condition
      20°C (68°F) 11 to 16Ω
      800°C (1,472°F) 23 to 32Ω

      If the result is not as specified, replace the sensor.

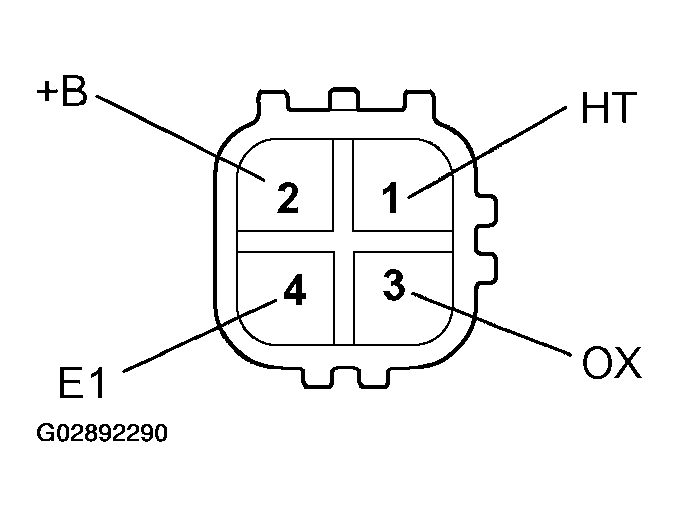

      Fig 31: Identifying Heated Oxygen Sensor Connector Terminals
      G02892290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
