Section 596 (Air Mix Servomotor): Inspection
WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE AIR MIX SERVOMOTOR

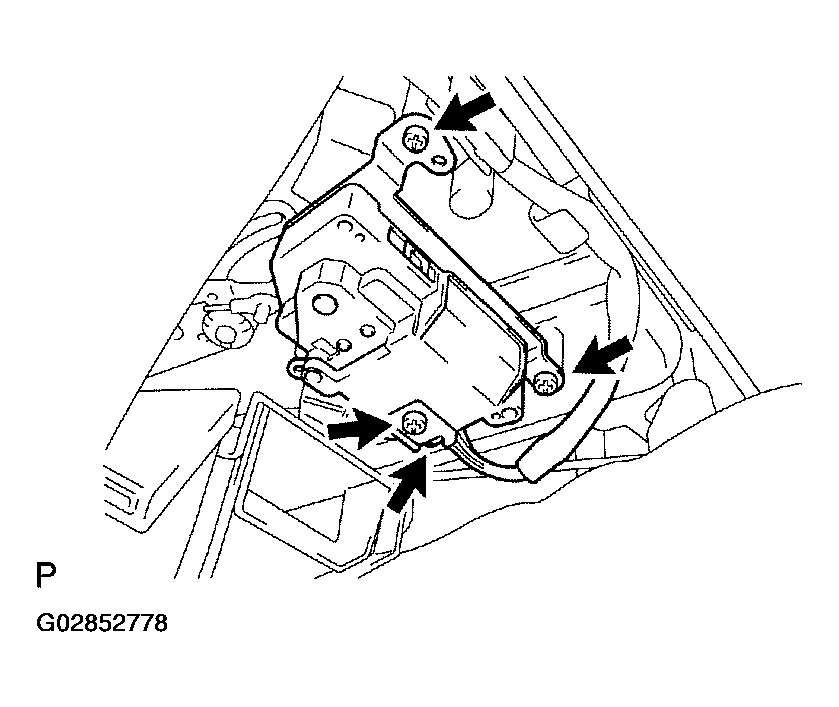

- Disconnect the connector.
- Remove the 3 screws and servomotor.
- INSPECT AIR MIX DAMPER POSITION SERVOMOTOR (See DTC 31 FRONT AIR MIX DAMPER POSITION SENSOR CIRCUIT )
- INSPECT AIR MIX SERVOMOTOR CIRCUIT (See DTC 41 FRONT AIR MIX DAMPER CONTROL SERVOMOTOR CIRCUIT )
- INSTALL AIR MIX SERVOMOTOR
