Terminals Of Ecu

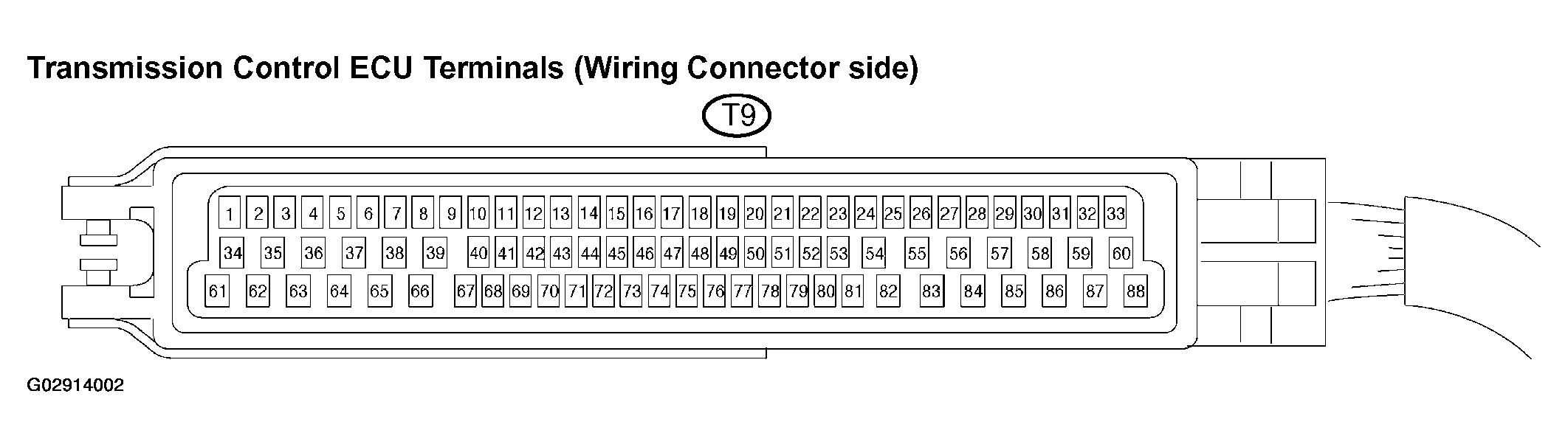

Fig 1: Identifying ECU Connector Terminals
G02914002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

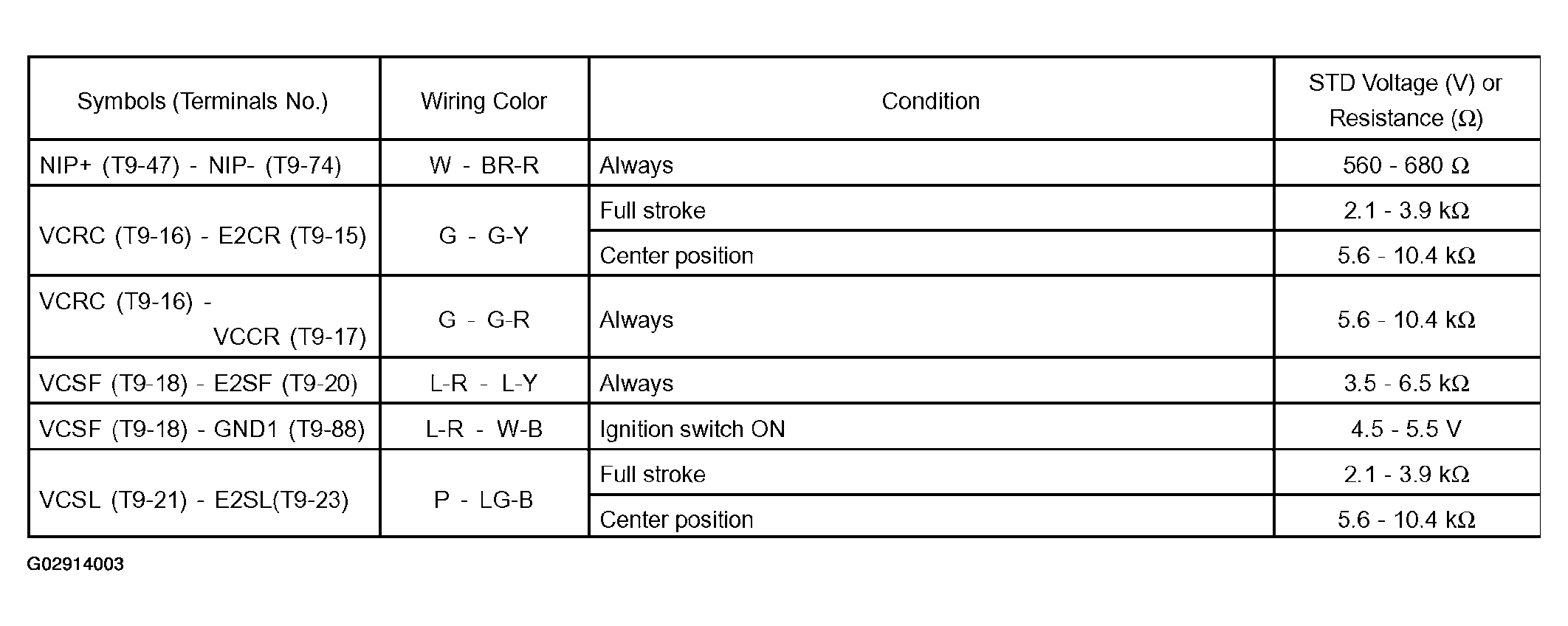

Fig 2: Displaying ECU Terminals Description Table
G02914003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
