Diagnostic Trouble Code Table
If a DTC is displayed during the DTC check, check the circuit listed for that code in the table below and proceed to the page given.

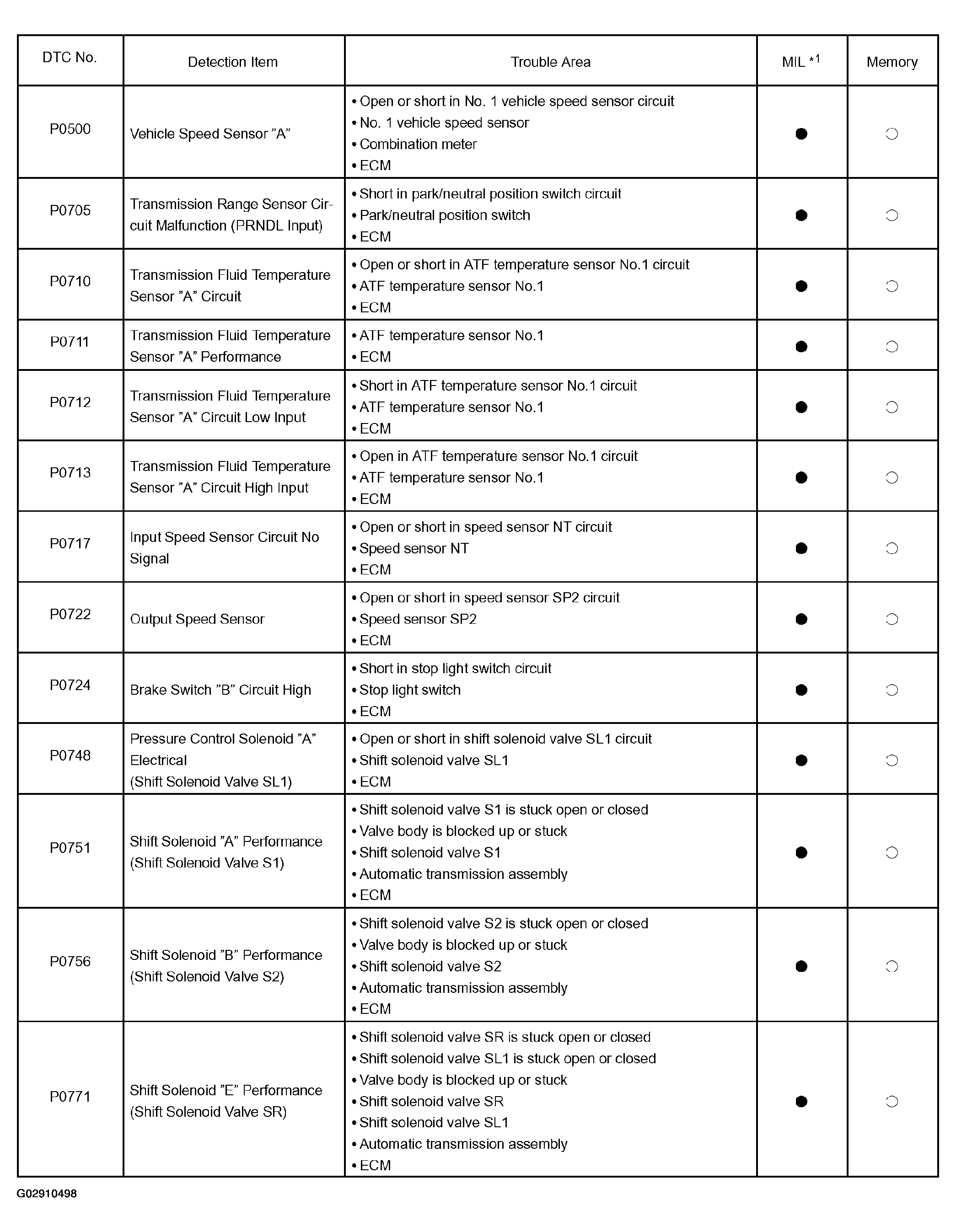

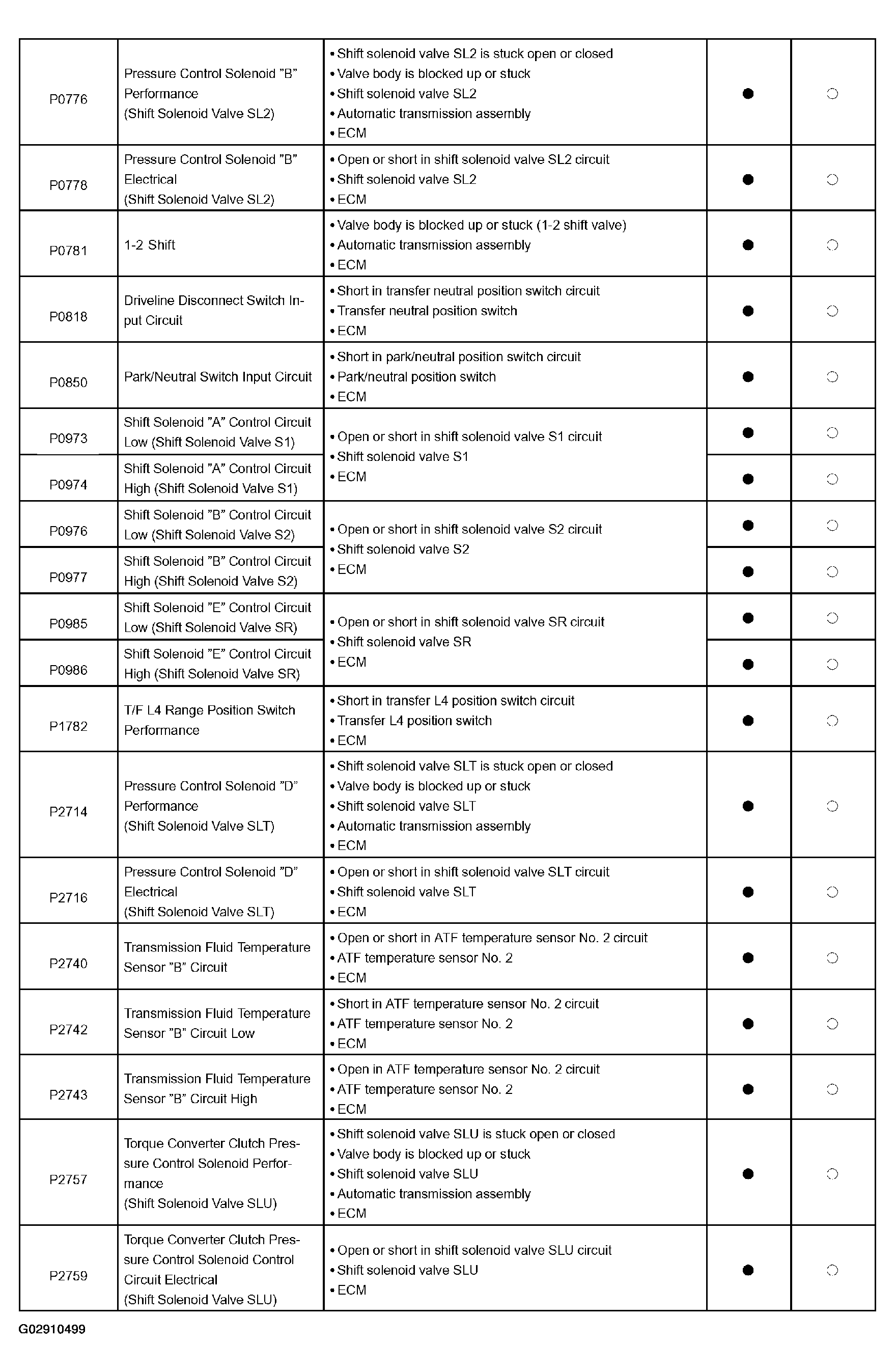

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC P0705, P0850 | TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION (PRNDL INPUT) & PARK/NEUTRAL SWITCH INPUT CIRCUIT |
| DTC P0710, P0712, P0713 | TRANSMISSION FLUID TEMPERATURE SENSOR "A" CIRCUIT LOW/HIGH |
| DTC P0711 | TRANSMISSION FLUID TEMPERATURE SENSOR "A" PERFORMANCE |
| DTC P0717 | INPUT SPEED SENSOR CIRCUIT NO SIGNAL |
| DTC P0722 | OUTPUT SPEED SENSOR CIRCUIT NO SIGNAL |
| DTC P0724 | BRAKE SWITCH "B" CIRCUIT HIGH |
| DTC P0748 | PRESSURE CONTROL SOLENOID "A" ELECTRICAL (SHIFT SOLENOID VALVE SL1) |
| DTC P0751 | SHIFT SOLENOID "A" PERFORMANCE (SHIFT SOLENOID VALVE S1) |
| DTC P0756 | SHIFT SOLENOID "B" PERFORMANCE (SHIFT SOLENOID VALVE S2) |
| DTC P0771 | SHIFT SOLENOID "E" PERFORMANCE (SHIFT SOLENOID VALVE SR) |
| DTC P0776 | PRESSURE CONTROL SOLENOID "B" PERFORMANCE (SHIFT SOLENOID VALVE SL2) |
| DTC P0778 | PRESSURE CONTROL SOLENOID "B" ELECTRICAL (SHIFT SOLENOID VALVE SL2) |
| DTC P0781 | 1-2 SHIFT |
| DTC P0818 | DRIVELINE DISCONNECT SWITCH INPUT CIRCUIT |
| DTC P0973, P0974 | SHIFT SOLENOID "A" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE S1) |
| DTC P0976, P0977 | SHIFT SOLENOID "B" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE S2) |
| DTC P0985, P0986 | SHIFT SOLENOID "E" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE SR) |
| DTC P1782 | T/F L4 RANGE POSITION SWITCH PERFORMANCE |
| DTC P2714 | PRESSURE CONTROL SOLENOID "D" PERFORMANCE (SHIFT SOLENOID VALVE SLT) |
| DTC P2716 | PRESSURE CONTROL SOLENOID "D" ELECTRICAL (SHIFT SOLENOID VALVE SLT) |
| DTC P2740, P2742, P2743 | TRANSMISSION FLUID TEMPERATURE SENSOR "B" CIRCUIT LOW/HIGH |
| DTC P2757 | TORQUE CONVERTER CLUTCH PRESSURE CONTROL SOLENOID PERFORMANCE (SHIFT SOLENOID VALVE SLU) |
| DTC P2759 | TORQUE CONVERTER CLUTCH PRESSURE CONTROL SOLENOID CONTROL CIRCUIT ELECTRICAL (SHIFT SOLENOID VALVE SLU) |
