Power Tilt And Power Telescopic Steering Column: Components

Fig 1: Removing/Installing Power Tilt & Power Telescopic Steering Column
G02904210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

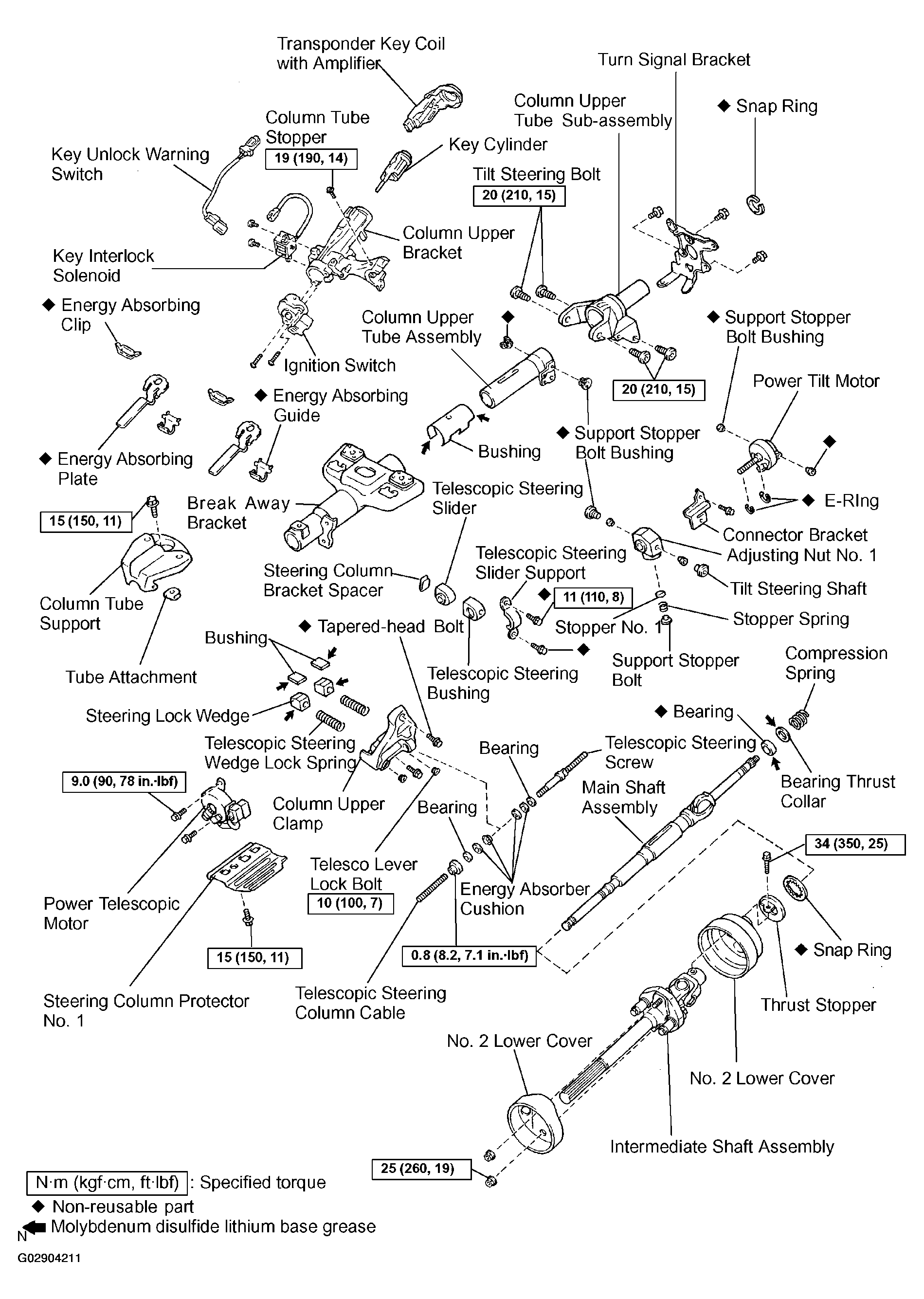

Fig 2: Exploded View Of Steering Components
G02904211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
