Power Steering Gear: Installation

Torque the 2 new gear assembly set bolts, nuts and washers.

1. Torque: 120 N.m (1,250 kgf.cm, 89 ft.lbf)

HINT:

Slide the gear assembly to the right side, slide the gear assembly to the left side and position it.

1. Screw the lock nut and tie rod end onto the rack end until the matchmarks are aligned.
2. After adjusting toe-in, torque the nut (See INSPECTION ).
   1. Torque: 55 N.m (560 kgf.cm, 41 ft.lbf)

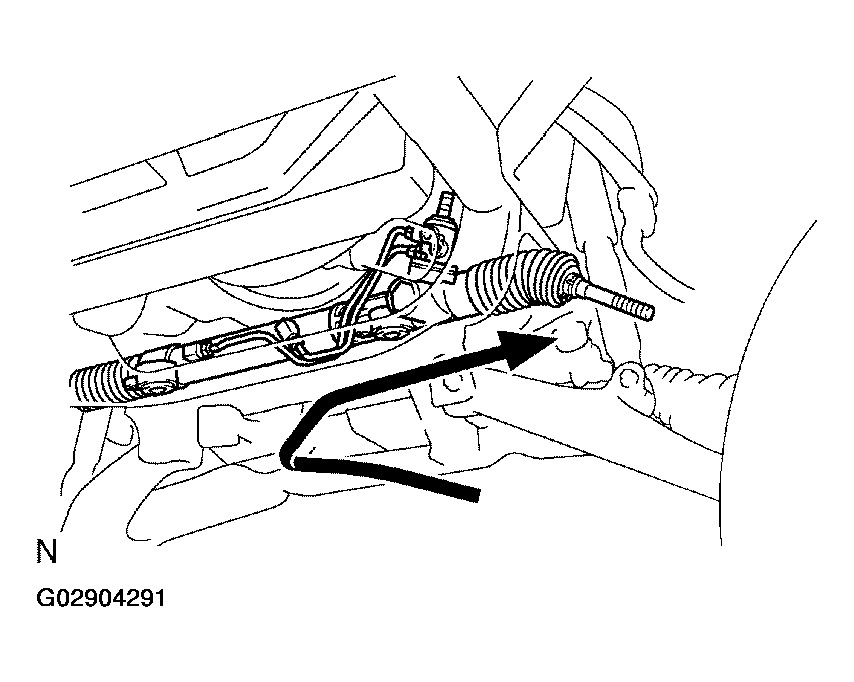

   Fig 1: Installing PS Gear Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque the bolt.

1. Torque: 18 N.m (180 kgf.cm, 13 ft.lbf)

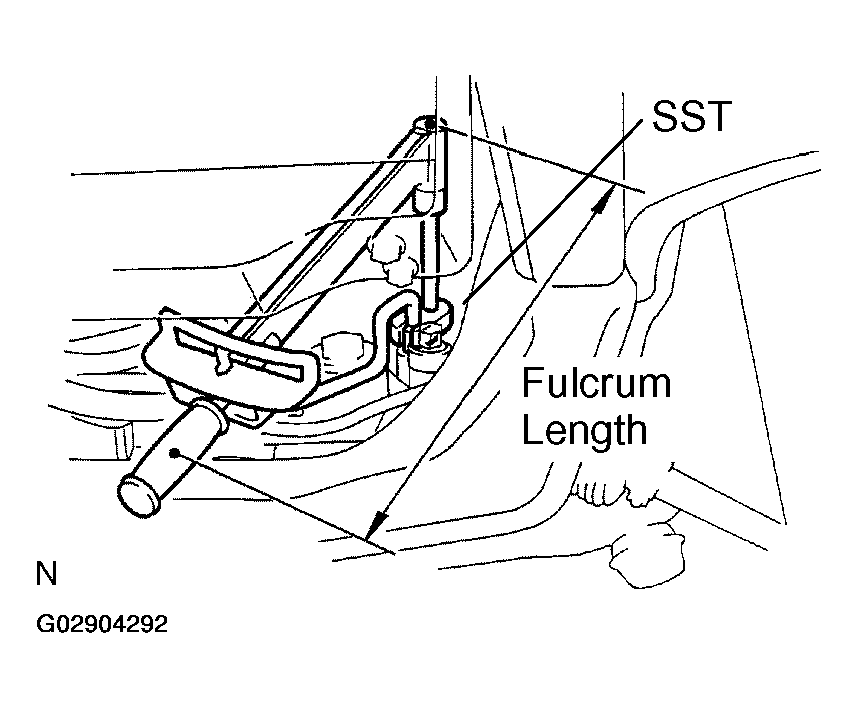

Fig 2: Connecting Return Tube

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST, connect the tube.

1. SST 09023-38400
2. Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)

HINT:

• Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
• This torque value is effective in case that SST is parallel to a torque wrench.

Torque the union bolt with a new gasket.

HINT:

Make sure the stopper of the pressure feed tube touches the PS gear assembly as shown in Fig 3 , then torque the bolt.

1. Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

Fig 3: Locating Pressure Feed Tube Touching Stopper Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new O-ring.
2. Torque the 2 bolts and nut with the bracket.
   1. Torque: 18 N.m (180 kgf.cm, 13 ft.lbf)
3. Connect the 2 clips and hoses.

Tighten the 6 bolts.

Tighten the 7 bolts.

HINT:

Do it with the front of the vehicle jacked up.

1. Align the matchmarks on the wheel and steering column main shaft.
2. Temporarily tighten the wheel set nut.
3. Connect the connector.

1. Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)
