Problem Symptoms Table

Use Fig 1 to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in the order shown. If necessary, repair or replace these parts.

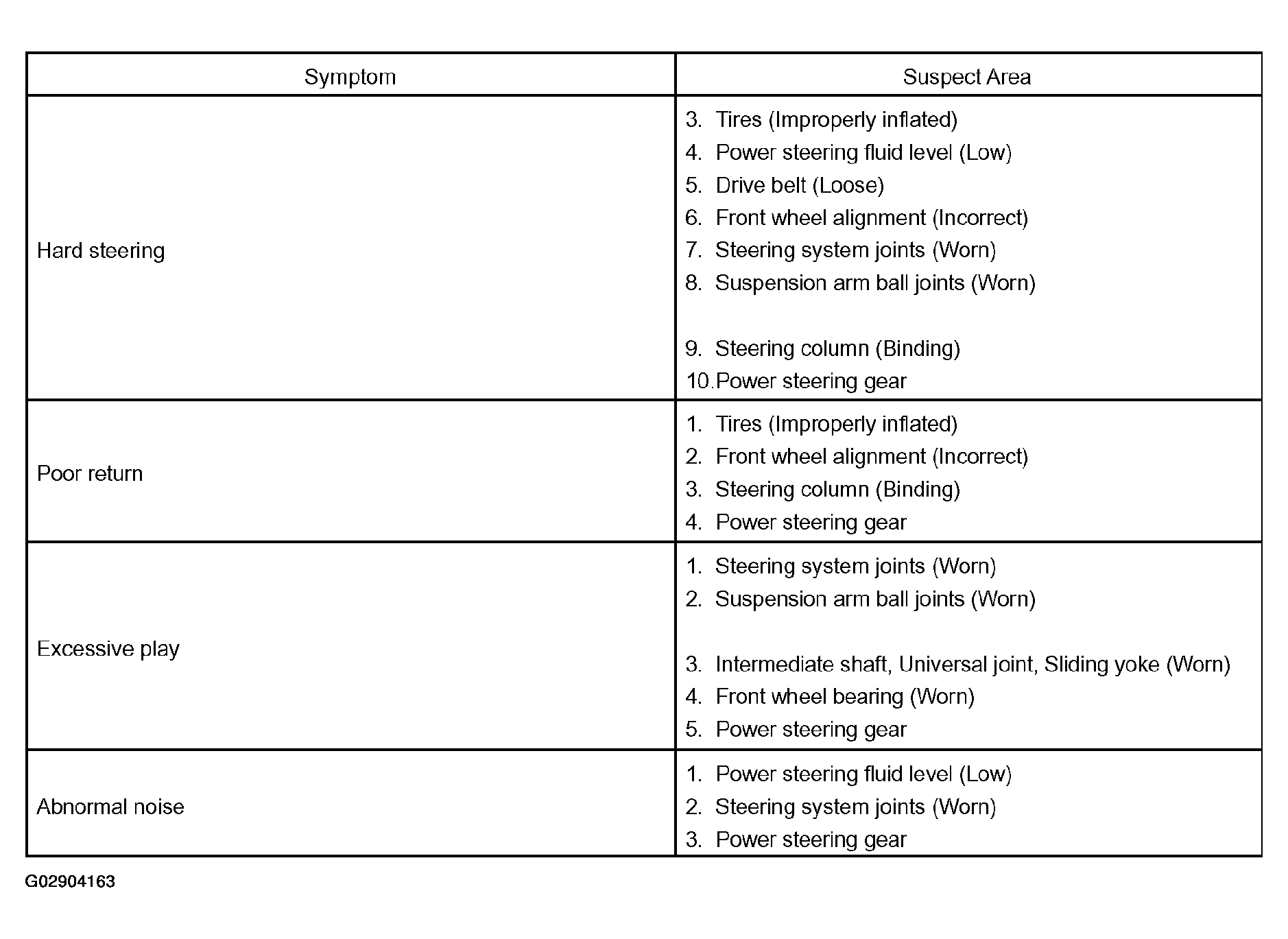

Fig 1: Identifying Problem Symptoms

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When the problem occurs on the power tilt and telescopic steering system, refer to POWER TILT AND POWER TELESCOPIC STEERING COLUMN .
