Back-Up Light System:
Back-Up Light System:

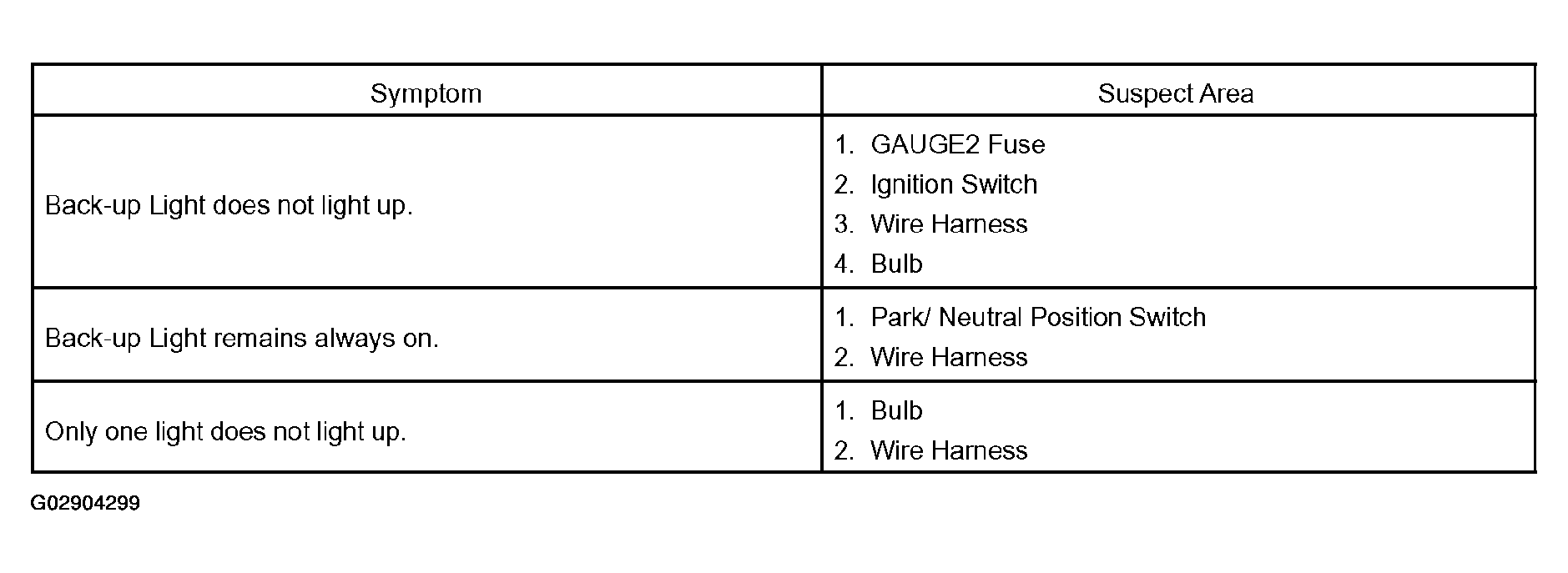

Fig 1: Identifying Back-Up Light System Troubleshooting
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
