RSCA Off Switch: Inspection

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT RSCA OFF INDICATOR LIGHT
    1. Turn the ignition switch to ON.
    2. Check that the RSCA OFF indicator light goes off after it comes on for 3 seconds.
    3. Check that the RSCA OFF indicator light comes on after pressing the RSCA OFF switch approx. 2 seconds.
  2. INSPECT RSCA OFF SWITCH CONTINUITY
    1. Remove the LWR instrument panel finish panel (See REMOVAL ).
    2. Remove the RSCA OFF switch from the LWR instrument panel finish panel.

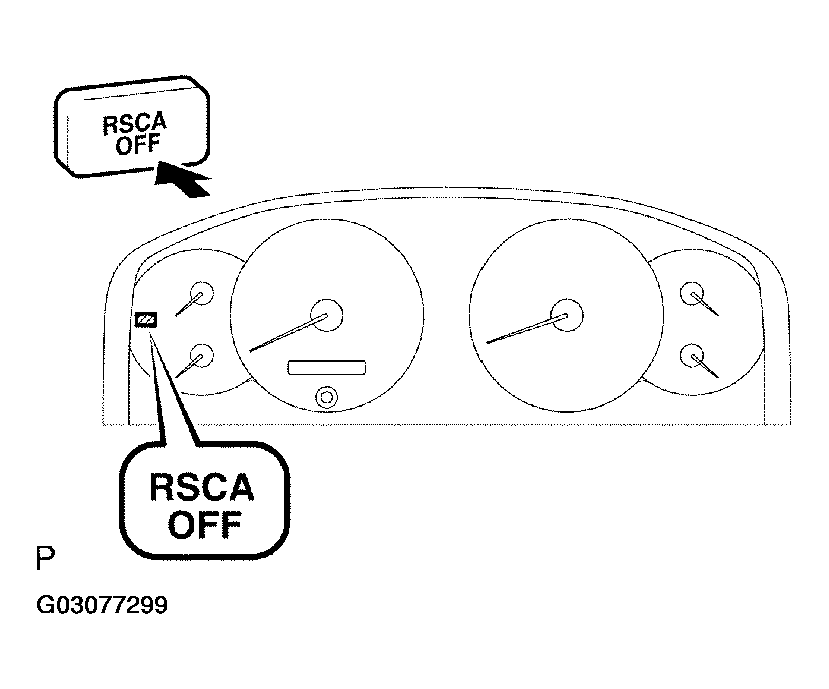

      Fig 1: Inspecting RSCA Off Indicator Light
      G03077299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Inspect the continuity between the each terminals.
      SWITCH POSITION AND TESTER CONNECTION SPECIFICATION

      Switch position Tester connection Specified condition
      OFF SW (3) <--> E (4) No continuity
      Hold ON SW (3) <--> E (4) Continuity
      Illumination ILL+(1) <--> ILL-(2) Continuity

      If continuity is not as specified, replace the RSCA OFF switch or bulb.

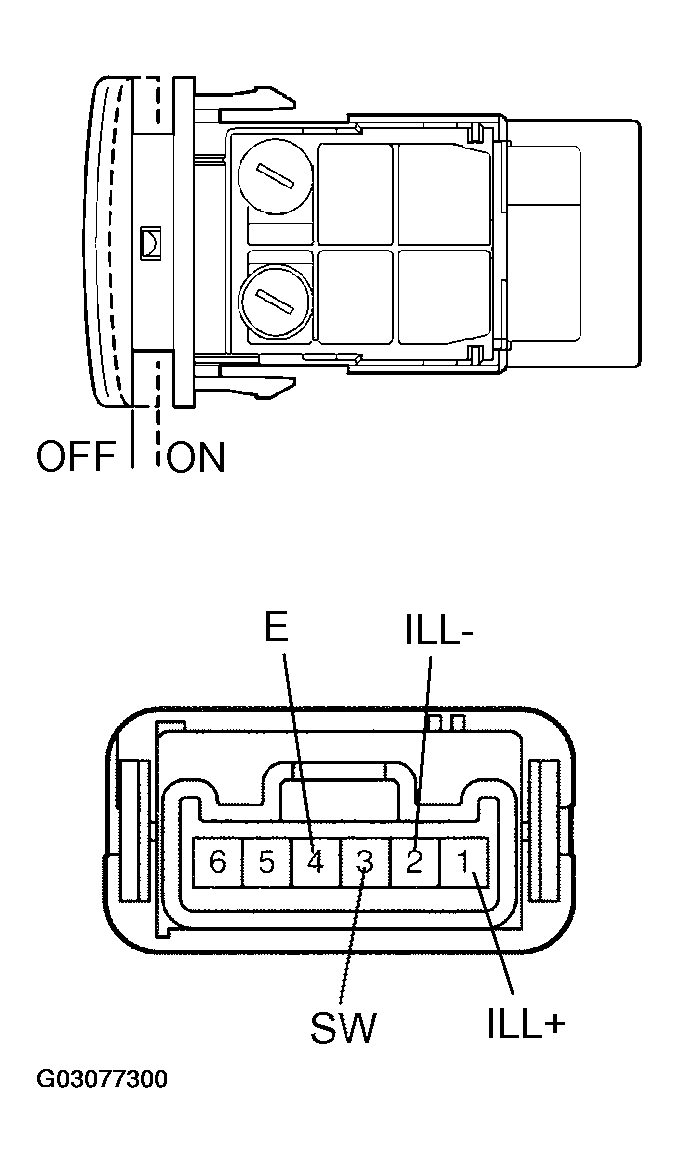

      Fig 2: Inspecting Continuity Between Each Terminals
      G03077300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
