Airbag Sensor Assembly: Installation

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Never use SRS parts from another vehicle. When replacing parts, replace them with new parts.
Never reuse the airbag sensor assembly involved in a collision when the airbag has deployed.
Never repair a sensor in order to reuse it.

HINT:

For step 2 to 6, refer to INSTALLATION .

INSTALL AIRBAG SENSOR ASSEMBLY
1. Install the airbag sensor assembly with the 3 bolts.
  Torque: 17.5 N.m (178 kgf.cm, 13 ft.lbf)
2. Connect the airbag sensor connectors.
  NOTE:
  - Connection of the connector is done after the sensor assembly has been installed.
  - Make sure the sensor assembly is installed with the specified torque.
  - If the sensor assembly has been dropped, or there are cracks, dents or other defects in the case, bracket or connector, replace the sensor assembly with a new one.
  - When installing the sensor assembly, take care that the SRS wiring does not interfere with other parts and is not pinched between other parts.
  - After installing, shake the sensor assembly to check that there is no looseness.
INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
INSTALL FRONT CONSOLE BOX
INSTALL REAR CONSOLE BOX WITH CONSOLE REAR END PANEL
INSTALL UPPER CONSOLE PANEL
INSTALL TRANSFER SHIFT LEVER KNOB
INSTALL FRONT SEAT (See INSTALLATION )
INSPECT SRS WARNING LIGHT (See PRE-CHECK )

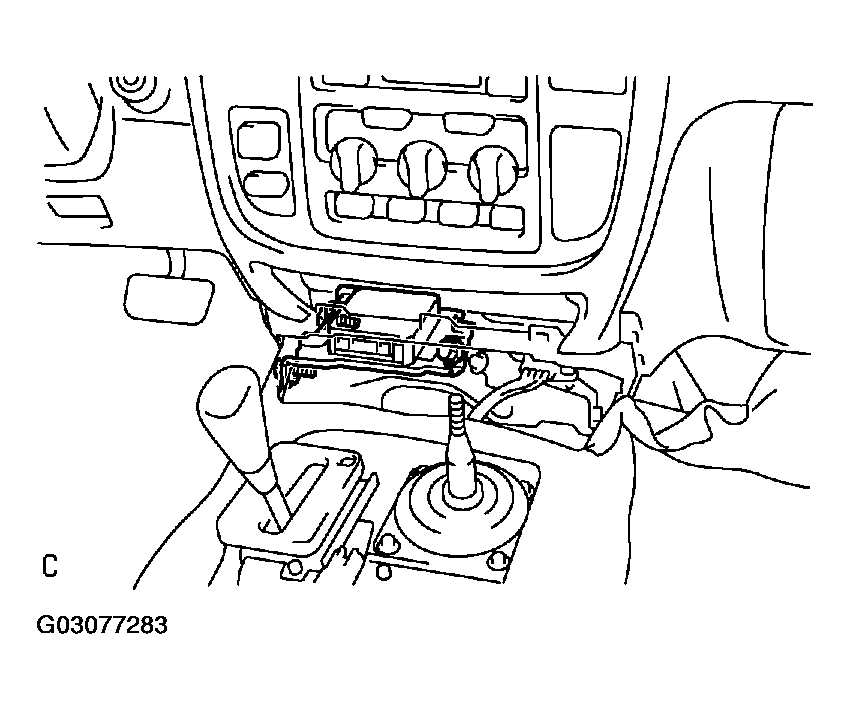

Fig 1: Installing Center Lower Instrument Cluster Finish Panel Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
