VSV For Canister Closed Valve (CCV): Inspection

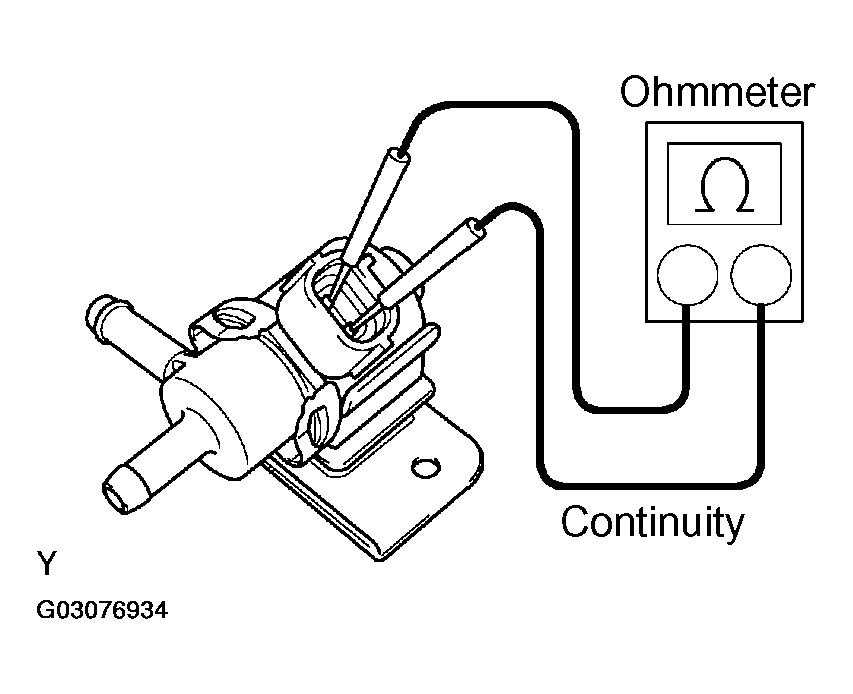

Using an ohmmeter, check that there is a continuity between the terminals.

Resistance: 24 - 30 Ω at 20°C (68°F)

If there is no continuity, replace VSV.

Fig 1: Inspecting VSV For Open Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

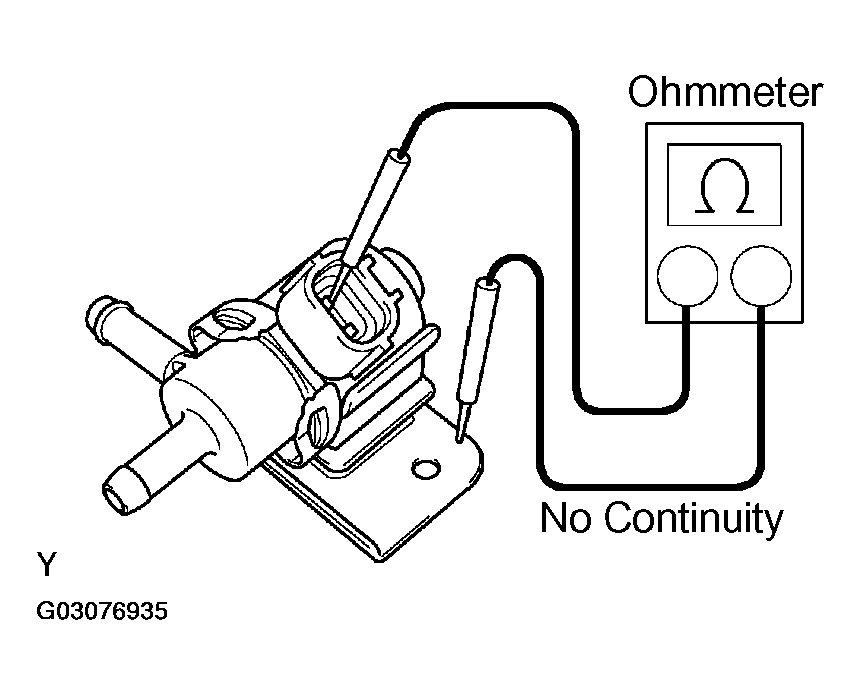

Using an ohmmeter, check that there is no continuity between each terminal and the body.

If there is a continuity, replace VSV.

Fig 2: Inspecting VSV For Ground

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

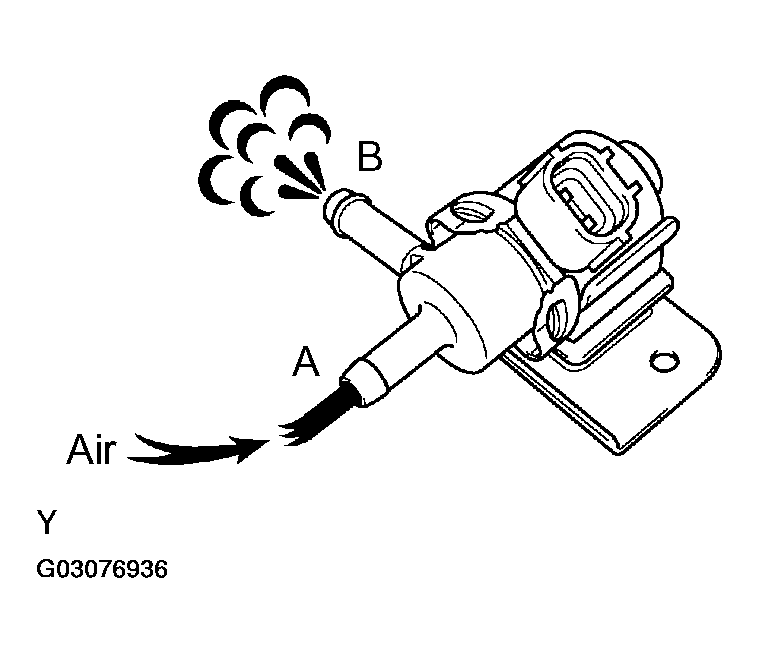

1. Check that air flows from the ports A to B.
   Fig 3: Inspecting VSV Operation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

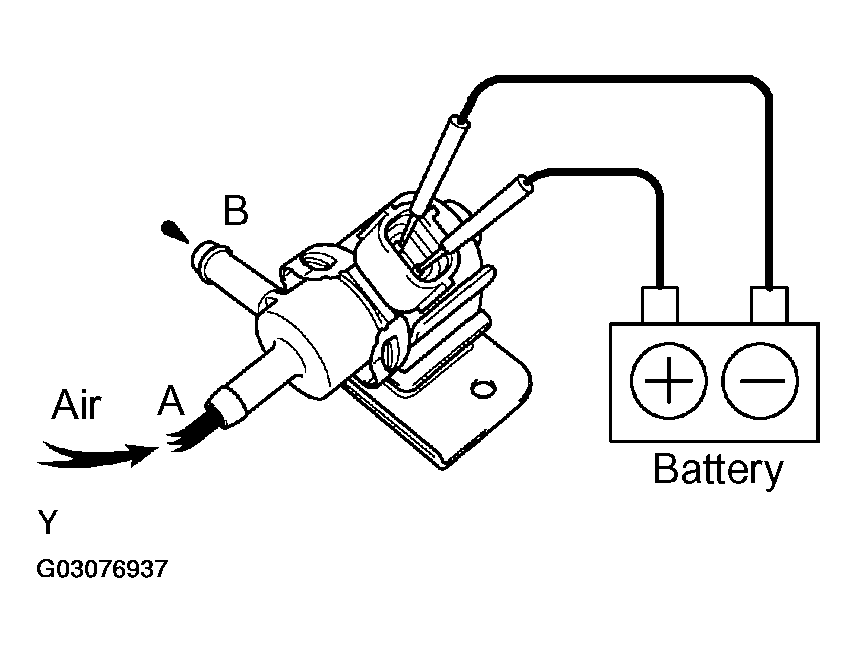

2. Apply the battery positive voltage across the terminals.
3. Check that air does not flow from the ports A to B.

   If operation is not as specified, replace VSV.
