Engine Mechanical Cylinder Block: Components

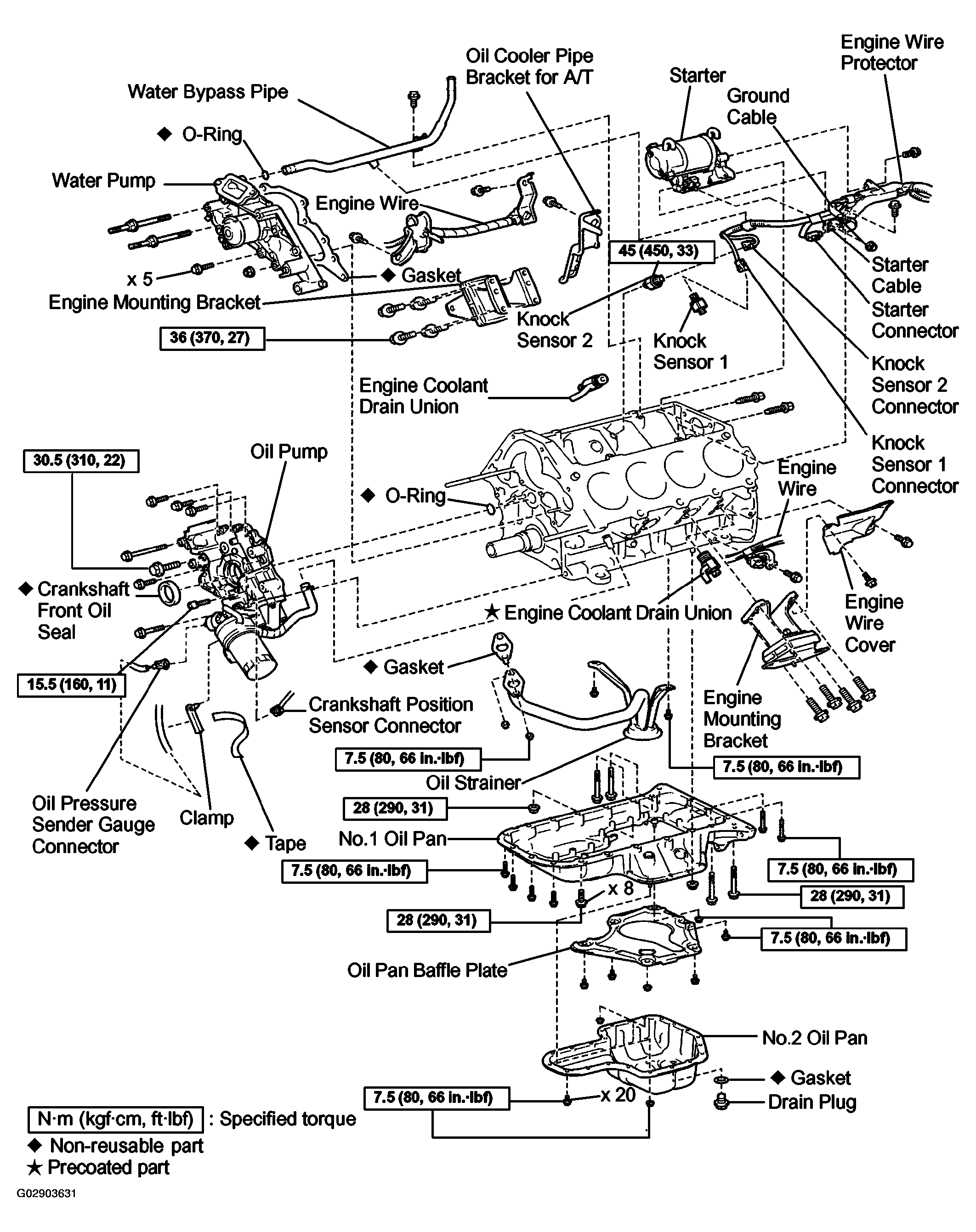

Fig 1: Exploded View Of Cylinder Block (1 Of 2)
G02903631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

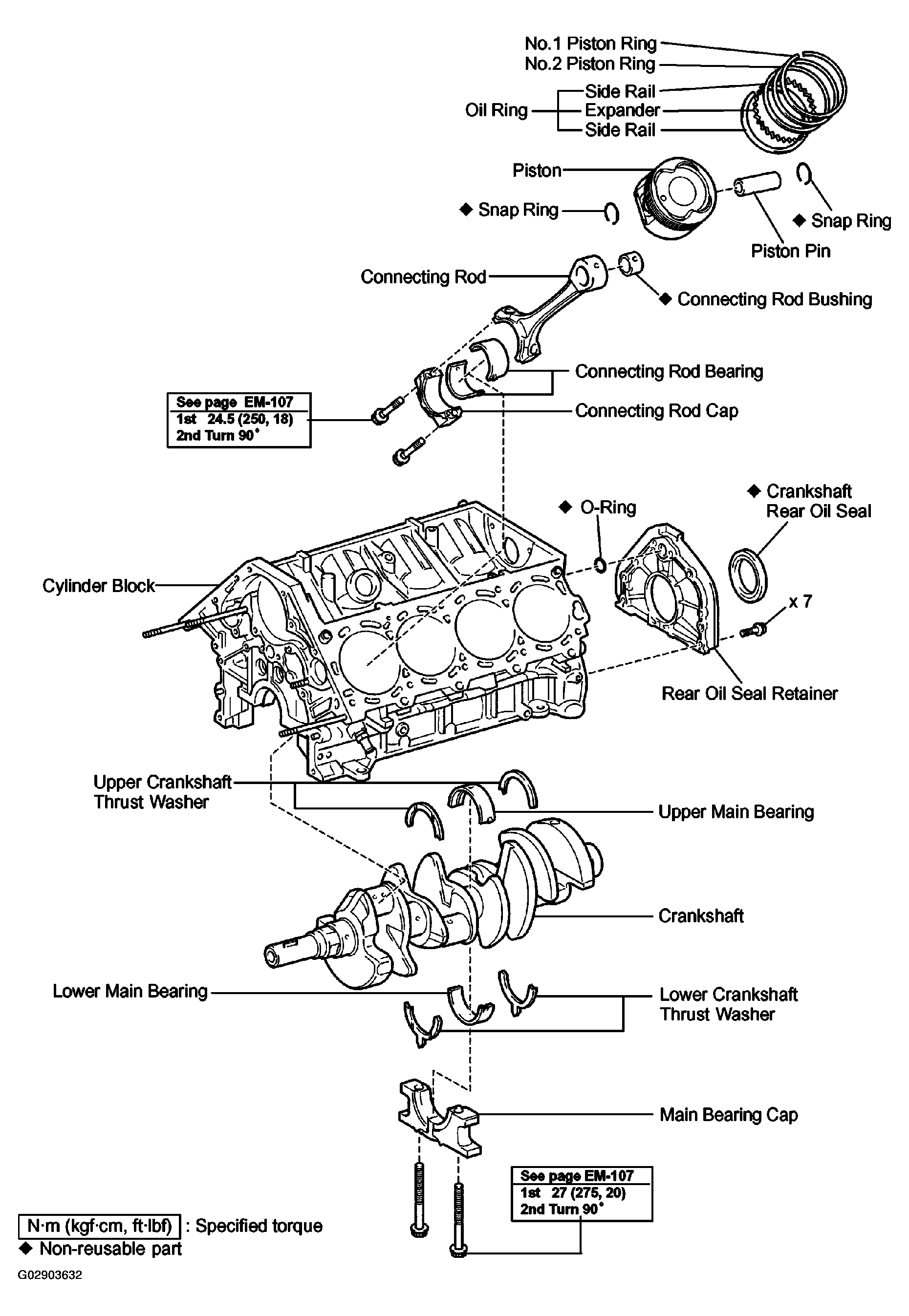

Fig 2: Exploded View Of Cylinder Block (2 Of 2)
G02903632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
