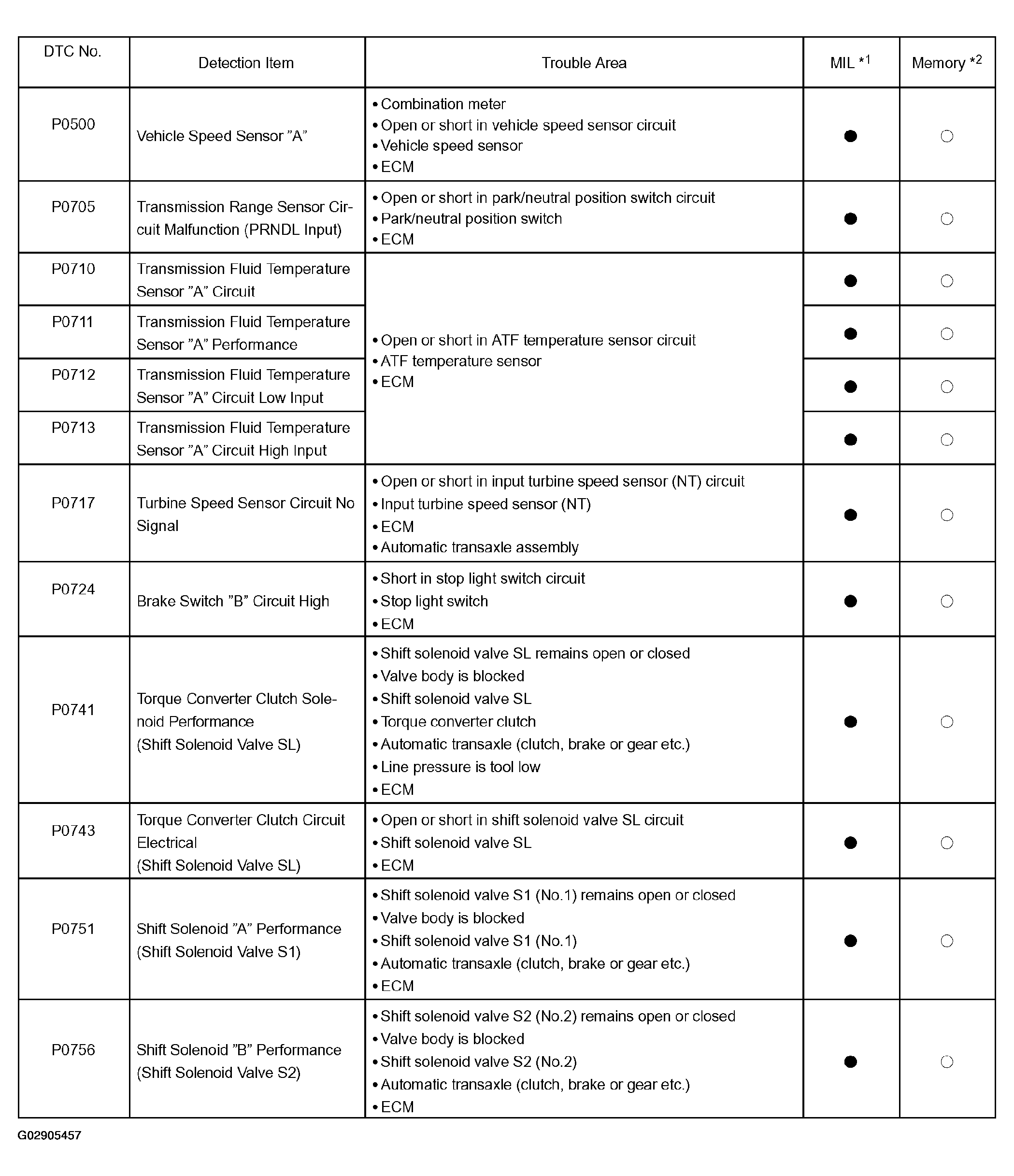

Diagnostic Trouble Code Chart
If a DTC is displayed during the DTC check, check the part listed for that code in the table below and proceed to the page given.
HINT:
- *1: cirf ... MIL (Malfunction Indicator Lamp) light up
- *2: "cir" mark means ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
- This DTC may be output when the clutch, brake and gear components etc. inside the automatic transaxle are damaged.

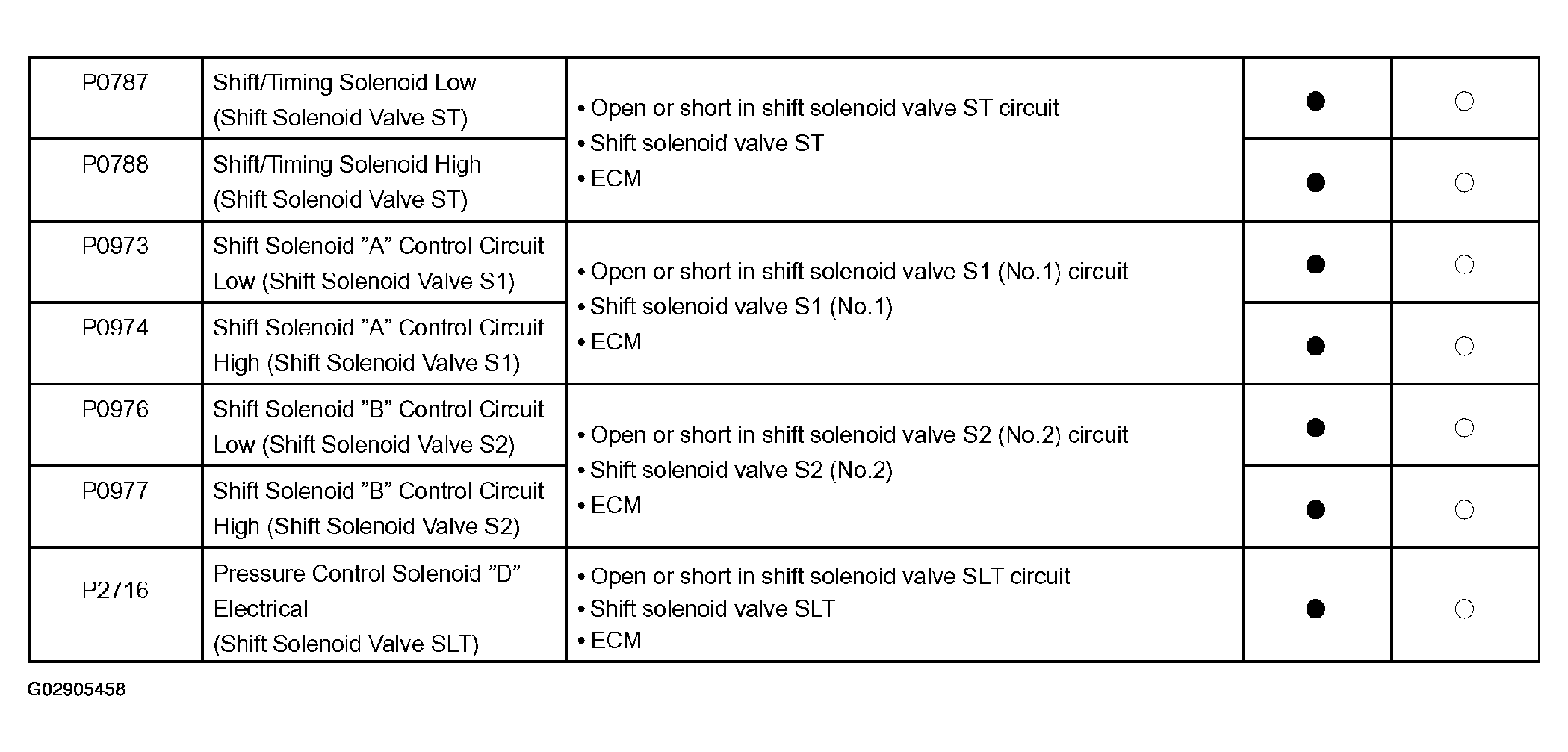

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC P0705 | Transmission Range Sensor Circuit Malfunction (PRNDL Input) |
| DTC P0710, P0712, P0713 | Transmission Fluid Temperature Sensor "A" Circuit Low/High Input |
| DTC P0711 | Transmission Fluid Temperature Sensor "A" Performance |
| DTC P0717 | Turbine Speed Sensor Circuit No Signal |
| DTC P0724 | Brake Switch "B" Circuit High |
| DTC P0741 | Torque Converter Clutch Solenoid Performance (Shift Solenoid Valve SL) |
| DTC P0743 | Torque Converter Clutch Circuit Electrical (Shift Solenoid Valve SL) |
| DTC P0751 | Shift Solenoid "A" Malfunction (Shift Solenoid Valve S1) |
| DTC P0756 | Shift Solenoid "B" Malfunction (Shift Solenoid Valve S2) |
| DTC P0787, P0788 | Shift/Timing Solenoid Low/High (Shift Solenoid Valve ST) |
| DTC P0973, P0974 | Shift Solenoid "A" Control Circuit Low/High (Shift Solenoid Valve S1) |
| DTC P0976, P0977 | Shift Solenoid "B" Control Circuit Low/High (Shift Solenoid Valve S2) |
| DTC P2716 | Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT) |
