Power Steering Gear: Components

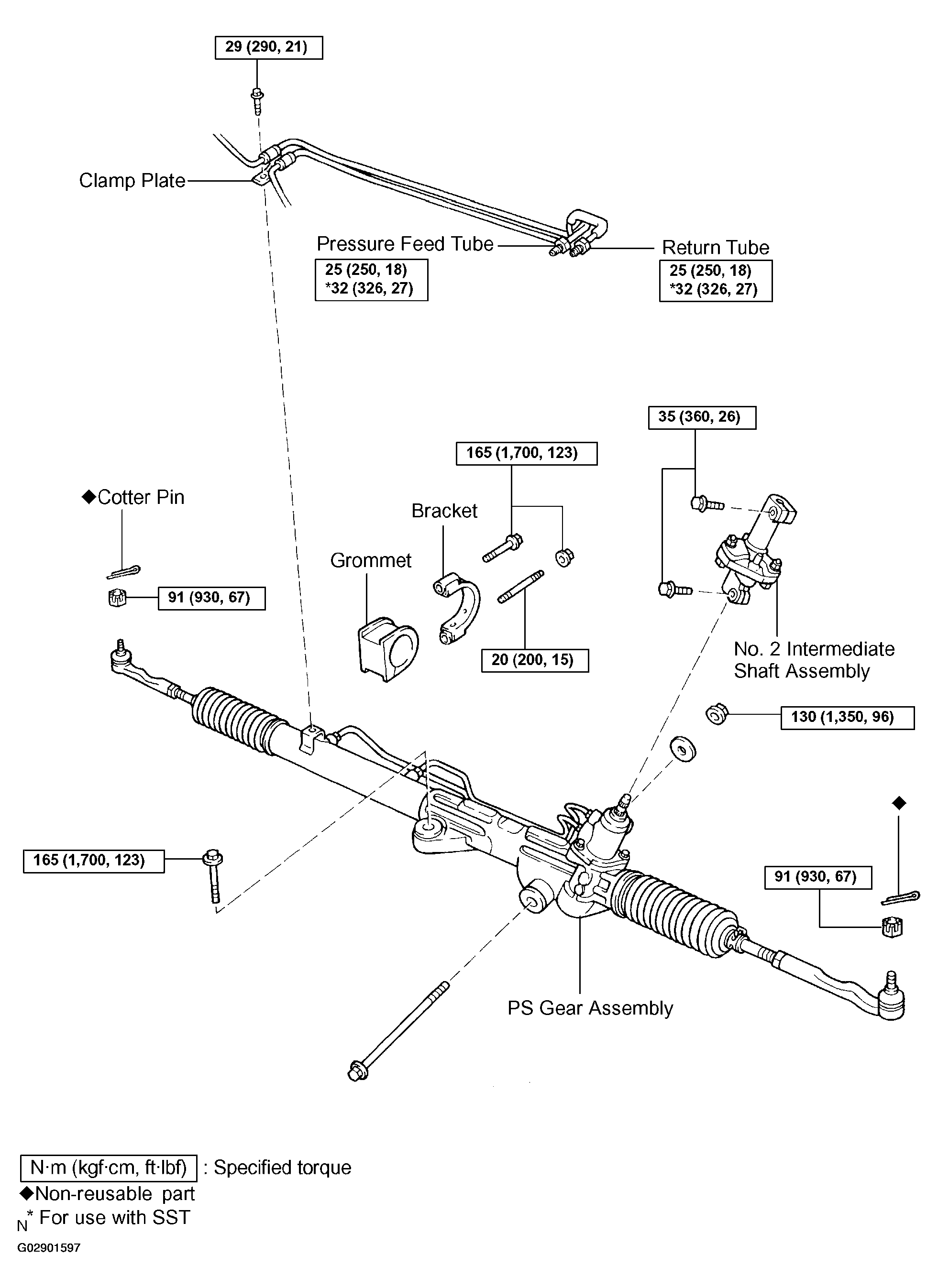

Fig 1: Identifying Components Of Power Steering Gear (1 Of 3)
G02901597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

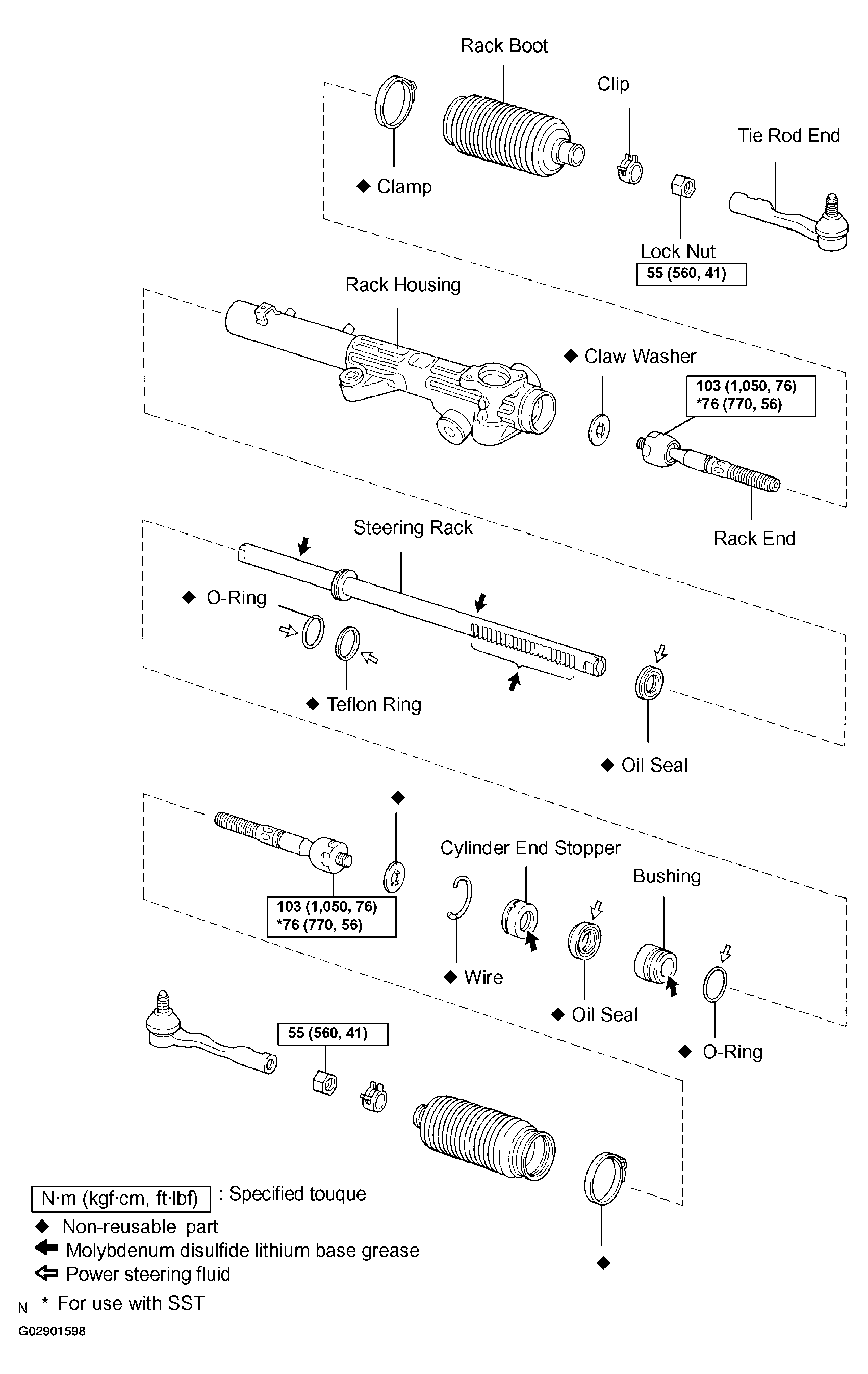

Fig 2: Identifying Components Of Power Steering Gear (2 Of 3)
G02901598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

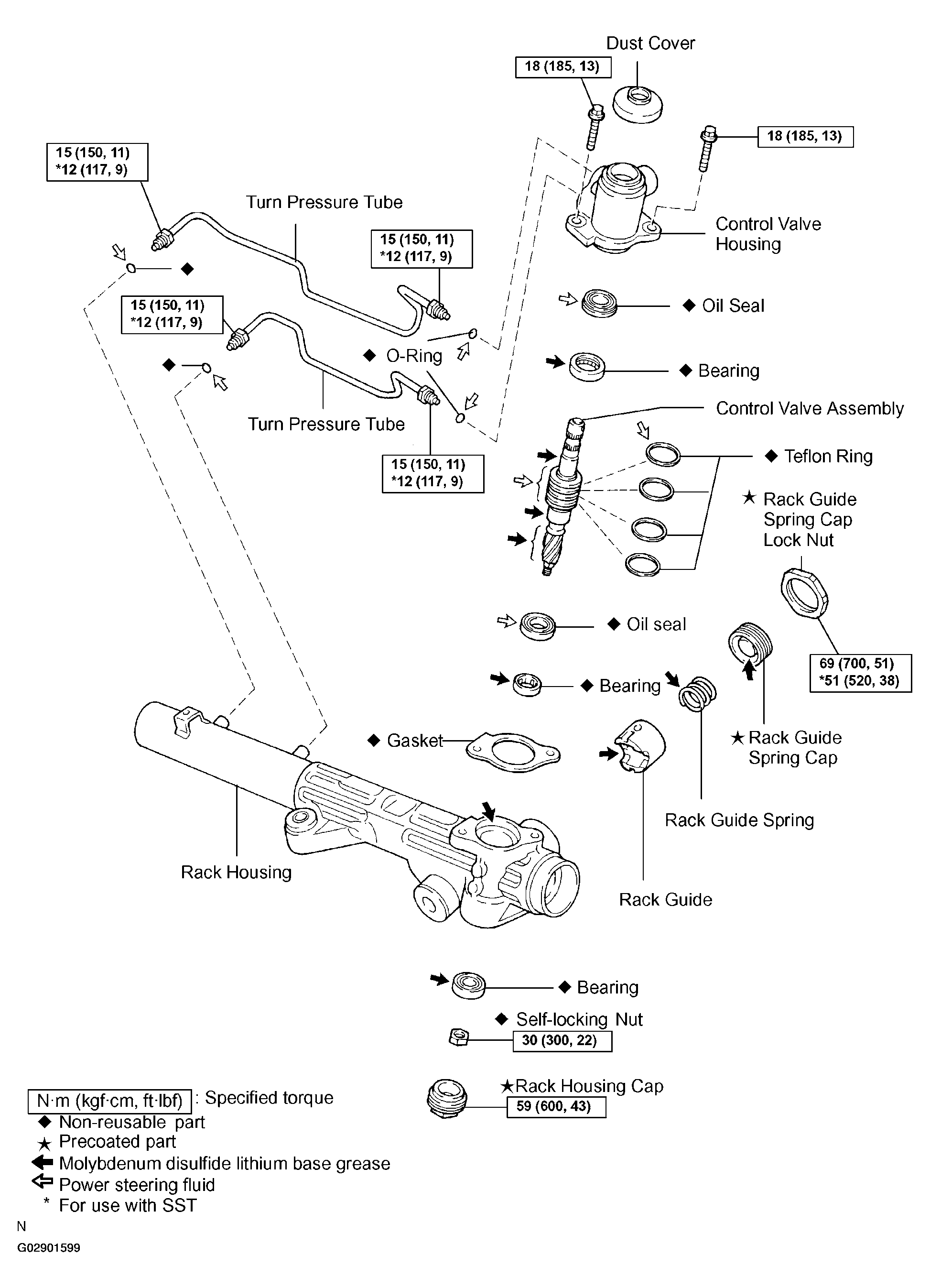

Fig 3: Identifying Components Of Power Steering Gear (3 Of 3)
G02901599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
