Section 336 (Stop Light System): Location

WARNING: This page is about a different car, the 2004 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

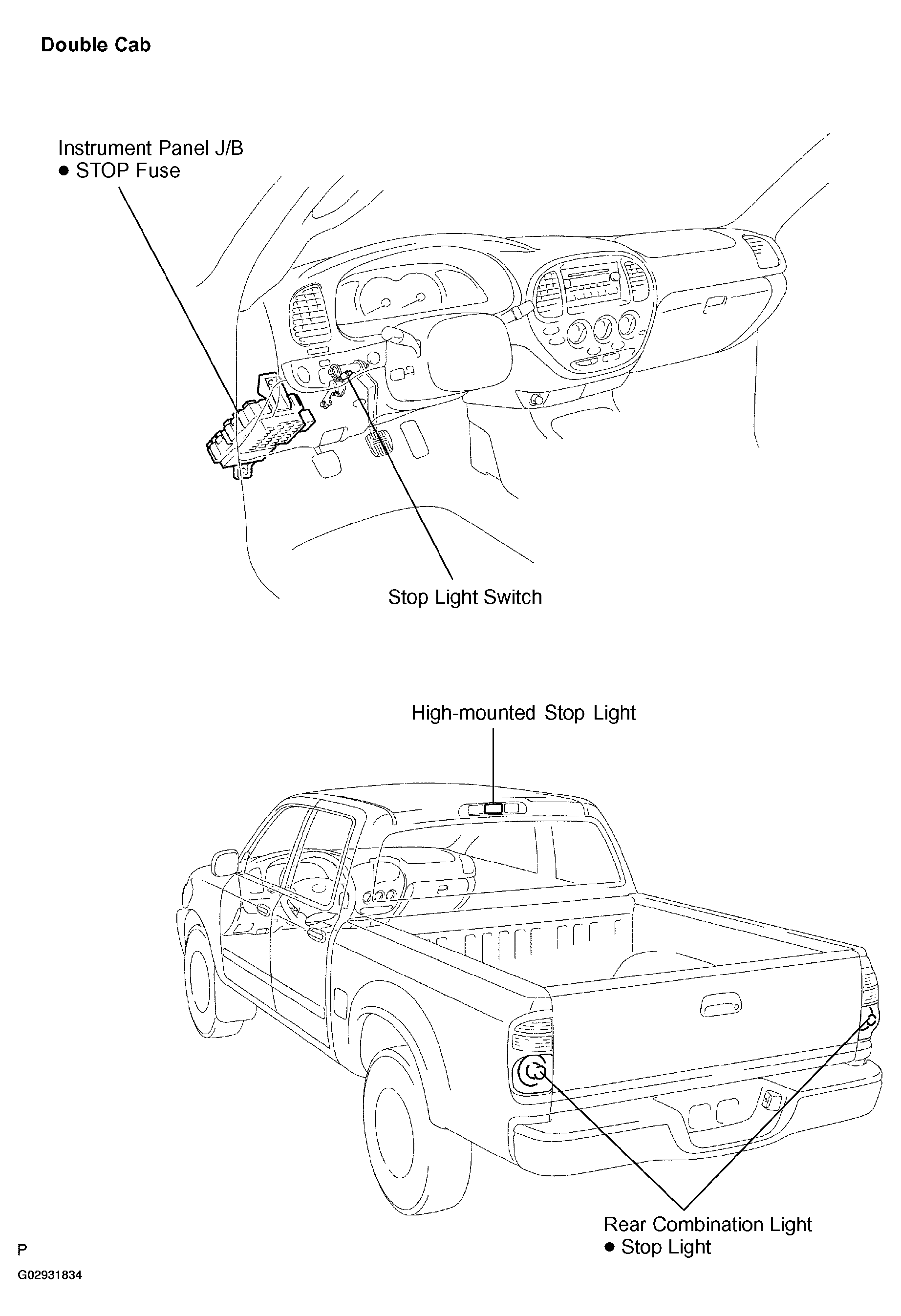

Fig 1: Locating Stop Light System Components (Double Cab)
G02931834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

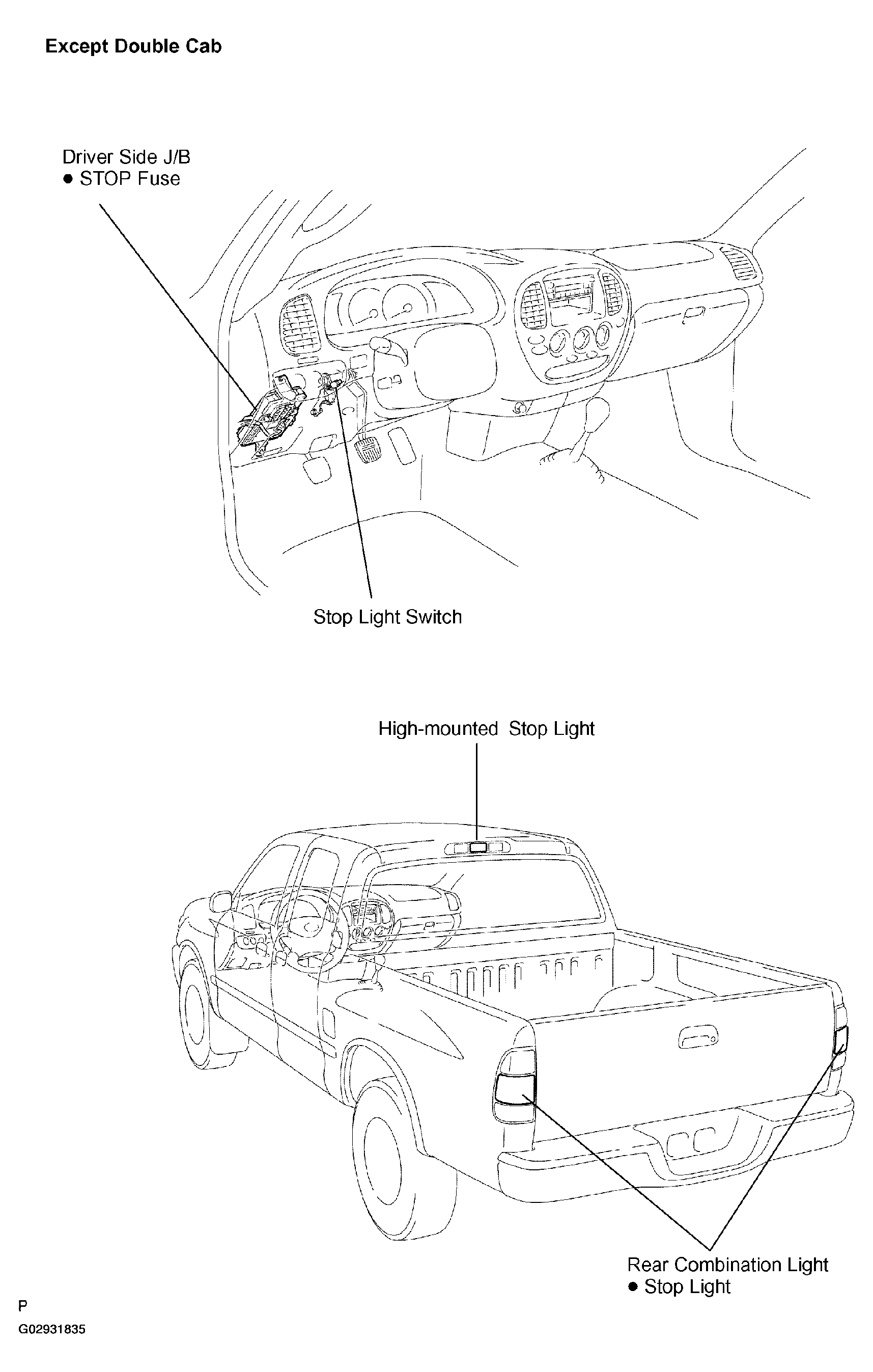

Fig 2: Locating Stop Light System Components (Except Double Cab)
G02931835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
