Front Seat (Bench Type): Reassembly

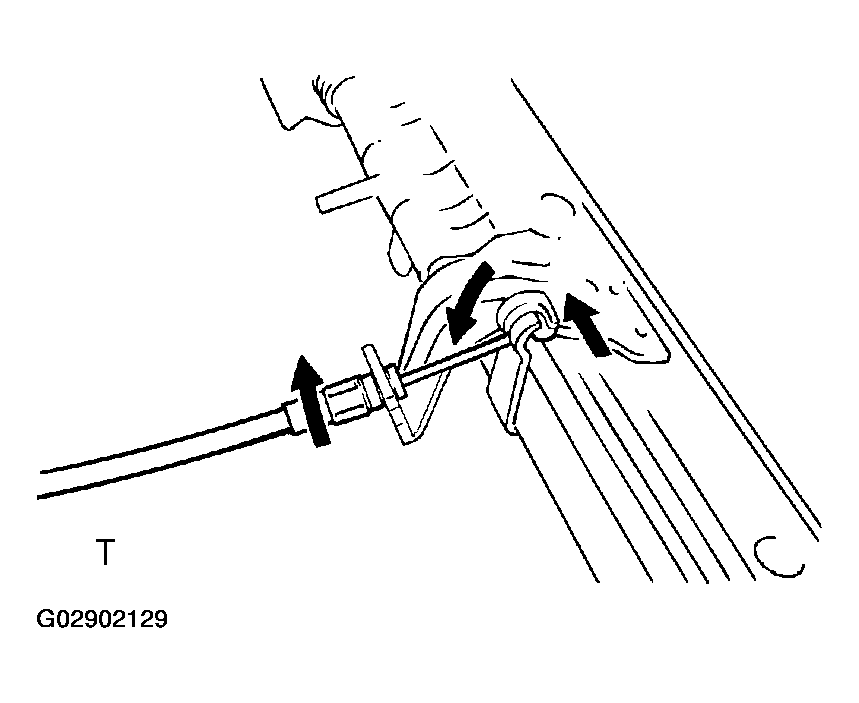

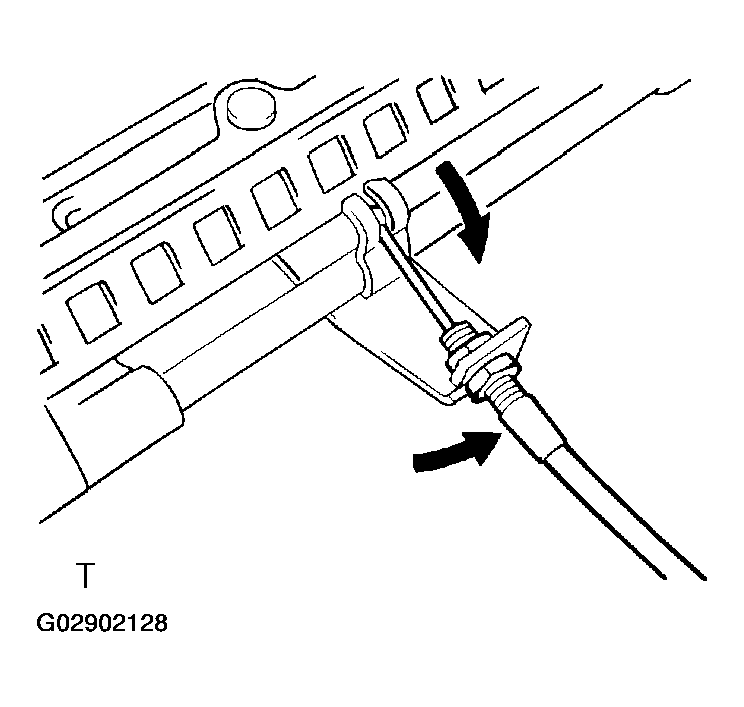

Fig 1: Installing Equalizing Wire

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the equalizing wire to the seat adjuster RH as shown in the illustration.
2. Tighten the adjusting nuts.
   NOTE: When tighten the nuts, while holding one nuts, tighten the other.
3. Stake the claws.
4. Connect the equalizing wire to the seat adjuster LH as shown in the illustration.
   Fig 2: Reconnecting Equalizing Wire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the 2 spacers with the 2 bolts to the seat cushion frame.

1. Torque: 47 N.m (479 kgf.cm, 35 ft.lbf)

Install the seat cushion cover with new hog rings to the seat cushion pad.

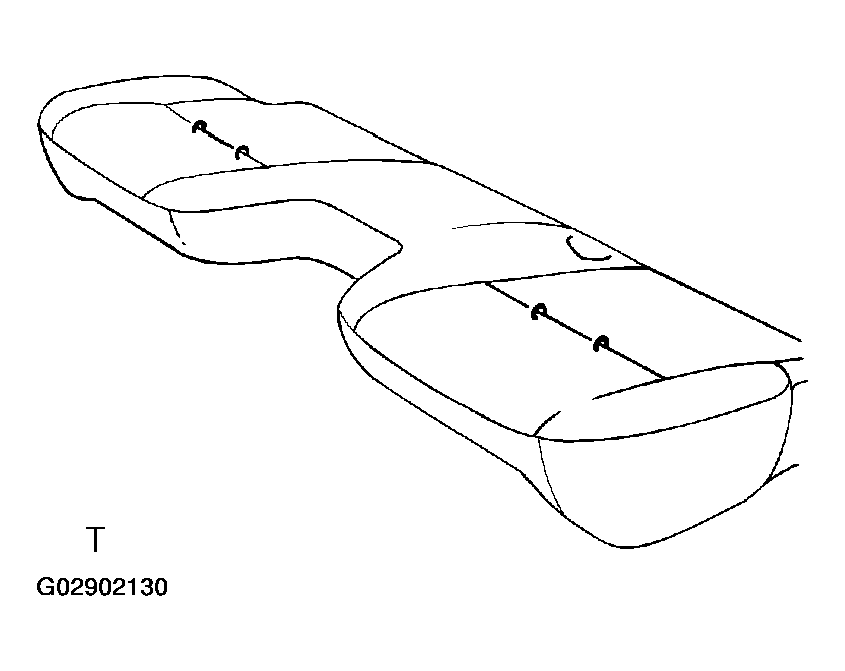

Fig 3: Installing Seat Cushion Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the seat cushion frame to the seat cushion cover with pad.
2. Install the seat cushion frame with new hog rings and latch the seat cushion cover hooks.
   NOTE: When installing hog rings, take care to prevent wrinkles as little as possible.

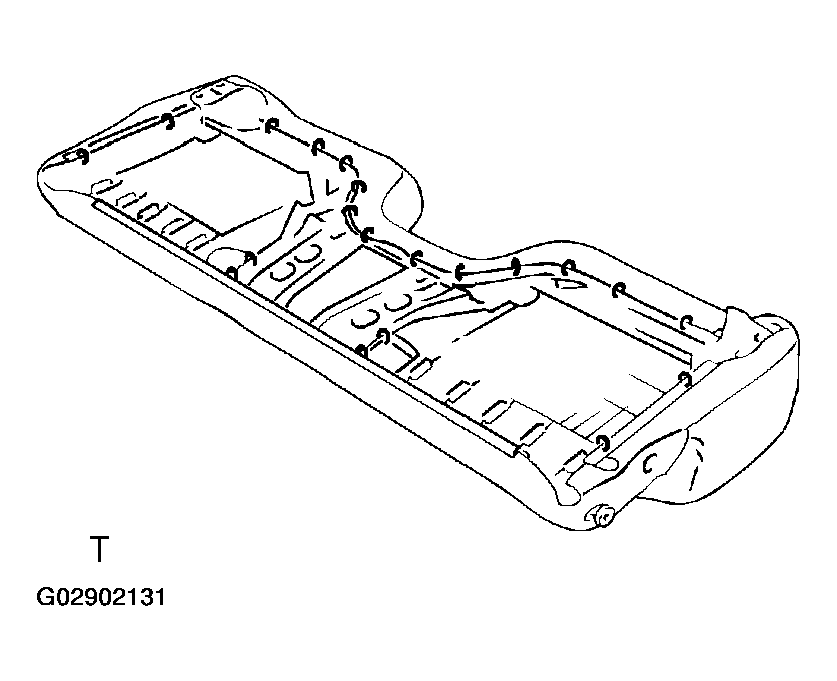

   Fig 4: Installing Seat Cushion Cover To Frame

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the cushion with the screw.
   NOTE: Employ the same manner described above to the other side.

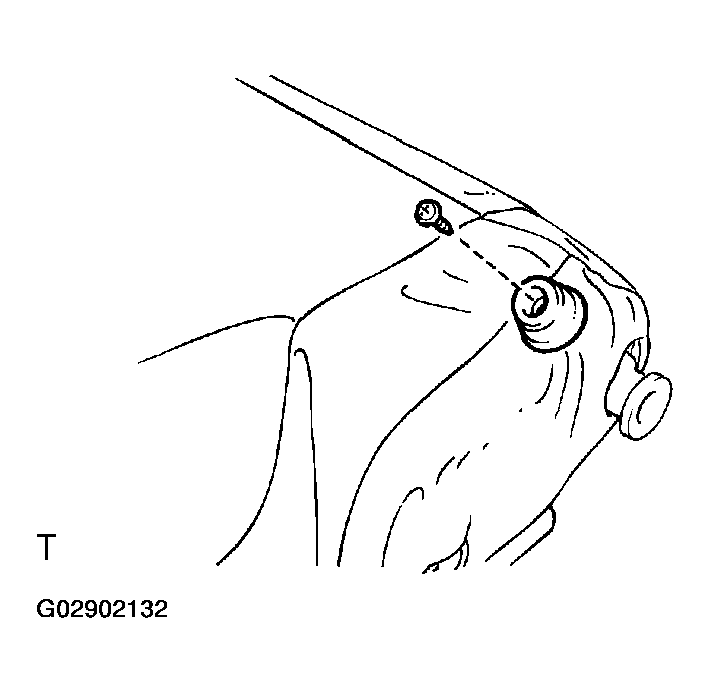

   Fig 5: Installing Cushion

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat cushion assembly with the 4 bolts to the seat adjusters.

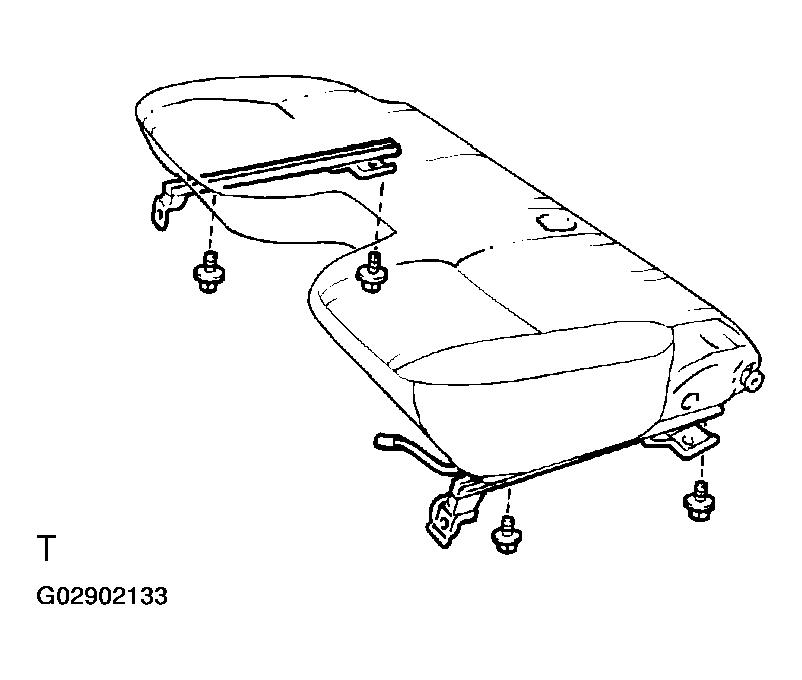

Fig 6: Installing Seat Cushion Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

1. Install the seatback frame to the seatback pad.
2. Install the seatback cover to the seatback pad with the frame.
3. Install the 4 headrest supports.

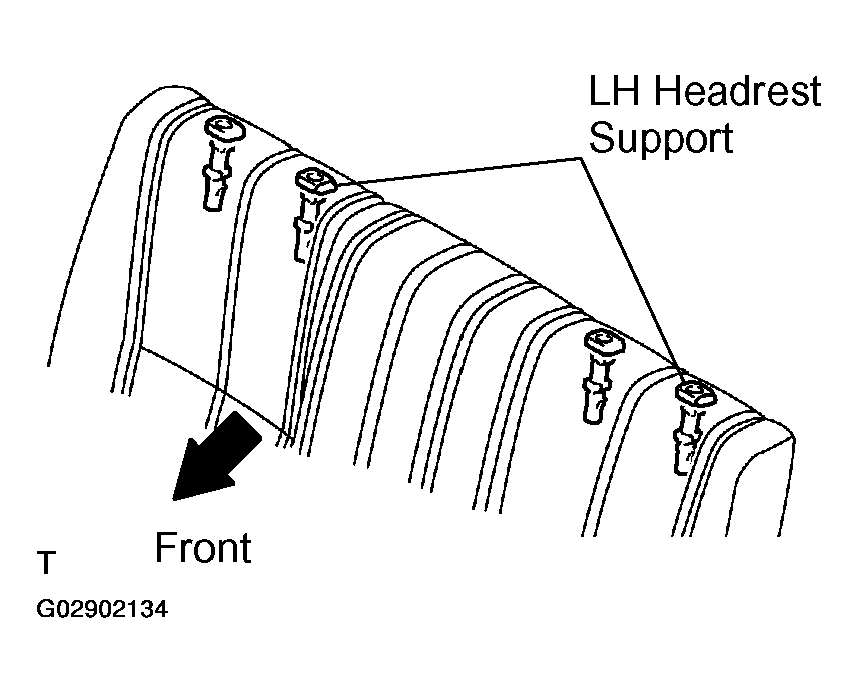

   Fig 7: Installing Headrest Supports

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Do not mistake the direction of the 2 LH headrest supports with the button.
4. Install the seatback cover with new hog rings to the seat-back pad.
   NOTE: When installing hog rings, take care to prevent wrinkles as little as possible.

1. Install the armrest with the 2 nuts.

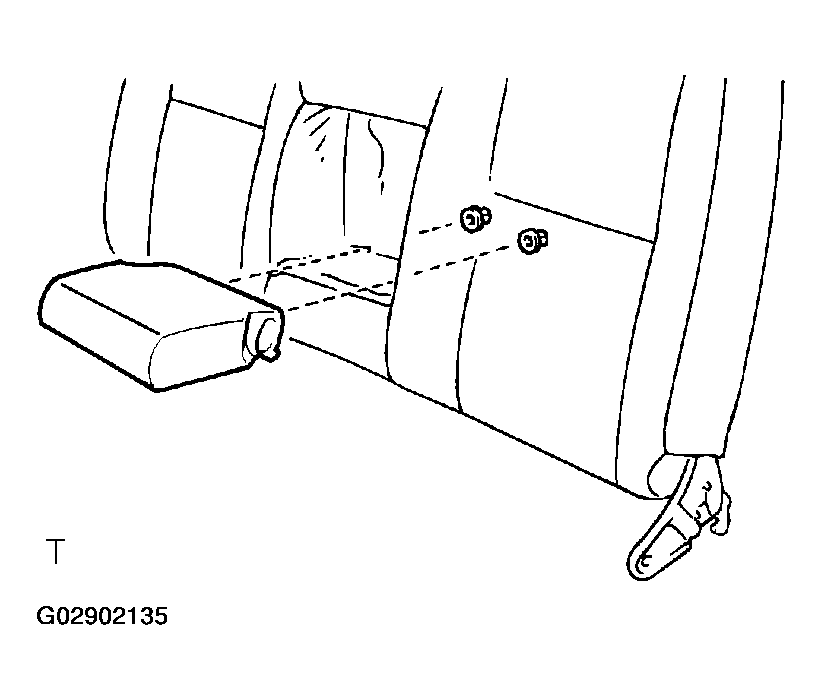

   Fig 8: Installing Armrest

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the new hog rings as shown in the illustration.

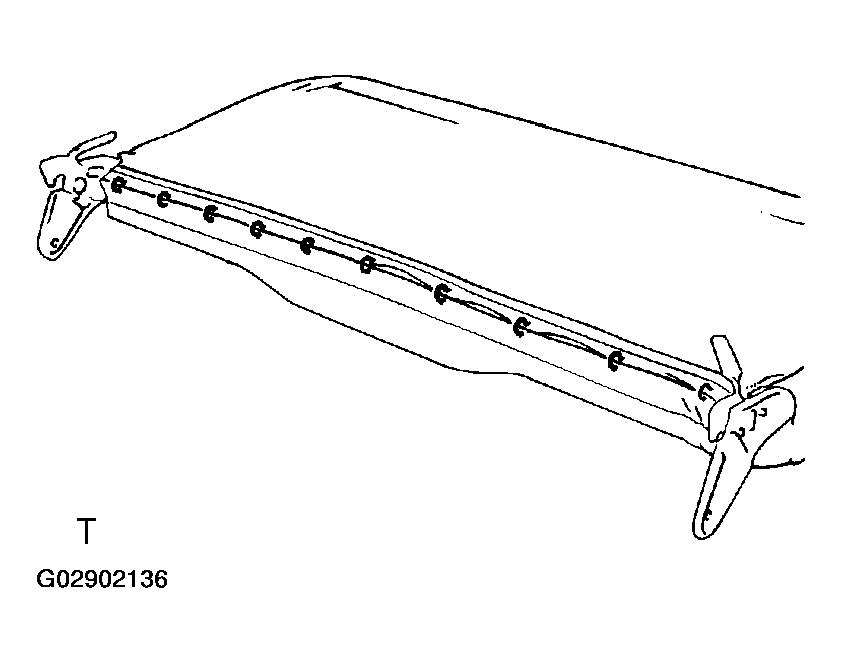

   Fig 9: Installing New Hog Rings

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: When installing hog rings, take care to prevent wrinkles as little as possible.

1. Install the seatback assembly with the 2 bolts.

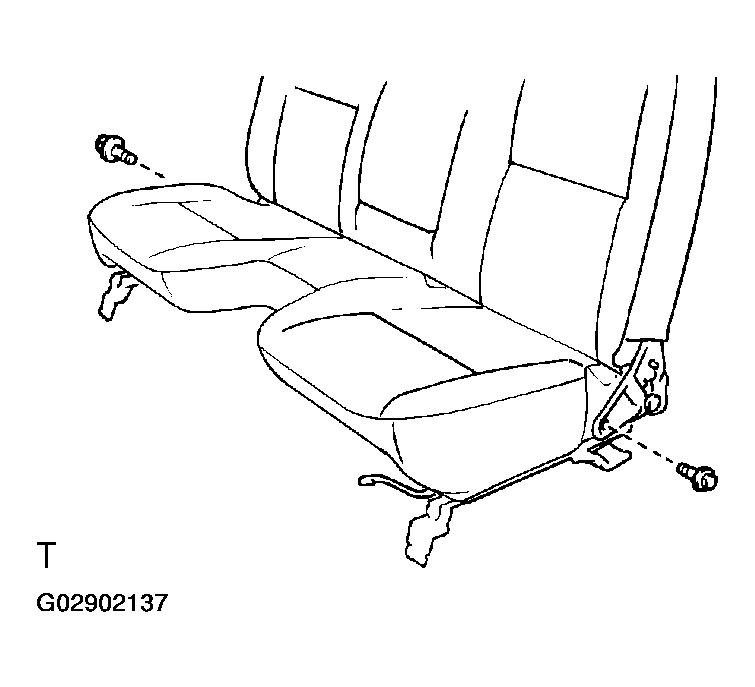

   Fig 10: Installing Seatback Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)
2. Install the nut to the rear side of the seat cushion.
   1. Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)
3. INSTALL SEAT CUSHION INNER SHIELD

   Install the seat cushion inner shield with the screw.

4. INSTALL SEAT CUSHION OUTER SHIELD

   Install the seat cushion outer shield with the screw.

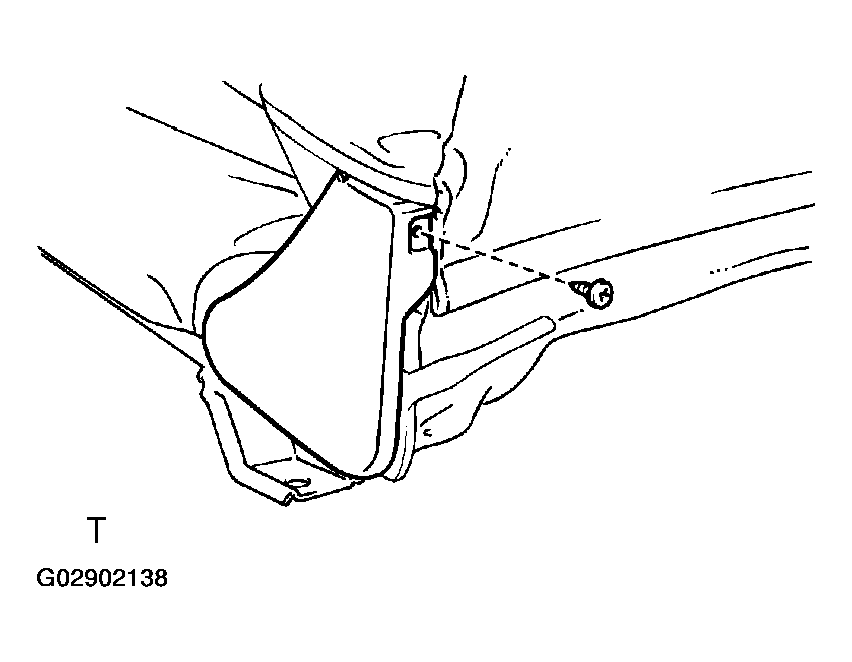

   Fig 11: Installing Seat Cushion Outer Shield

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL HEADRESTS
6. CHECK SLIDING LOCK POSITION

   Check that the outer and inner tracks are locked at the same position.

   If the sliding lock positions slip off, pull the sliding seat lever and slide the inner and outer tracks at the same sliding lock positions.

7. INSTALL FRONT SEAT
   1. Put the seat on the vehicle and connect the 4 connectors.
   2. Install the 4 bolts and 4 seat track covers.
      1. Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)
