Front Seat (Bench Type): Disassembly

1. Remove the 4 seat track covers and 4 bolts.
2. Disconnect the 4 connectors and remove the front seat.

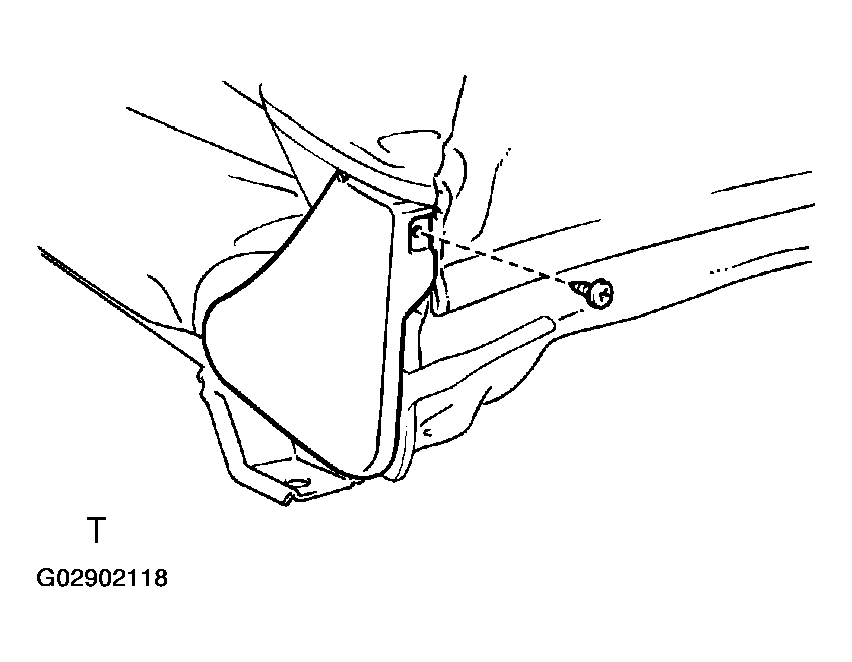

Remove the screw and seat cushion outer shield.

Remove the screw and seat cushion inner shield.

Fig 1: Removing Cushion Outer/Inner Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

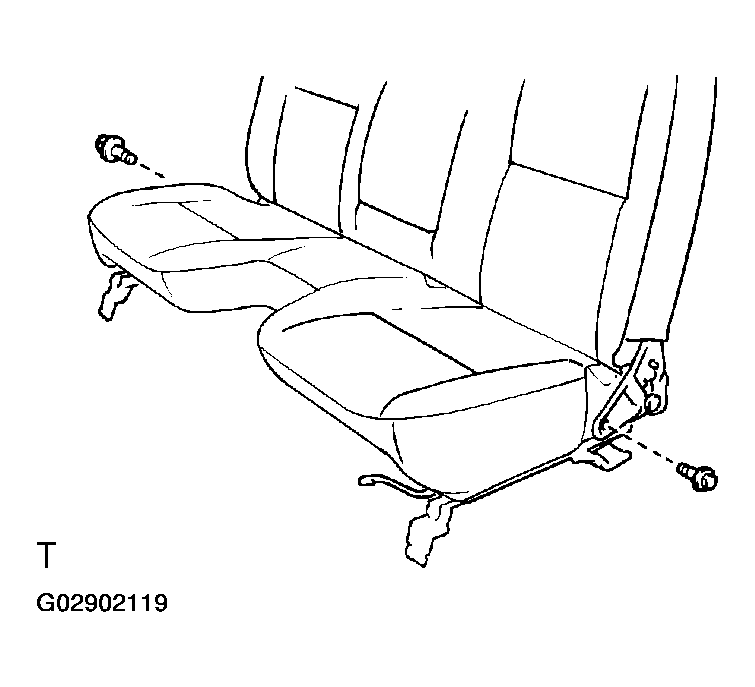

1. Remove the nut from rear side of the seat cushion.
2. Remove the 2 bolts and seatback assembly.
   Fig 2: Removing Seatback Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

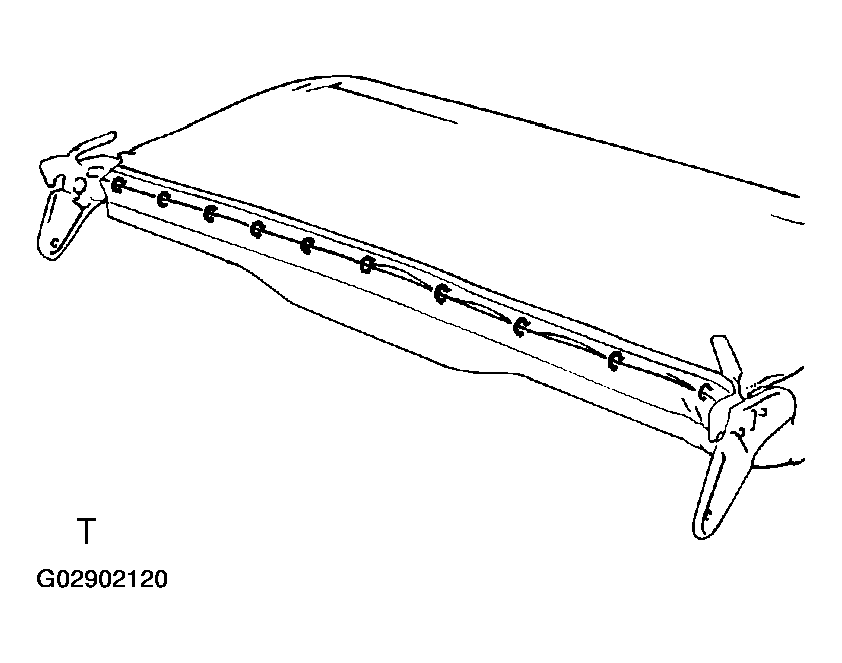

1. Remove the hog rings and turn over the seatback cover.
   Fig 3: Removing Hog Rings & Turning Over Seatback Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

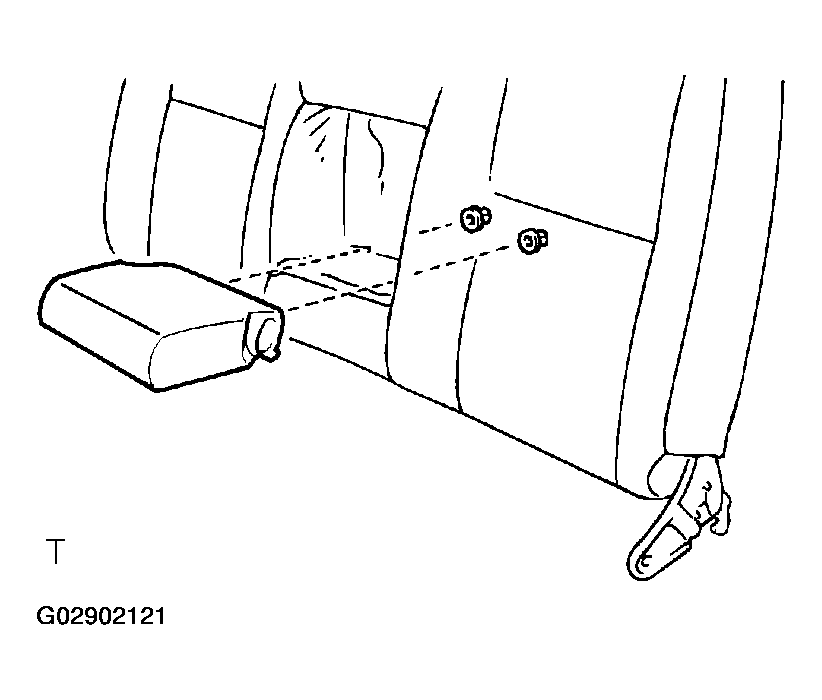

2. Remove the 2 nuts and armrest from the seatback frame.
   Fig 4: Removing Armrest

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 headrest supports and seatback cover from the seatback pad with the frame.
2. Remove the seatback frame from the seatback pad.

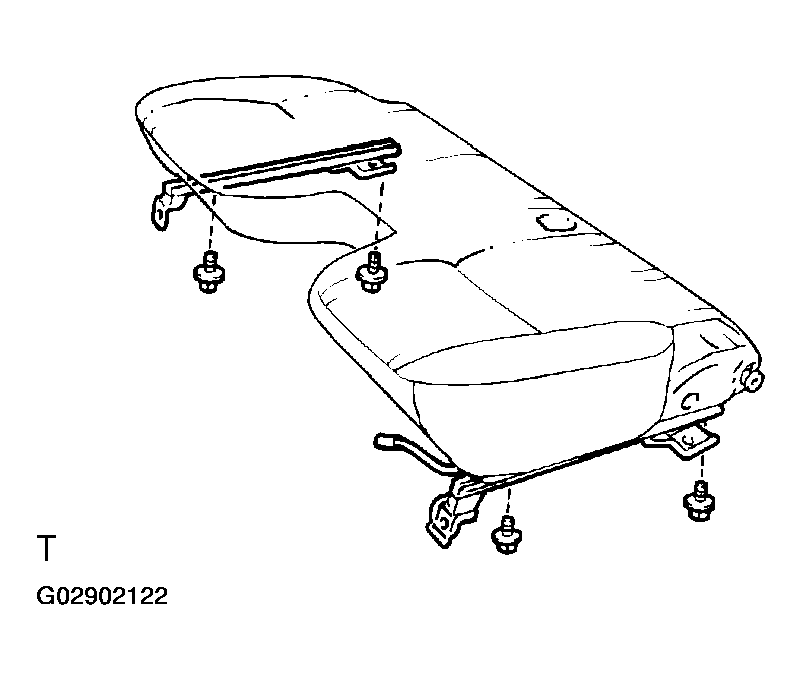

Remove the 4 bolts and seat cushion assembly from the seat adjusters.

Fig 5: Removing Seat Cushion Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

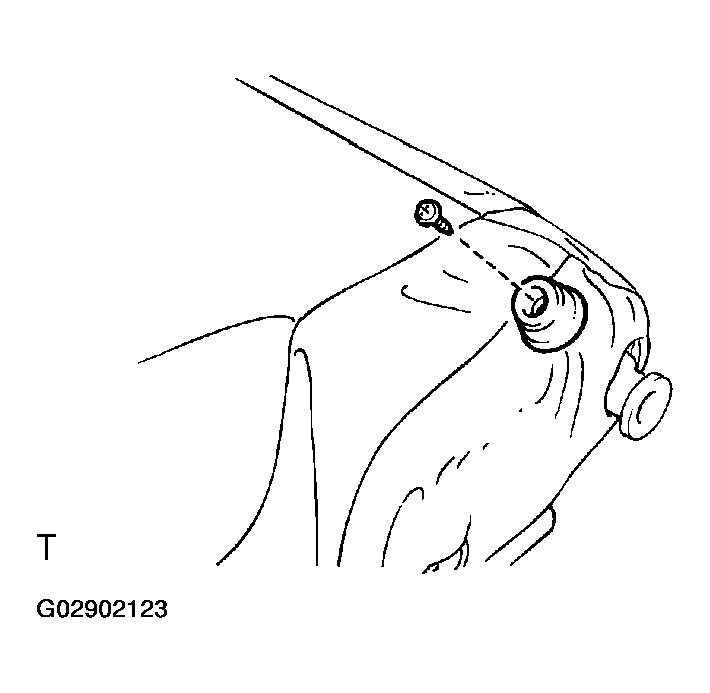

1. Remove the screw and cushion.
2. Employ the same manner described above to the other side.
   Fig 6: Removing Seat Cushion Frame

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the hog rings and unlatch the seat cushion cover.
4. Remove the seat cushion frame from the seat cushion cover with pad.
   Fig 7: Removing Hog Rings & Unlatch Seat Cushion Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

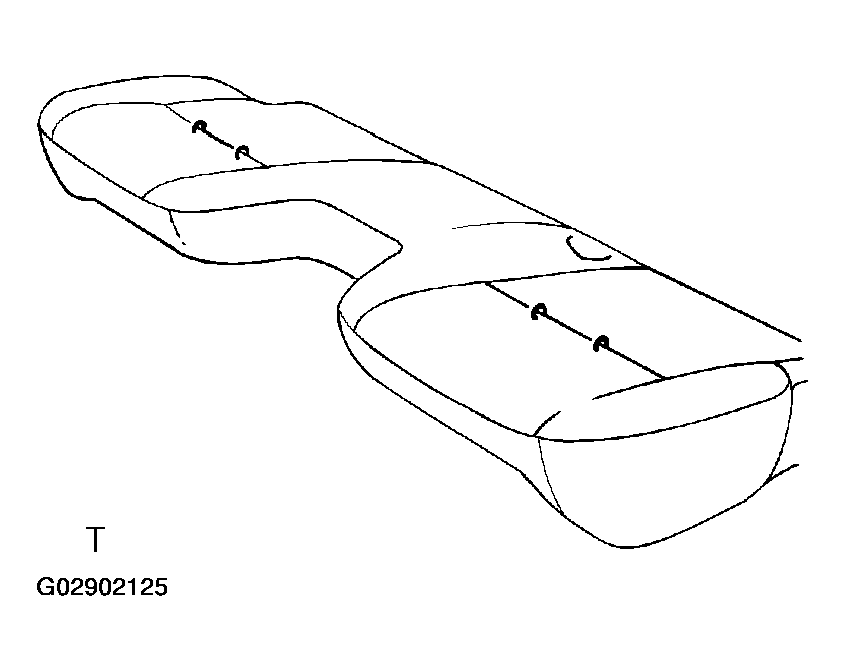

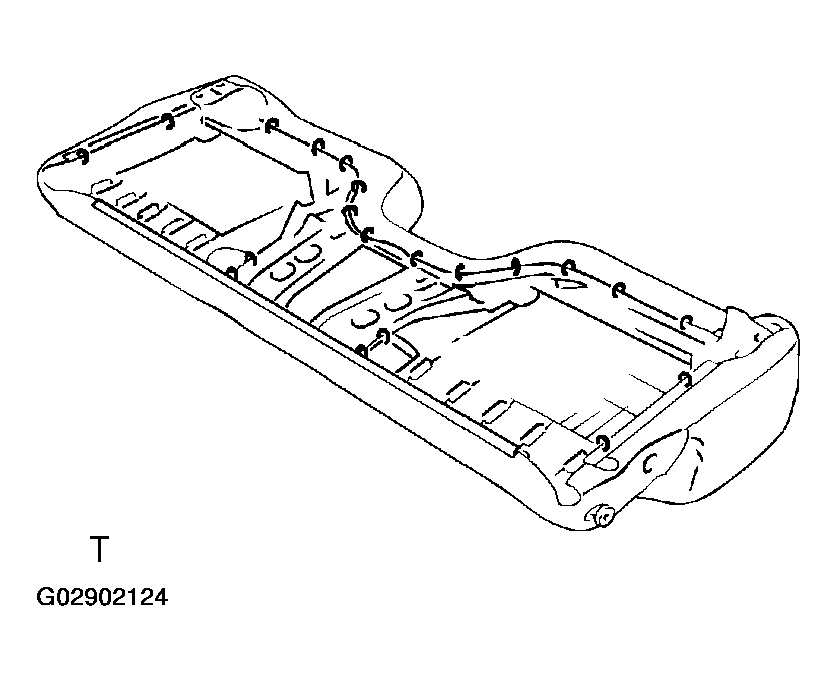

Remove the hog rings and seat cushion cover from seat cushion pad.

Fig 8: Removing Seat Cushion Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 bolts and 2 spacers from the seat cushion frame.

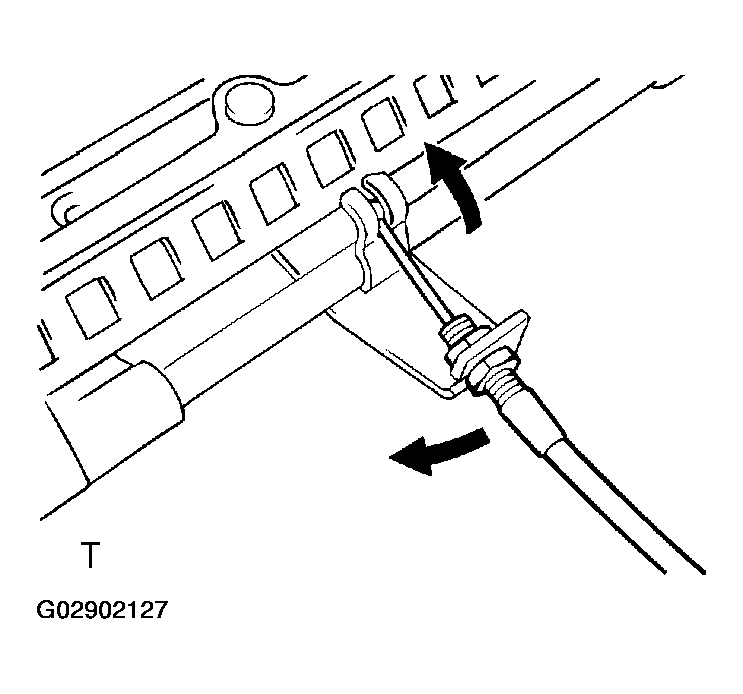

1. Disconnect the equalizing wire from the seat adjuster LH as shown in the illustration.
   Fig 9: Disconnecting Equalizing Wire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, unstake the claws.
   NOTE: Tape the screwdriver tip before use.

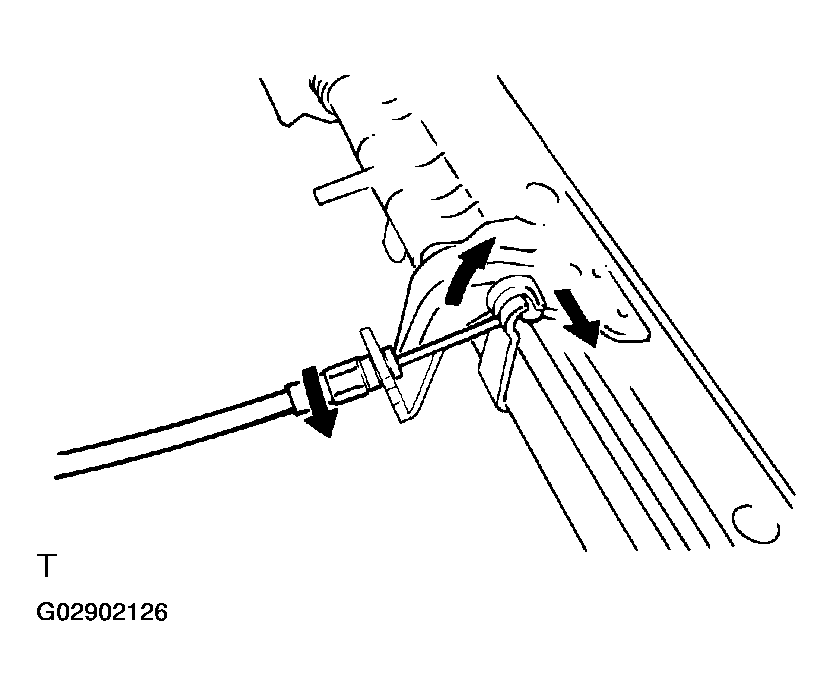

3. Loosen the adjusting nuts.
   Fig 10: Loosening Adjusting Nuts To Release Wire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: When loosening the nuts, while holding one nut, loosen the other.
4. Disconnect the equalizing wire from the seat adjuster RH as shown in the illustration.
