Rear Seat: Reassembly

  1. INSTALL REAR SEAT INNER BELT
    1. Torque: 42 N.m (420 kgf.cm, 30 ft.lbf)
  2. INSTALL CENTER BELT
    1. Torque: 42 N.m (420 kgf.cm, 30 ft.lbf)
  3. INSTALL SEAT CUSHION UNDER COVER

    Place the under cover, seat track and cushion frame temporally and then fix the under cover with the 5 screws.

  4. INSTALL SEAT TRACK
  5. INSTALL SEAT LOCK LEVER

    Install the seat lock lever with the 2 E-rings.

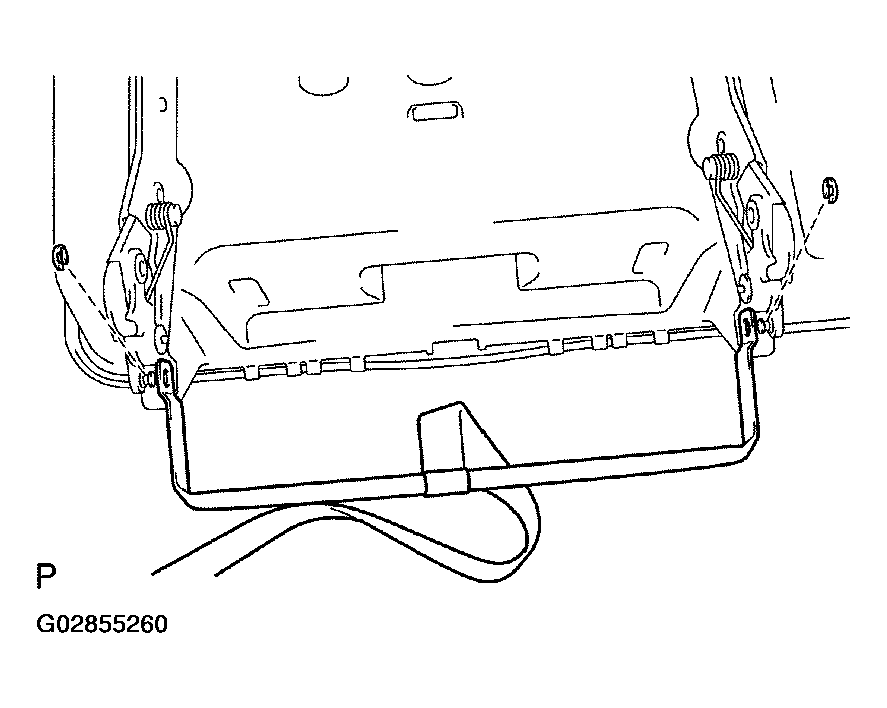

    Fig 1: Installing Seat Lock Lever With E-Rings
    G02855260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL SEAT TRACK ADJUSTING HANDLE
    1. Install the seat cushion lock control rod with the E-ring.
    2. Install the cushion frame with the 6 nuts.
      1. Torque: 44 N.m (440 kgf.cm, 32 ft.lbf)
    3. Install the seat track adjusting handle.
  7. INSTALL SEAT CUSHION COVER
  8. INSTALL RECLINING ADJUSTER

    Install the reclining adjuster with the 4 bolts.

    1. Torque: 44 N.m (440 kgf.cm, 32 ft.lbf)
  9. INSTALL RECLINING ROD
  10. INSTALL SEATBACK COVER
    1. Install the seatback cover to the seatback pad with new hog rings.
    2. Install the seatback lock control bezel with the screw.
    3. Install the reclining release handle with the nut.

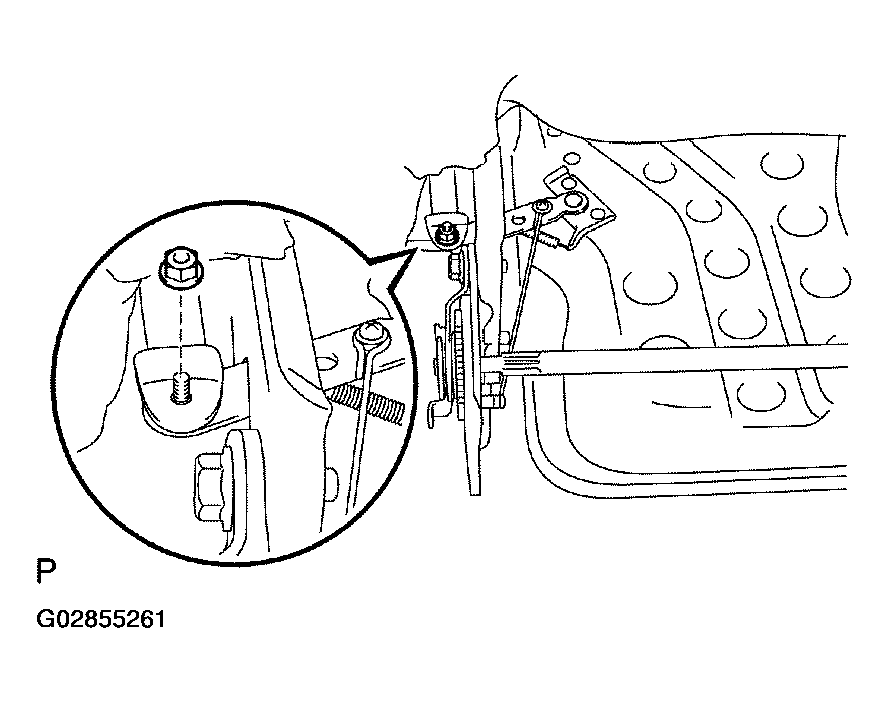

      4. Fig 2: Installing Reclining Release Handle With Nut
      G02855261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the headrest supports.
    5. Zip the seatback cover closed.
    6. Replace the seatback cover.
  11. INSTALL SEATBACK ASSEMBLY

    Install the rear seatback assembly with the 4 bolts.

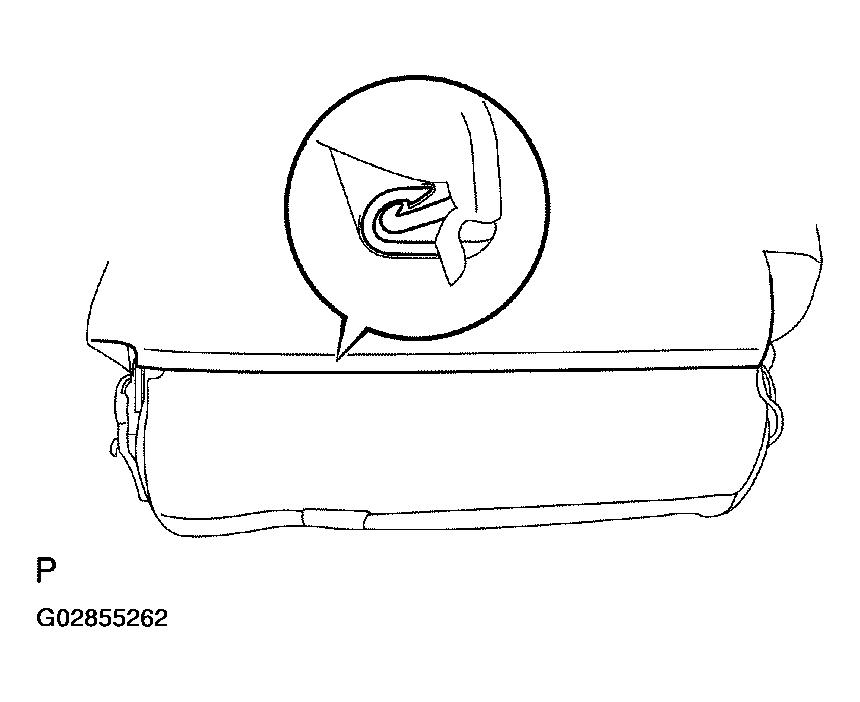

    Fig 3: Installing Rear Seatback Assembly
    G02855262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Torque: 44 N.m (440 kgf.cm, 32 ft.lbf)
  12. INSTALL RECLINING LOWER COVER
  13. INSTALL RECLINING ADJUSTER COVER
  14. INSTALL HEADREST
