Rear Seat: Disassembly

  1. REMOVE HEADREST
  2. REMOVE RECLINING ADJUSTER COVER

    Remove the screw and reclining adjuster cover.

  3. REMOVE RECLINING LOWER COVER

    Remove the screw and reclining lower cover.

  4. REMOVE SEATBACK ASSEMBLY

    Remove the 4 bolts and seat back assembly.

  5. REMOVE SEATBACK COVER
    1. Zip the seatback cover open.
    2. Turn over the seatback cover.

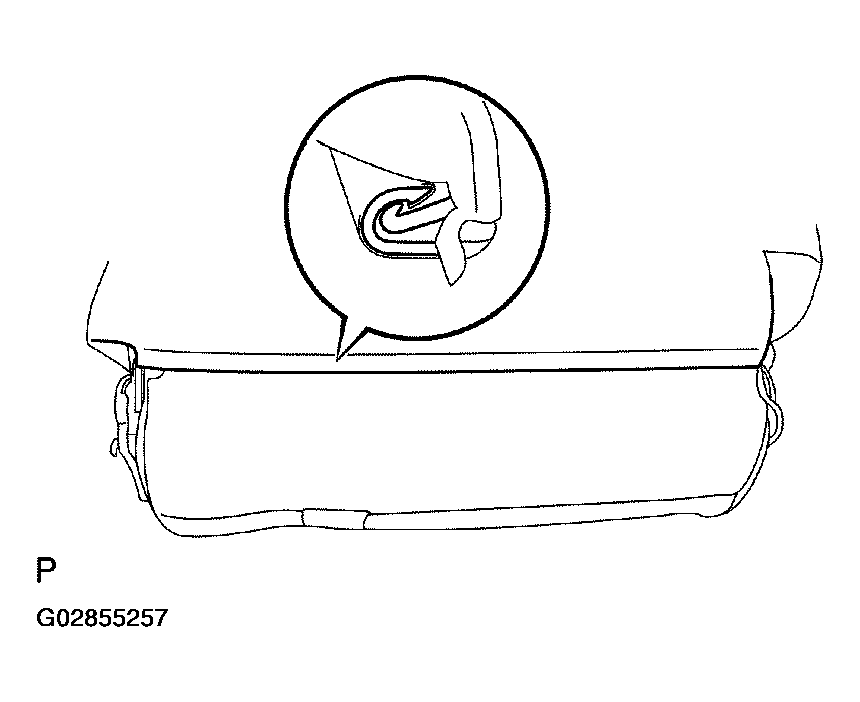

      3. Fig 1: Turning Over Seatback Cover
      G02855257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the headrest supports.
    4. Remove the nut and reclining release handle.

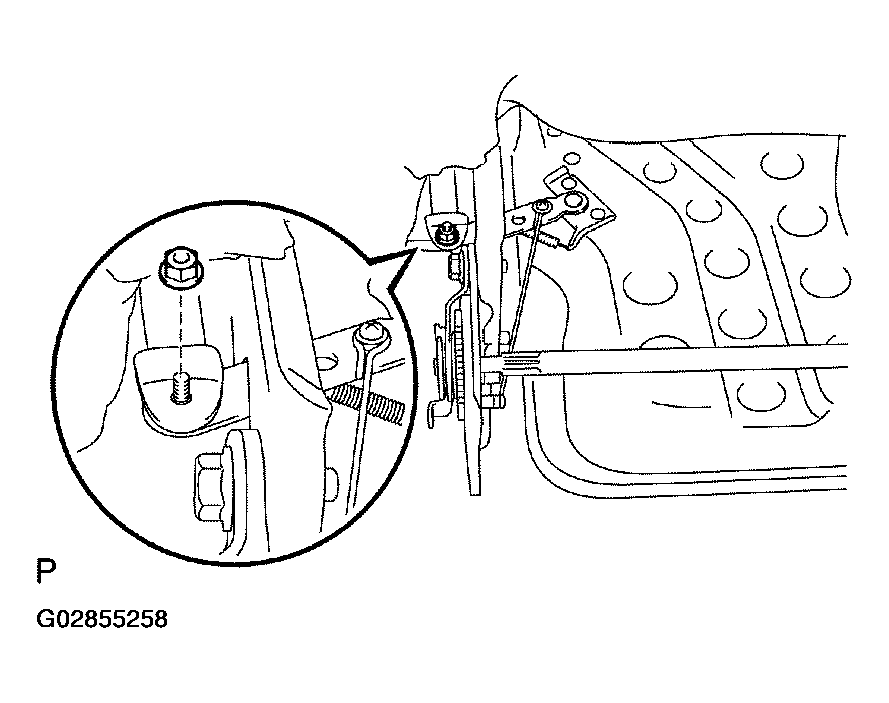

      5. Fig 2: Removing Reclining Release Handle
      G02855258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the screw and seatback lock control bezel.
    6. Remove the hog rings and seatback cover from the seat-back pad.
  6. REMOVE RECLINING ADJUSTER

    Remove the 4 bolts and reclining adjuster.

  7. REMOVE SEAT RECLINING ROD
  8. REMOVE SEAT CUSHION COVER

    Using a screwdriver, remove the seat cushion cover.

    NOTE: Tape the screwdriver tip before use.
    NOTE: Be careful not to damage to the seat cushion cover.
  9. REMOVE SEAT CUSHION FRAME
    1. Remove the 5 screws and seat cushion cover.
    2. Remove the 6 nuts and seat cushion frame.
  10. REMOVE SEAT TRACK
    1. Using a screwdriver, remove the seat track adjusting handle.
      NOTE: Tape the screwdriver tip before use.
    2. Remove the E-ring and seat cushion lock control rod.
    3. Remove the 2 E-rings and seat track lock lever.

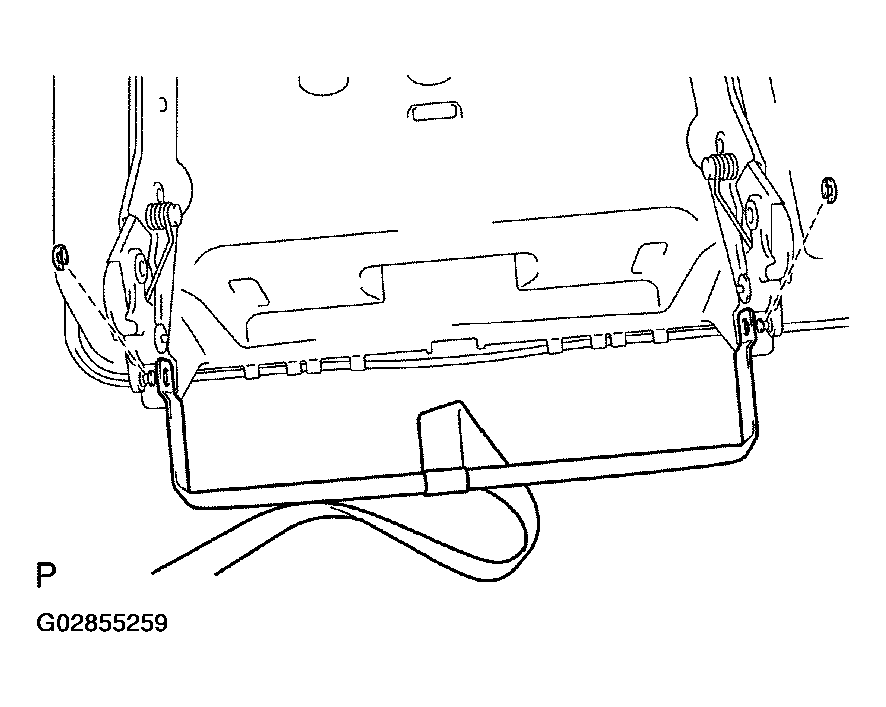

      4. Fig 3: Removing E-Rings & Seat Track Lock Lever
      G02855259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the seat track.
  11. REMOVE SEAT CUSHION UNDER COVER
  12. REMOVE CENTER BELT
  13. REMOVE REAR SEAT INNER BELT
