Roof Headlining: Installation

1. Install the 2 sun visor holders.
2. Install the roof headlining with the 4 clips.

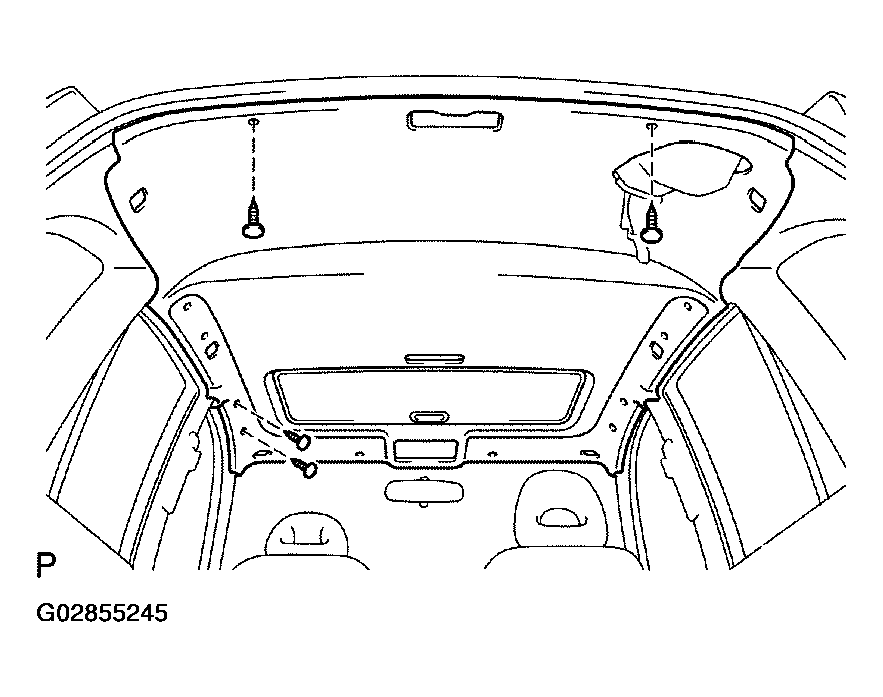

   Fig 1: Installing Roof Headlining

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: When installing the roof headlining, put the fastener tapes.
3. Install the 4 room partition net hooks.
4. Install the roof headlining trim garnish.

1. Install the front pillar garnish to the body.

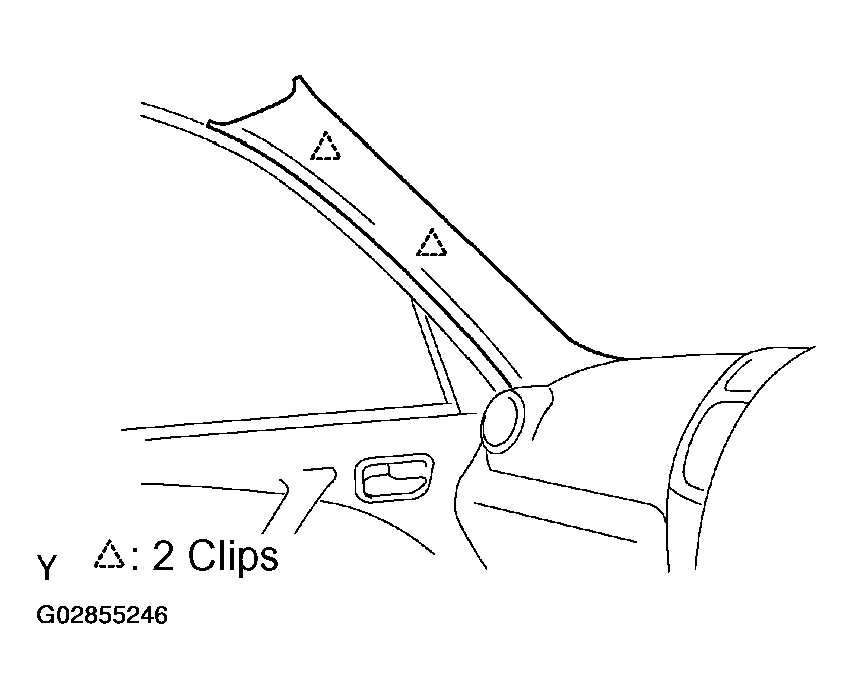

Fig 2: Installing Front Pillar Garnish To Body
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Employ the same manner described above to the other side.

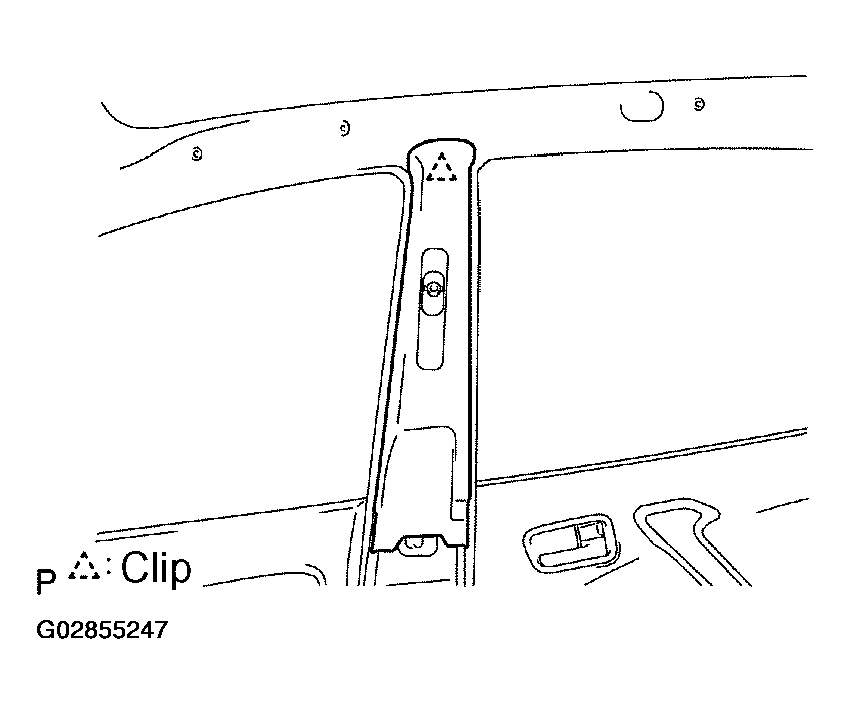

Fig 3: Installing Center Pillar Upper Garnishes

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the center pillar upper garnish to the body.
2. Employ the same manner described above to the other side.

1. Install the front seat outer belt shoulder anchor with the bolt.
   1. Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
2. Install the center pillar lower garnishes.

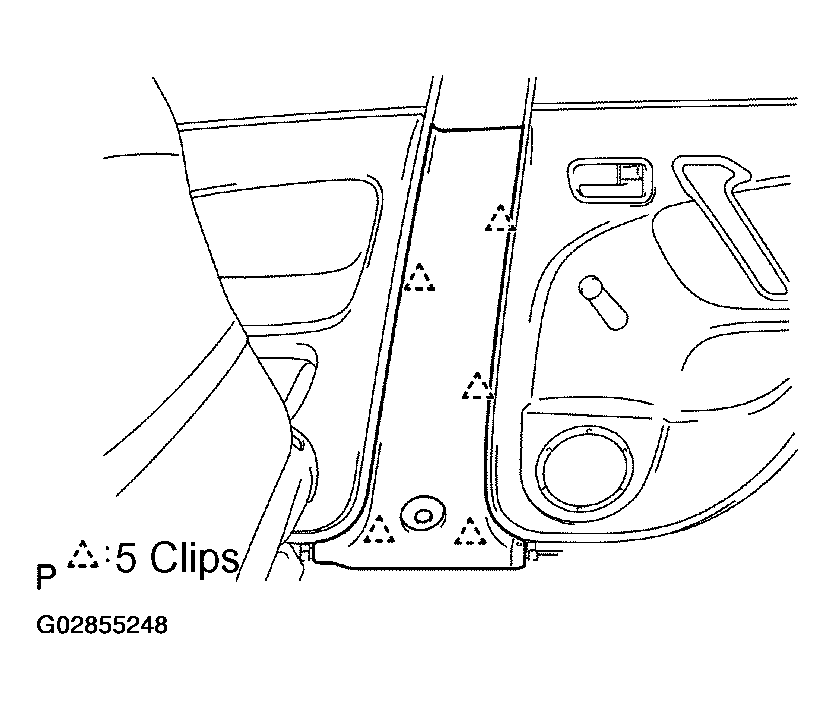

Fig 4: Installing Center Pillar Lower Garnishes
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Employ the same manner described above to the other side.

1. Install the front seat outer belt floor anchor with the bolt.
   1. Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
2. Install the roof side inner garnish with the 3 clips.

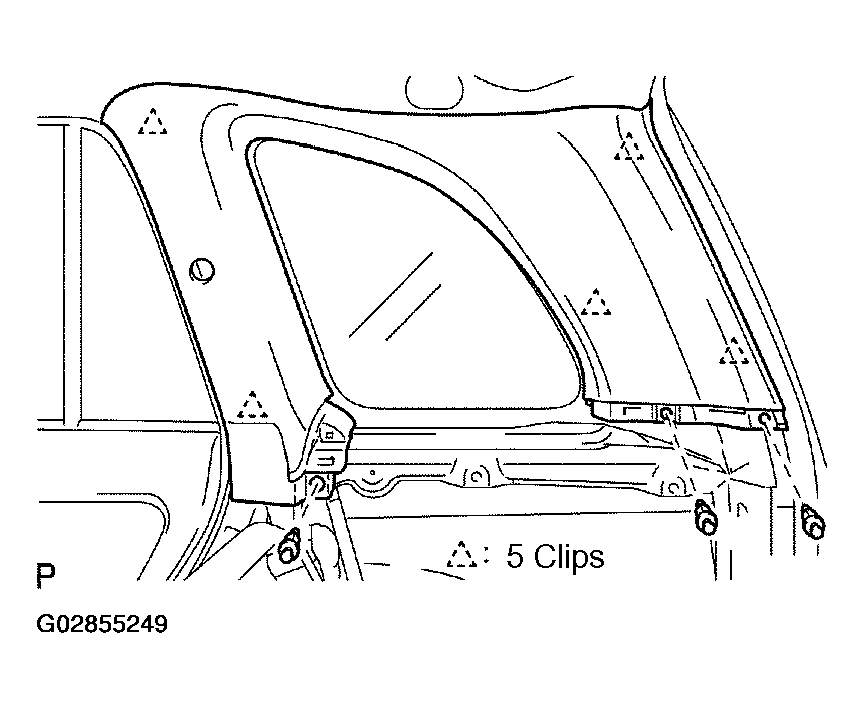

Fig 5: Installing Roof Side Inner Garnishes With Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the rear seat outer belt shoulder anchor with the bolt.
   1. Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
4. Employ the same manner described above to the other side.

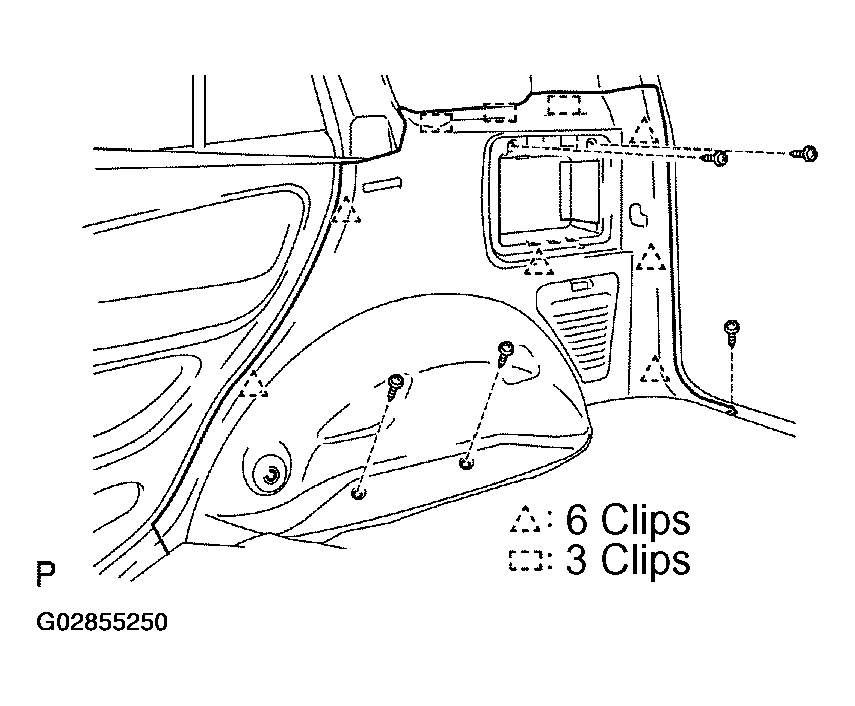

Fig 6: Installing Deck Side Trim

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. LH side:

   Connect the connector.

2. Install the deck side trim with the 5 screws.
3. Install the rear seat outer belt floor anchor with the bolt.
   1. Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
4. Employ the same manner described above to the other side.

1. Connect the connector, then install the roof console box with the 3 screws.
2. Install the roof console box cover.

Install the 2 sun visors with the 4 screws.

1. Connect the connector, then install the room light with the 2 screws.
2. Install the room light cover.
