Roof Headlining: Components

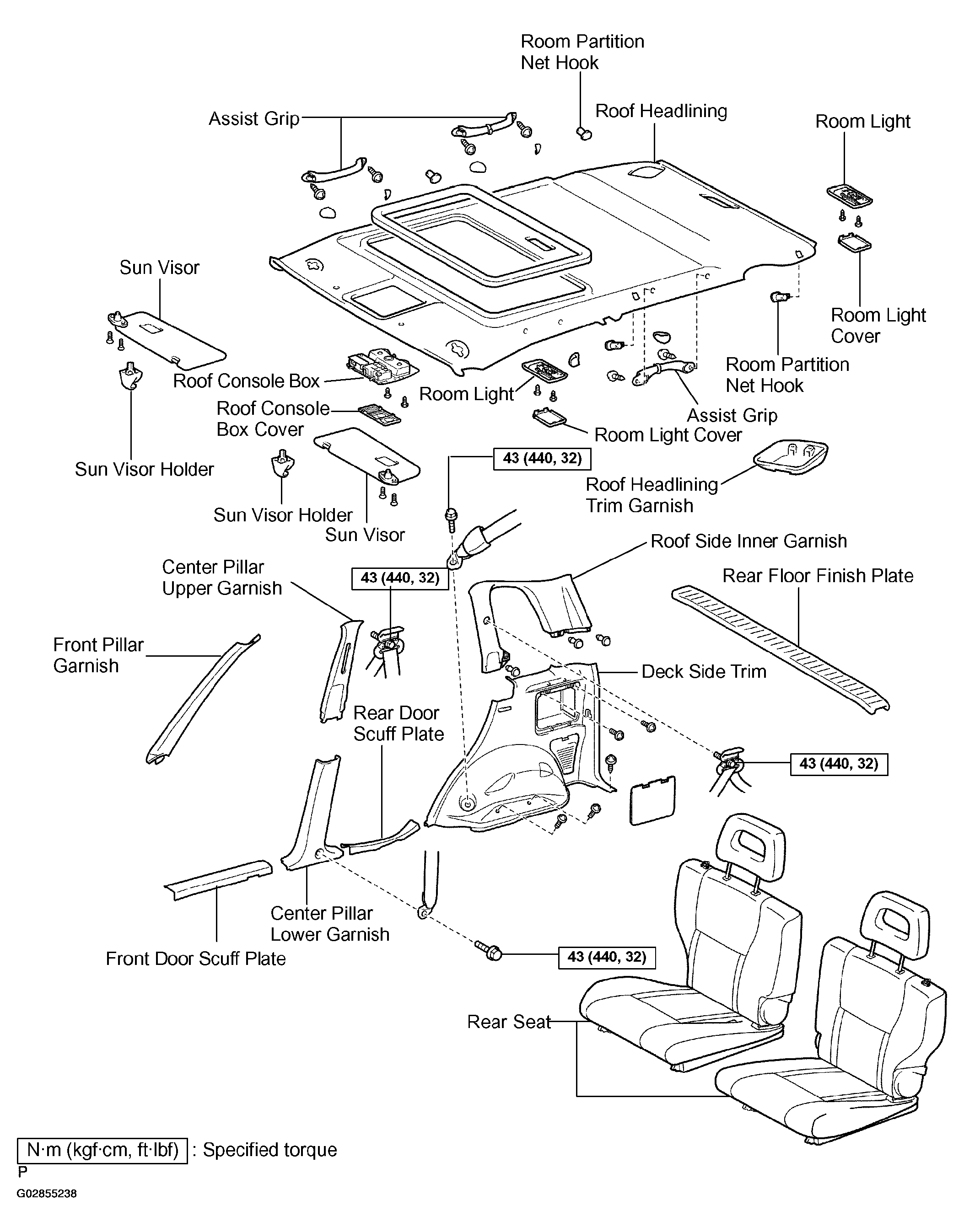

Fig 1: Exploded View Of Roof Headlining Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
