Front Wiper System & Washer System: Components

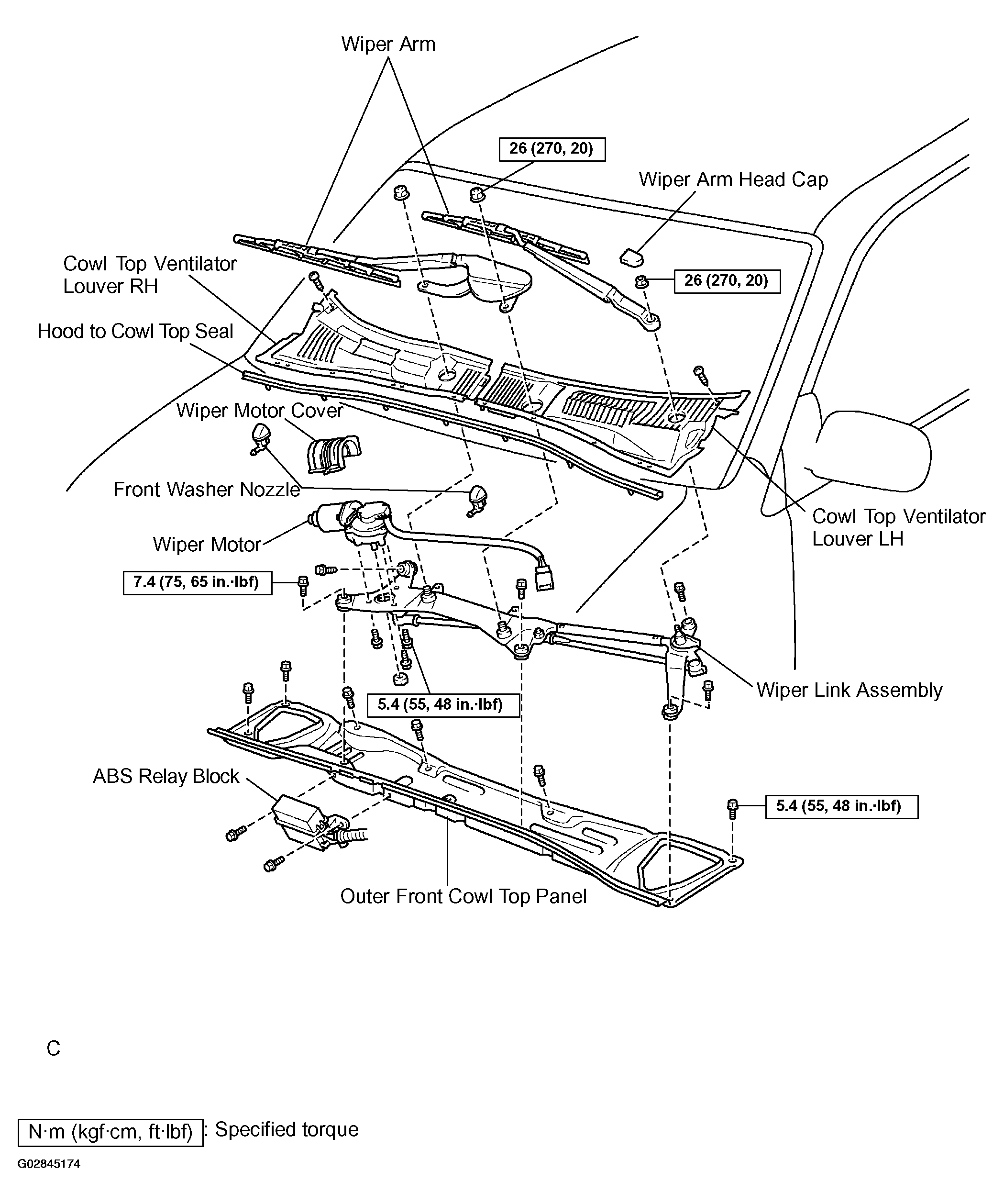

Fig 1: Identifying Components Of Front Wiper And Washer System
G02845174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
