On-Vehicle Repair

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT O/D DIRECT CLUTCH SPEED SENSOR CONNECTOR
REMOVE O/D DIRECT CLUTCH SPEED SENSOR
1. Remove the bolt and O/D direct clutch speed sensor.
2. Remove the O-ring from the O/D direct clutch speed sensor.

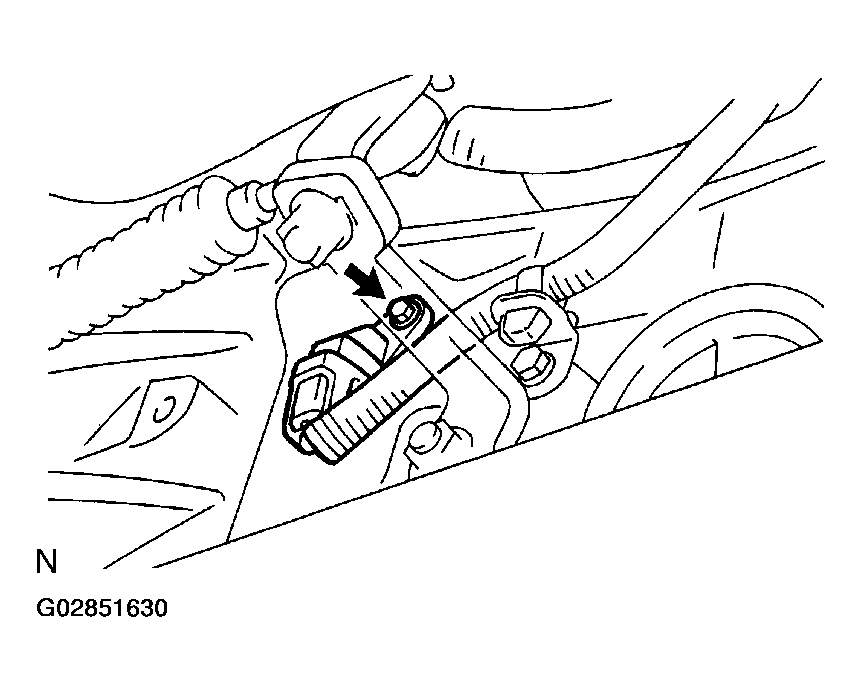

  Fig 1: Disconnecting O/D Direct Clutch Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL O/D DIRECT CLUTCH SPEED SENSOR
1. Coat a new O-ring with ATF and install it to the O/D direct clutch speed sensor.
2. Install the O/D direct clutch speed sensor to the transmission case with the bolt.
  Torque: 5.4 N.m (55 Kgf.cm, 48 in.lbf)
CONNECT O/D DIRECT CLUTCH SPEED SENSOR CONNECTOR
