Problem Symptoms Table: Notes

IGNITION SWITCH AND KEY UNLOCK WARNING SWITCH:

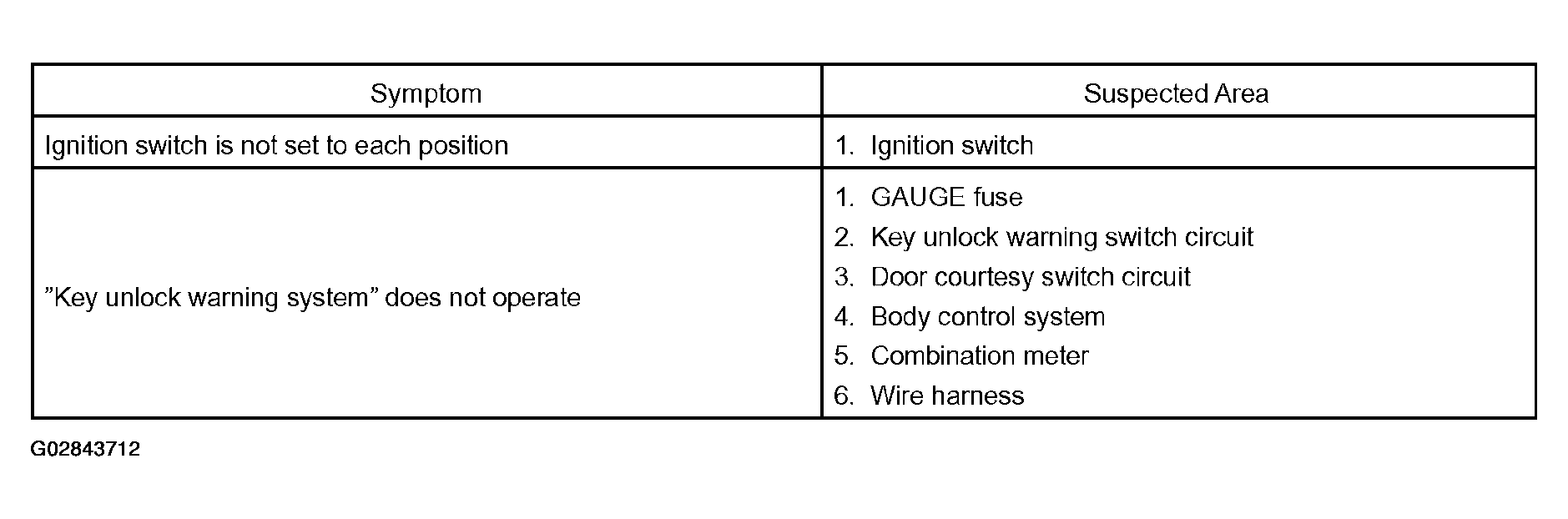

Fig 1: Problem Symptoms Table (Ignition Switch And Key Unlock)
G02843712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Warning Lights:
