Home >> Toyota >> 2003 >> Land Cruiser >> Repair and Diagnosis >> Steering >> Steering Column >> Power Tilt And Power Telescopic Steering Column >> Components

Power Tilt And Power Telescopic Steering Column: Components

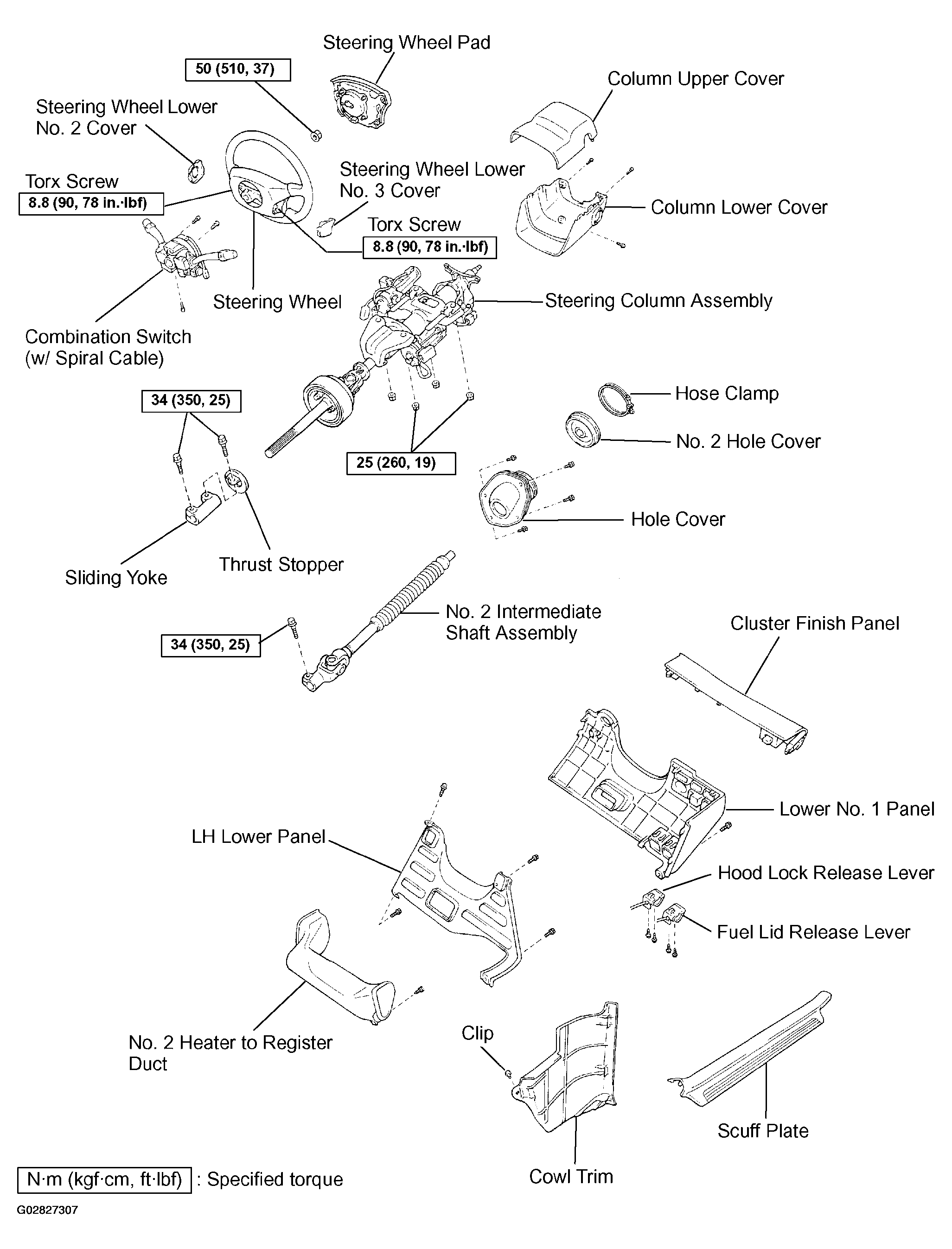

Fig 1: Exploded View Of Power Tilt & Power Telescopic Steering Column Components (1 Of 2)
G02827307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

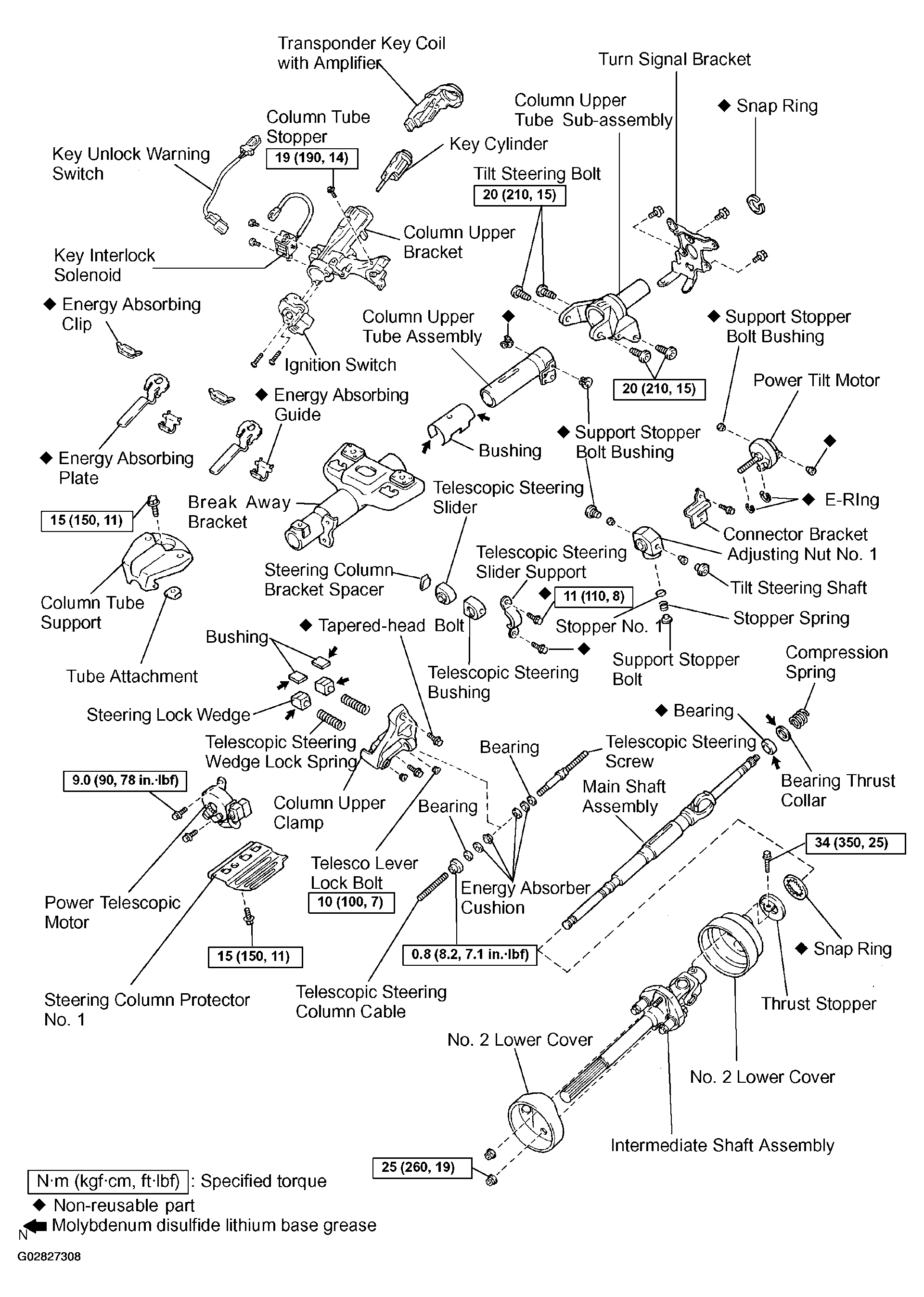

Fig 2: Exploded View Of Power Tilt & Power Telescopic Steering Column Components (2 Of 2)
G02827308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
