Power Steering Vane Pump: Replacement

NOTE: When using a vise, do not overtighten it.

IF NECESSARY, REPLACE OIL SEAL

Using a screwdriver with vinyl tape wound around its tip, remove the oil seal.

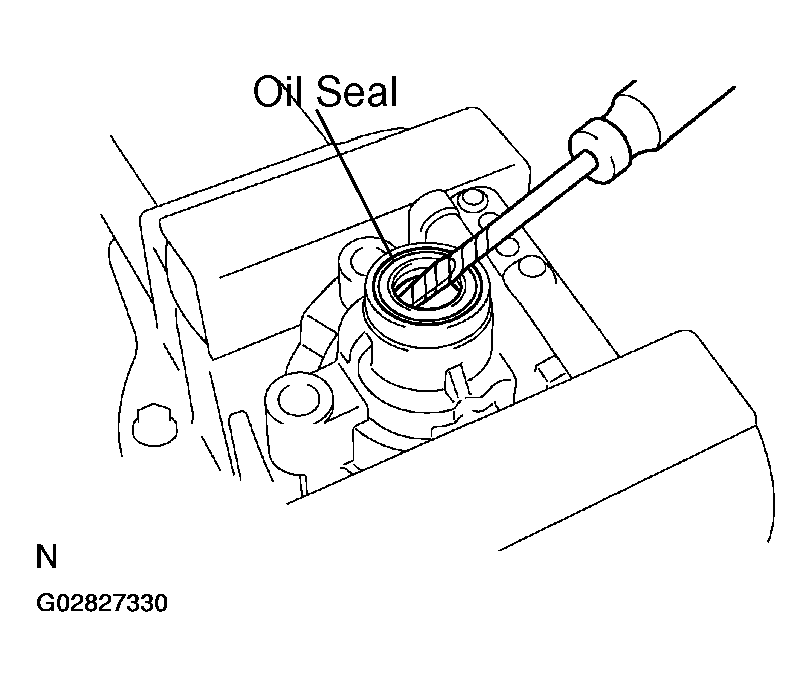

Fig 1: Removing Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Be careful not to damage the front housing.
Coat a new oil seal lip with power steering fluid.
Using SST, press in the oil seal.
SST 09950-60010 (09951-00280), 09950-70010 (09951-07100)

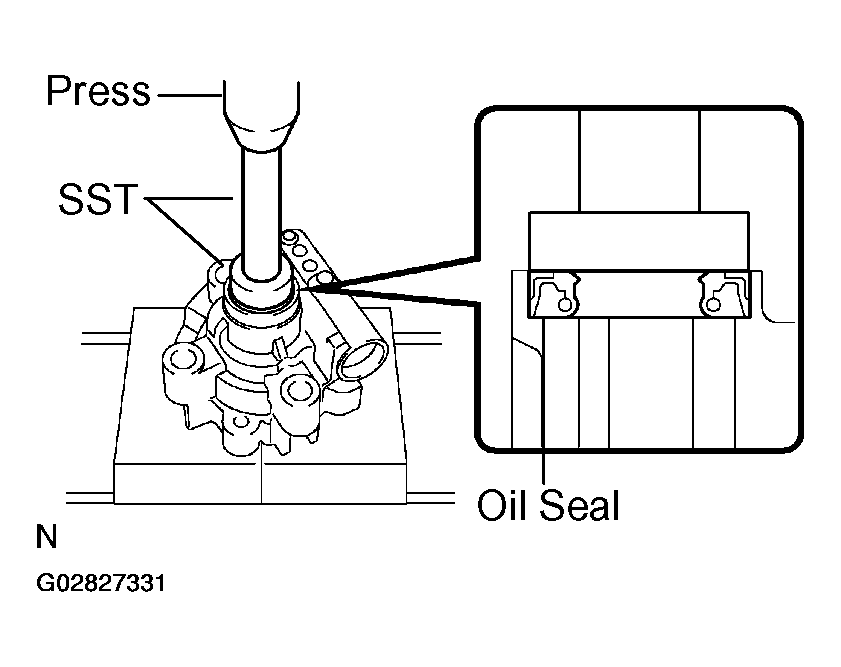

Fig 2: Installing Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Make sure to install the oil seal facing the correct direction.
