Section 539 (Interior Light System): Location

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

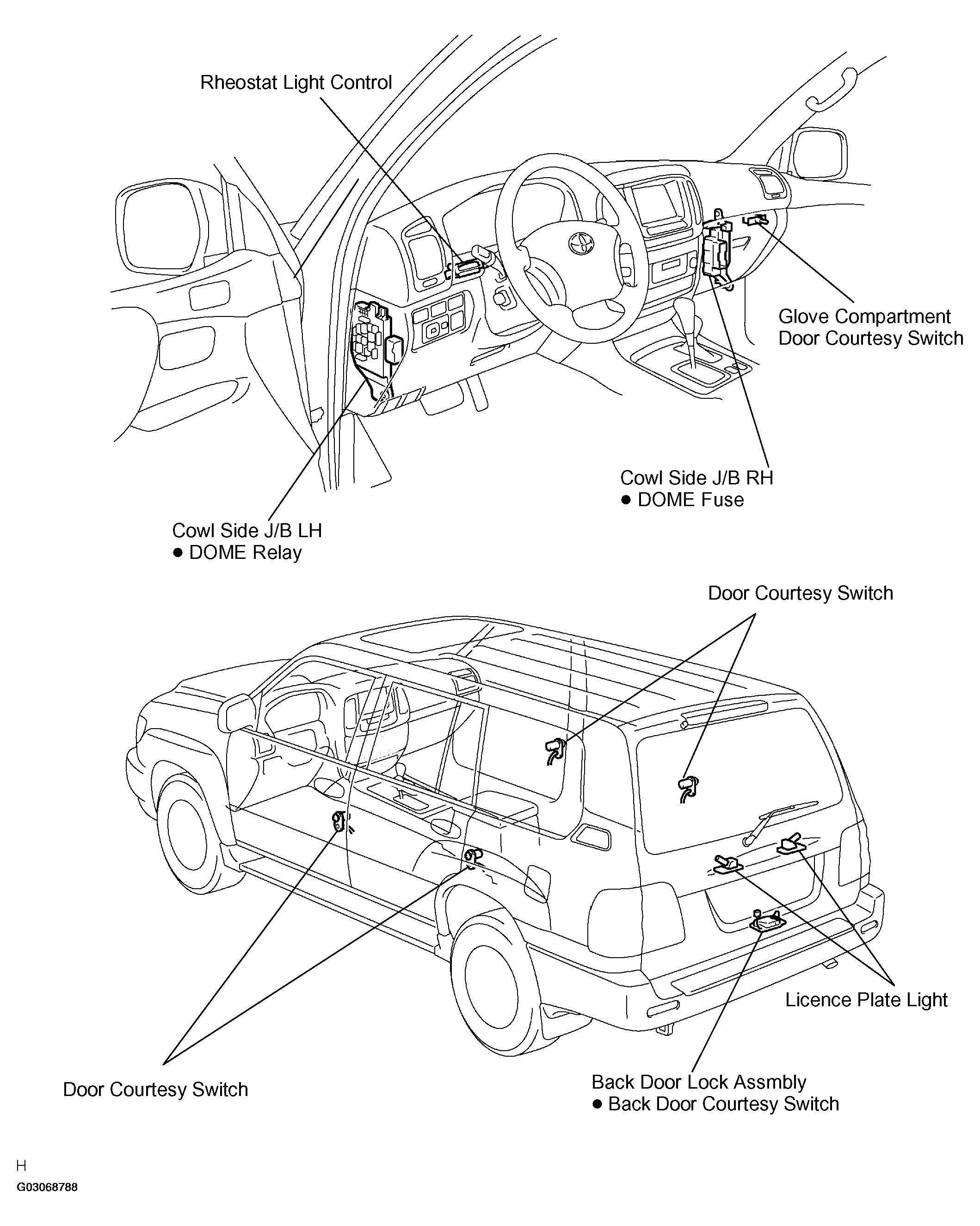

Fig 1: Identifying Interior Light System Component Location (1 Of 2)
G03068788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

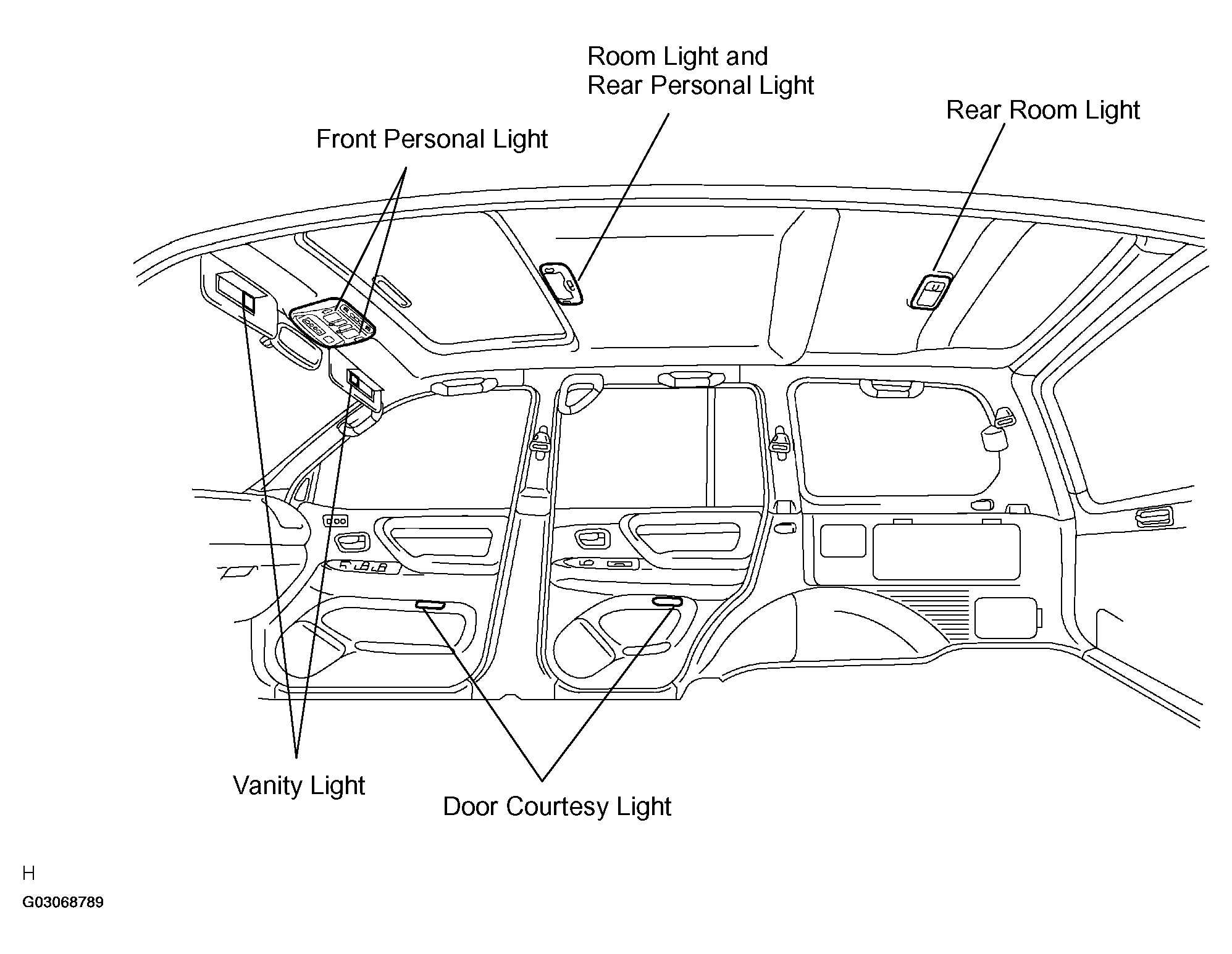

Fig 2: Identifying Interior Light System Component Location (2 Of 2)
G03068789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
