Section 527 (Starting System): Starter: Installation

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL STARTER
1. Install the engine wire protector to the starter with the bolt.
  Torque: 9.81 N.m (100 kgf.cm, 84 in.lbf)
2. Connect the starter wire with the nut.
  Torque: 9.81 N.m (100 kgf.cm, 84 in.lbf)
3. Connect the starter connector.
4. Connect the starter to the cylinder block.
5. Connect the engine wire with the bolt.

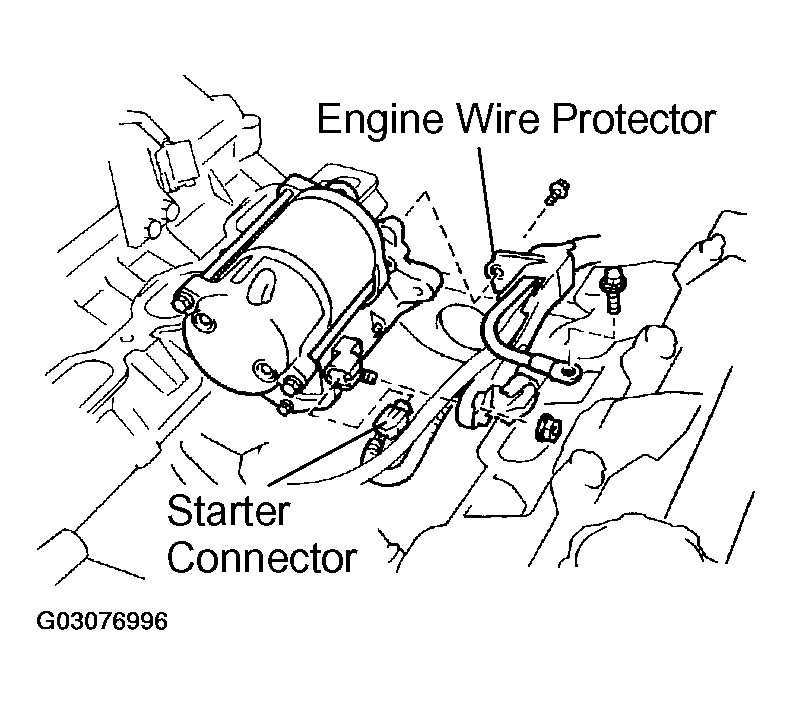

  Fig 1: Locating Starter Connector & Engine Wire Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the starter with the 2 bolts.
  Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

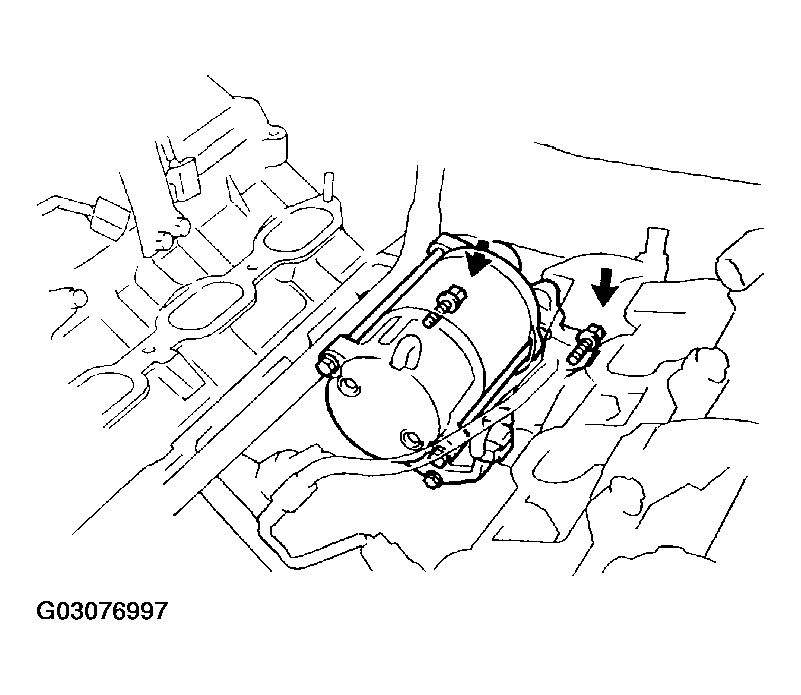

  Fig 2: Locating Starter Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD ASSEMBLY
(See INSTALLATION )
INSTALL INTAKE AIR CONNECTOR
INSTALL V-BANK COVER
