Home >> Toyota >> 2003 >> Land Cruiser >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Radiator >> Components

Cooling System (Mechanical): Radiator: Components

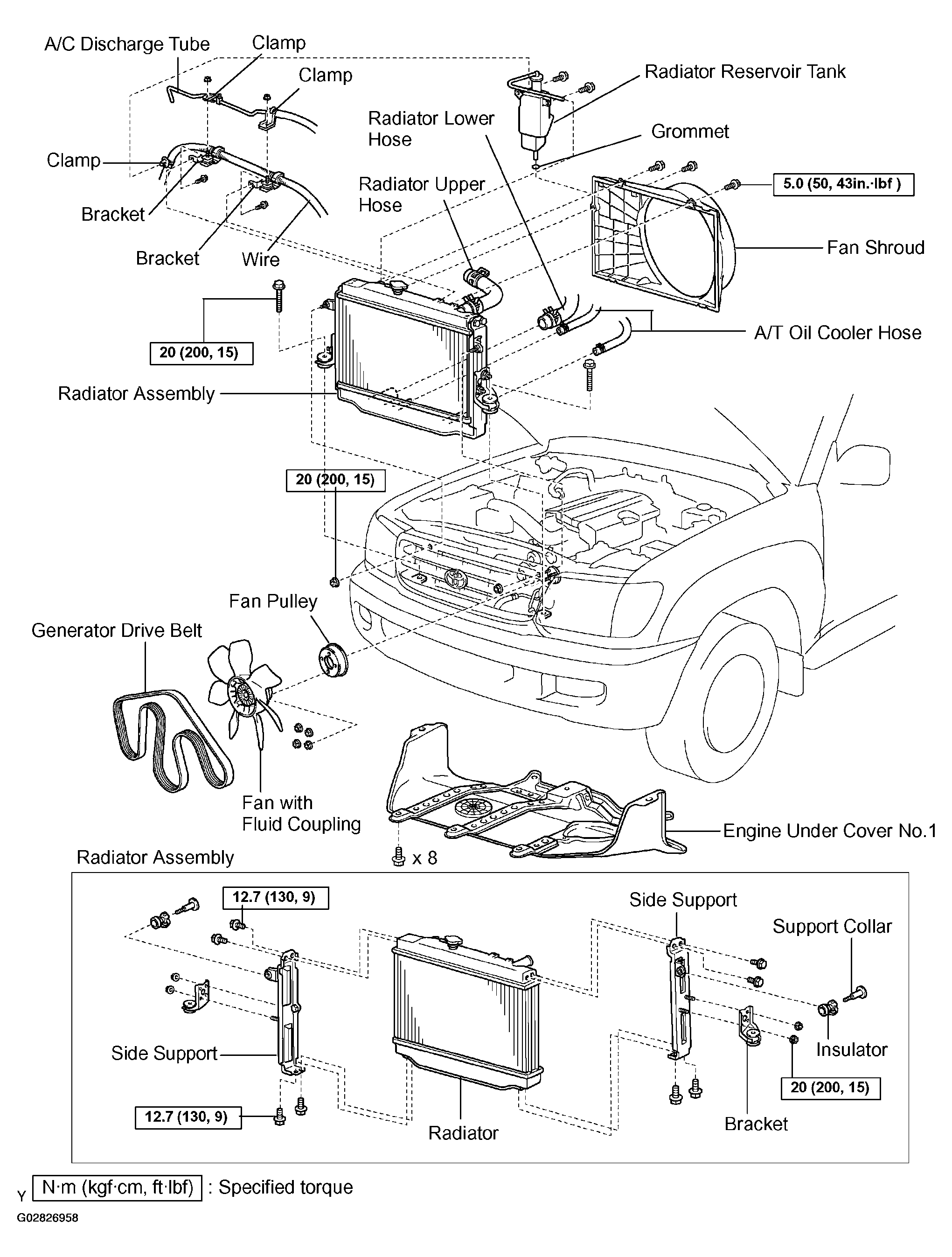

Fig 1: Exploded View Of Cooling System Component

G02826958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
