Front Seat: Components

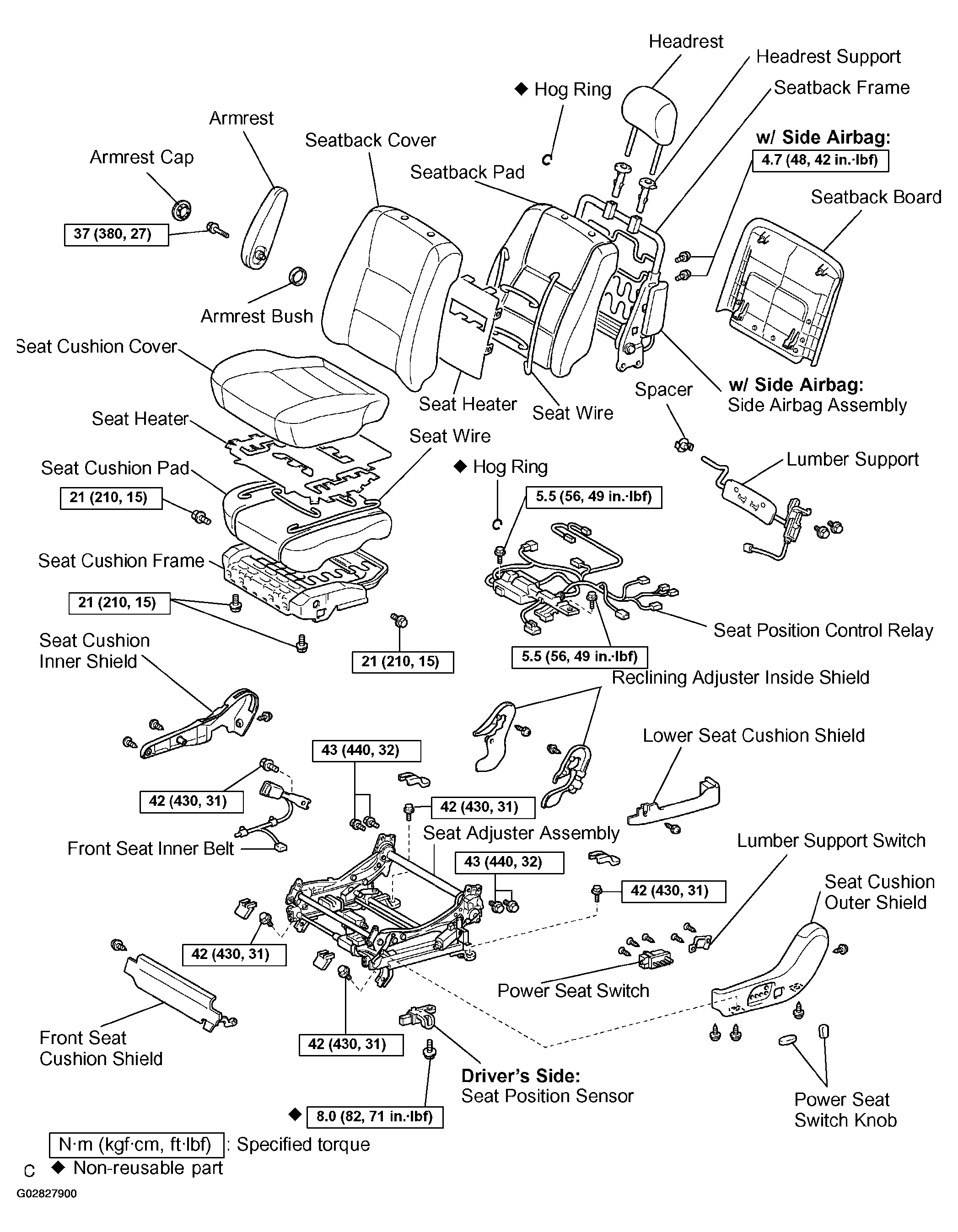

Fig 1: Exploded View Of Front Seat Assembly

G02827900

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
