Defogger System Location
Defogger System Location

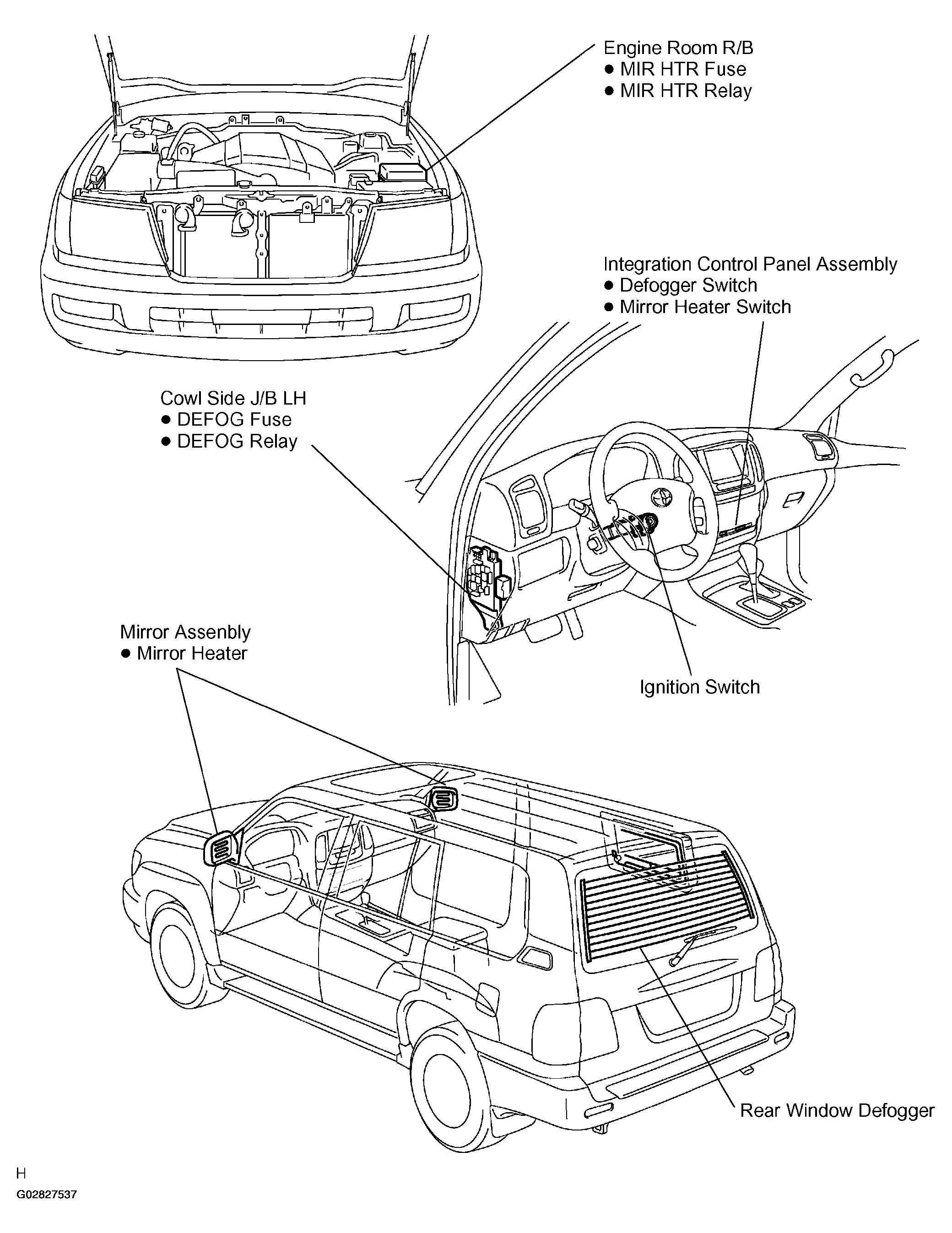

Fig 1: Identifying Component Location Of Defogger System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
