Section 393 (Audio & Visual System)
>>
Components
Section 393 (Audio & Visual System): Components
WARNING:
This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

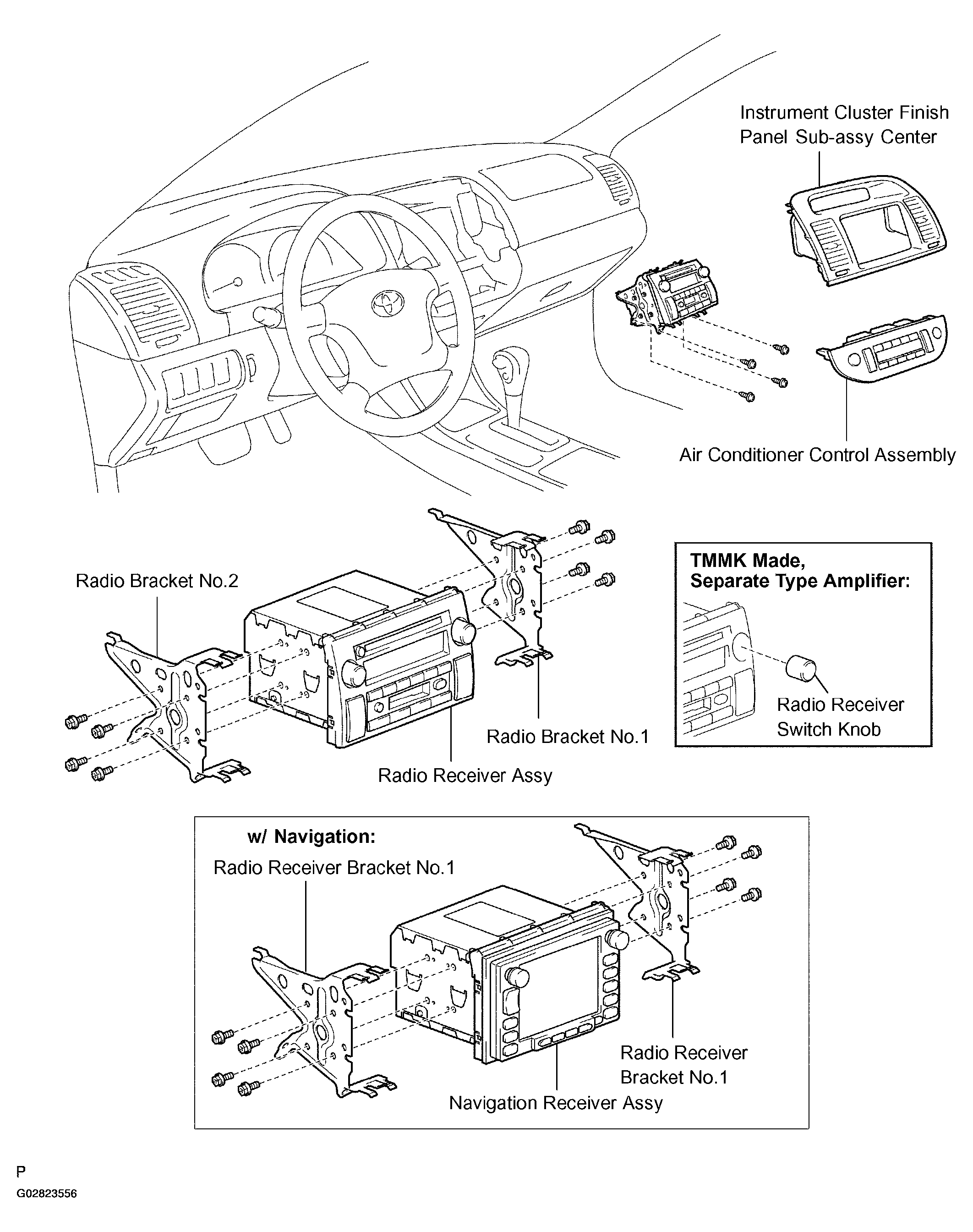

Fig 1: Locating Audio Visual System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

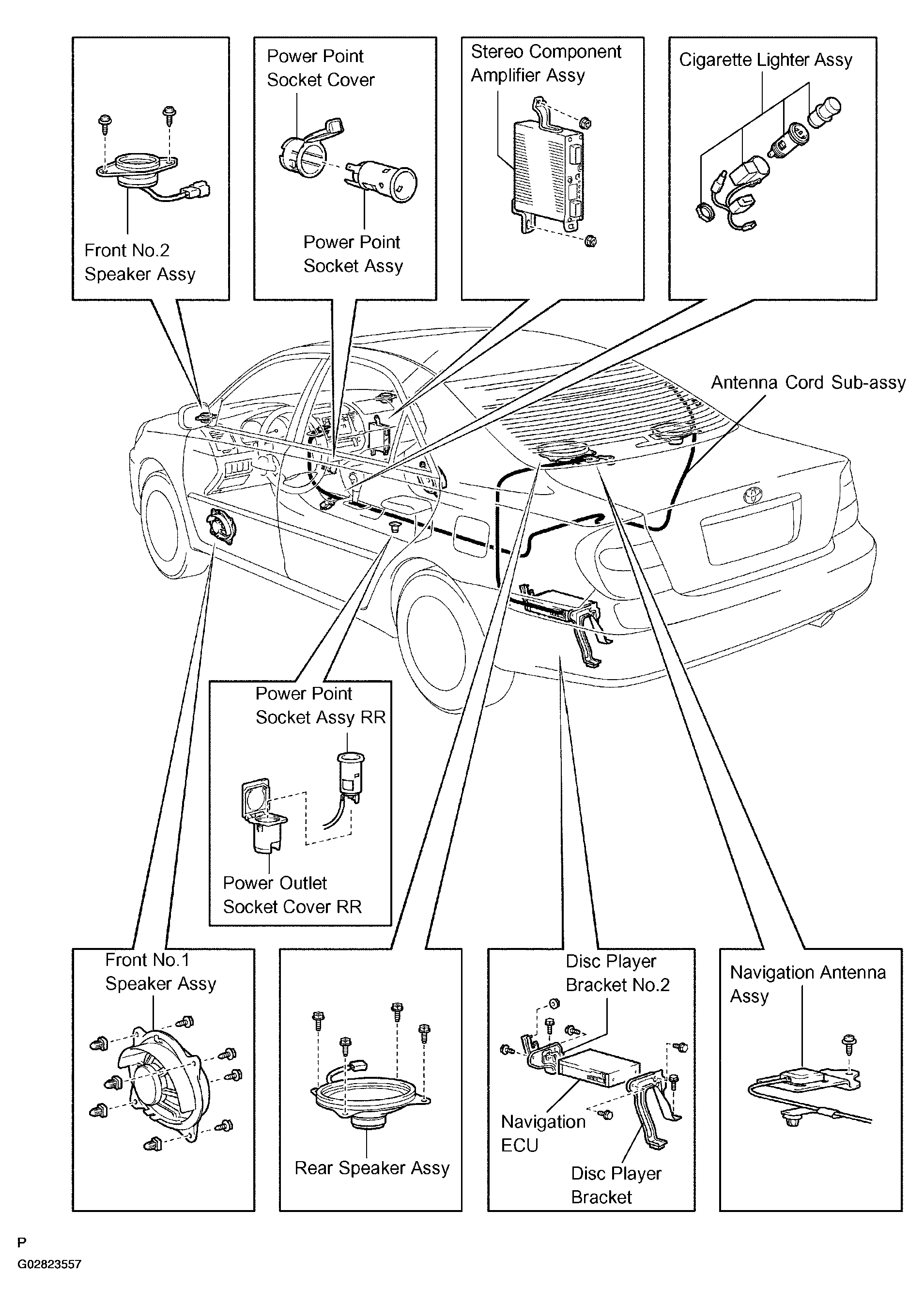

Fig 2: Locating Entertainment Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
