Power Door Lock Control System - Diagnostics
>>
Power Door Lock Control System
>>
Problem Symptoms Table
Problem Symptoms Table

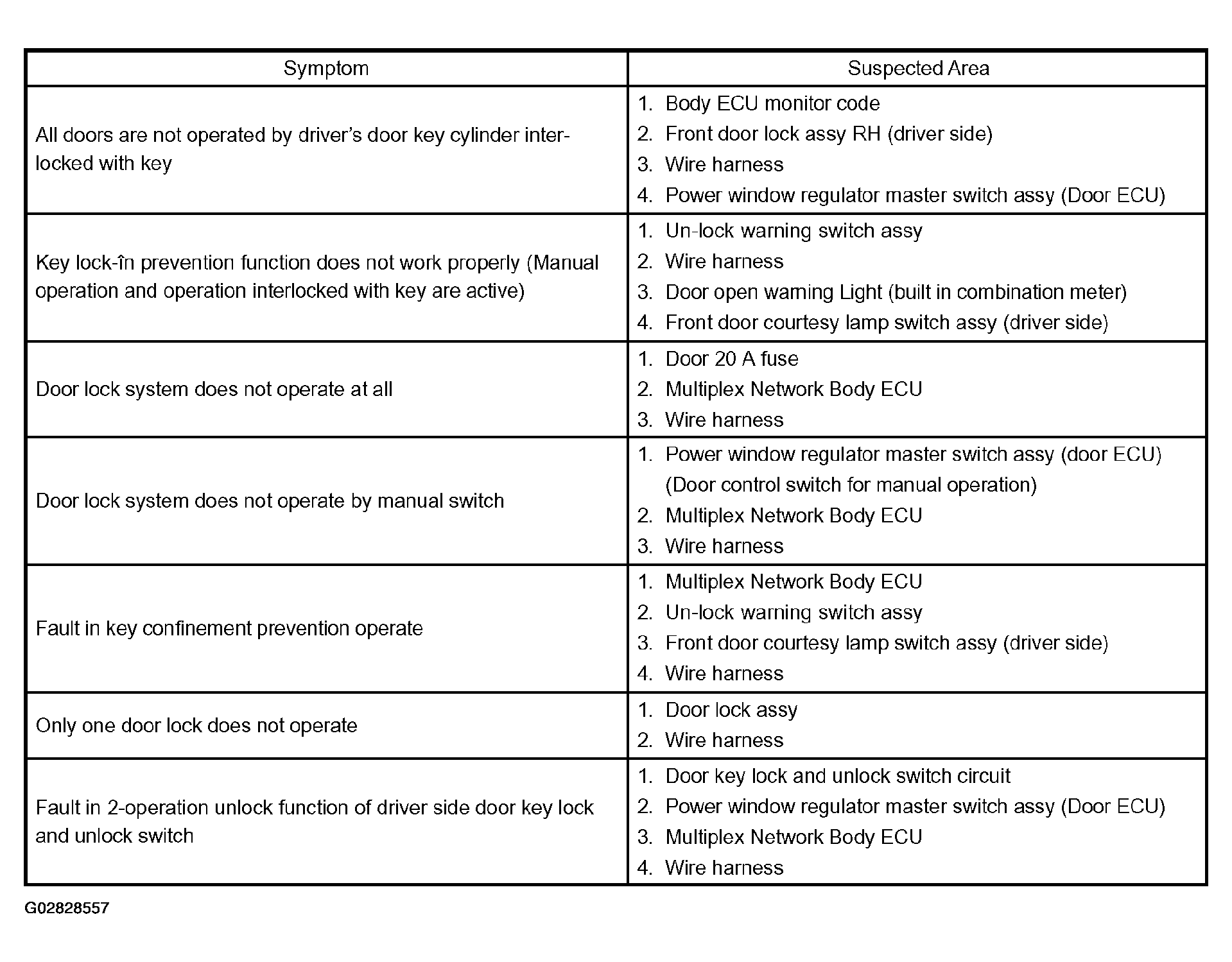

Fig 1: Power Door Lock Control System Problem Symptoms Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
