Floor Shift Assembly: Installation

Install floor shift assembly as follows:

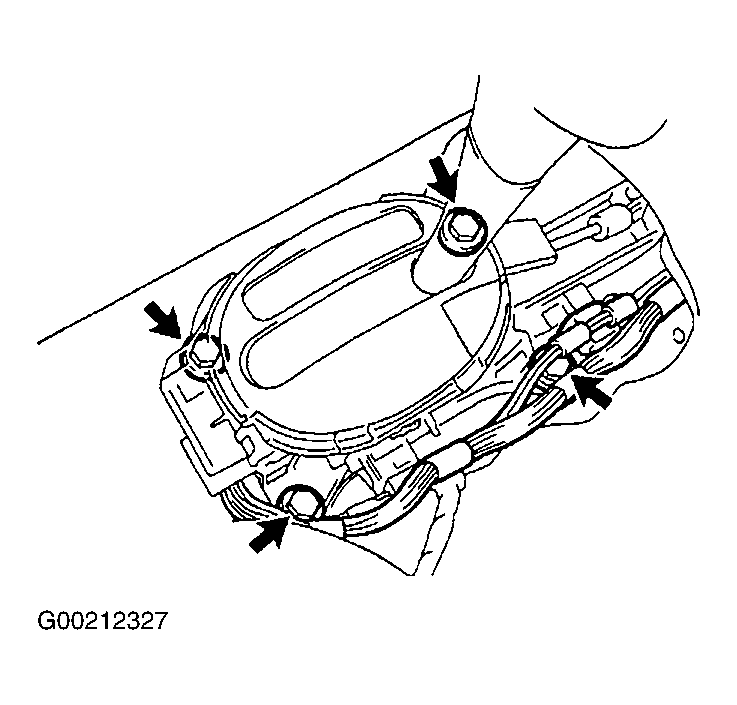

1. Install the floor shift assembly with the 4 bolts. See Figure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
2. Install the wire harness clamps to the shift lever plate.
3. Shift the shift lever in N position, push the lever to the R position side and hold it there.

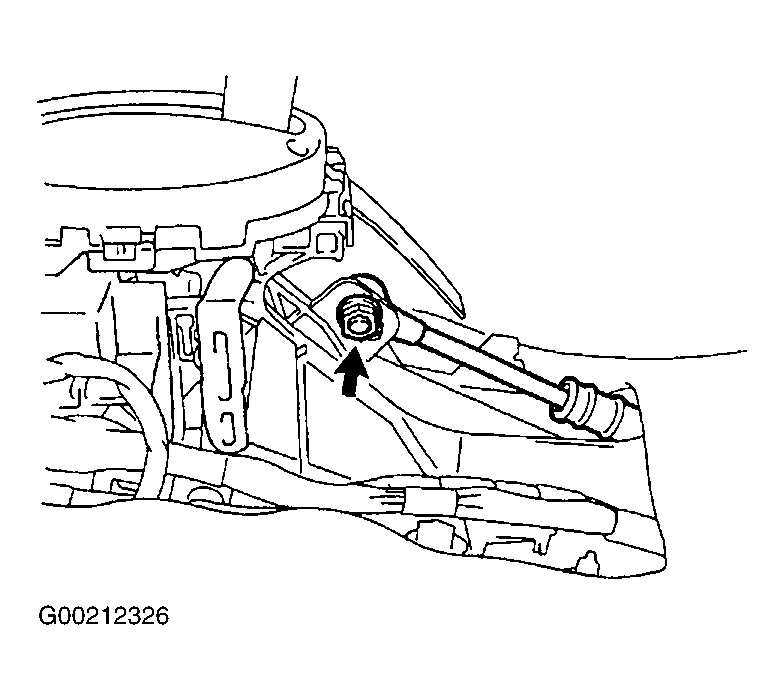

4. While pulling the cable, install the cable with the nut. See Figure. Tighten nut to specification. See TORQUE SPECIFICATIONS .
5. Connect the 2 connectors.
Install key interlock cable as follows:

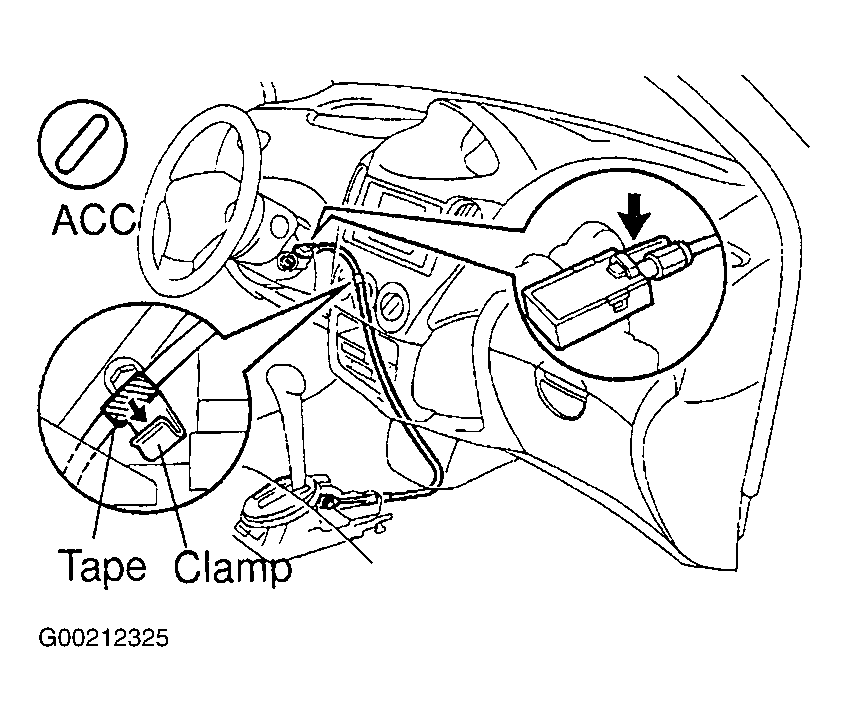

1. With the key in ACC, install the cable cap claw to the key interlock. See Figure.
2. Install the cable to the clamp for No. 1 instrument panel box.
3. Insert the cable end rod from the slit of the shift lever plate.
4. Insert the slide cap into the through hole and install.
5. Insert the lever pin into the hole in the cable end.
  NOTE: At this time, ensure that the shift lever is in N position. After installation, make sure that the lever pin is pulled by the cable and is stopped with a stopper.
6. To check that the spring for automatic adjustment works properly, hold the slide cap and move it back and forth.
7. Lock the adjust lock cap.
  NOTE: Rotate it counterclockwise by 90° facing to the front of the vehicle.

  NOTE: Install the cable on the shift lever side with the key in ACC. Make sure the slide amount for the spring for automatic adjustment is 0.3" (8 mm).
Install rear console box, instrument cluster panel and column cover. Check system operation. See SYSTEM OPERATION CHECK under SYSTEM TESTS.
