Transmission Control System - A541E - Diagnostics
>>
How To Proceed With Troubleshooting
How To Proceed With Troubleshooting

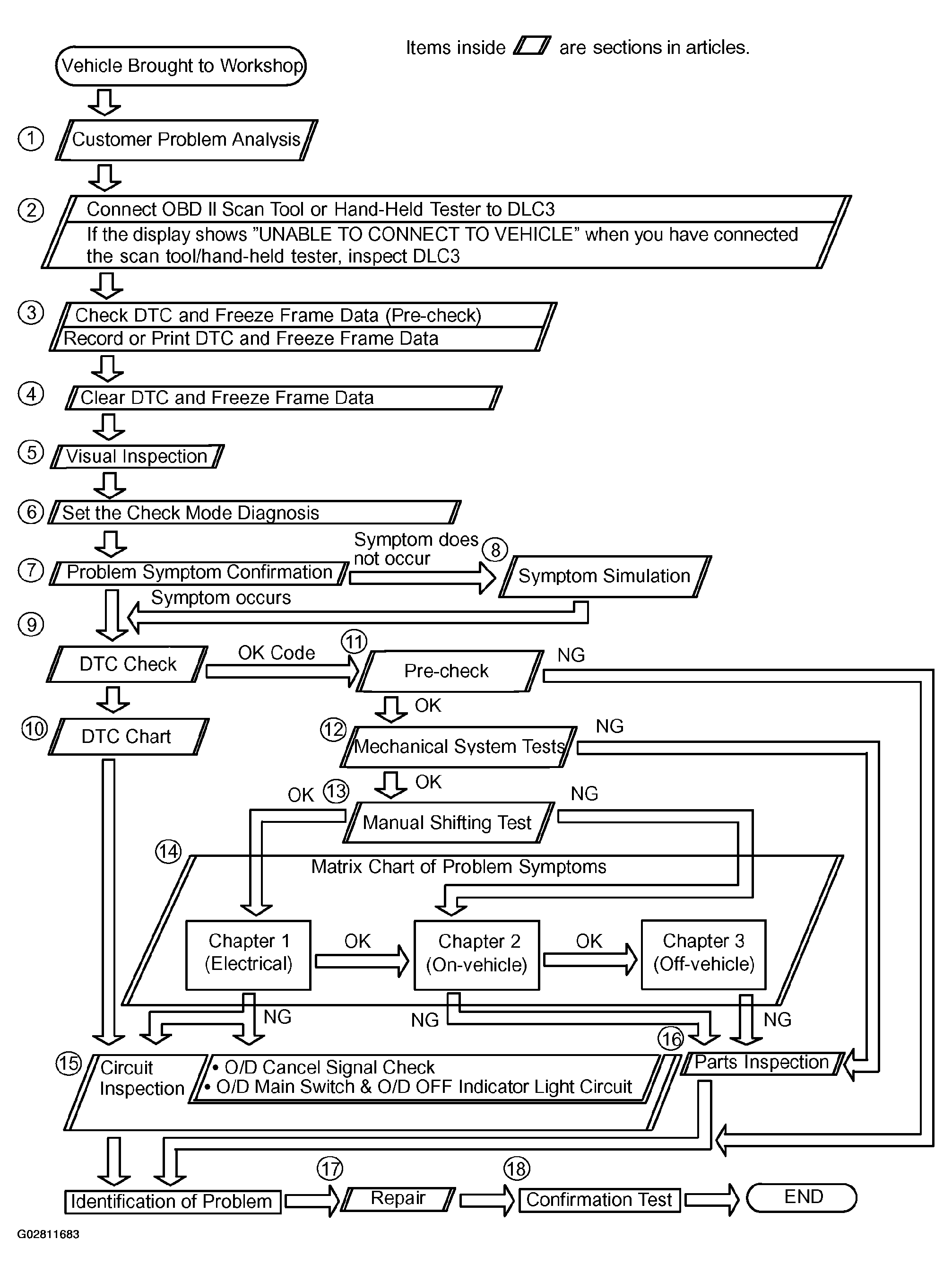

Fig 1: Automatic Transaxle (A541E) Troubleshooting Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
