Diagnostic Trouble Code Chart
NOTE:
- Using SST 09843-18020, connect terminals Tc and E1 of the DLC1 or DLC2, and remove the short pin.
- If a malfunction code is displayed during the DTC check, check the circuit listed in code. For details of each code, refer to "DTC No." in the DTC chart.
NOTE:
There is a case that hand-held tester cannot be used when ABS warning light is always on.

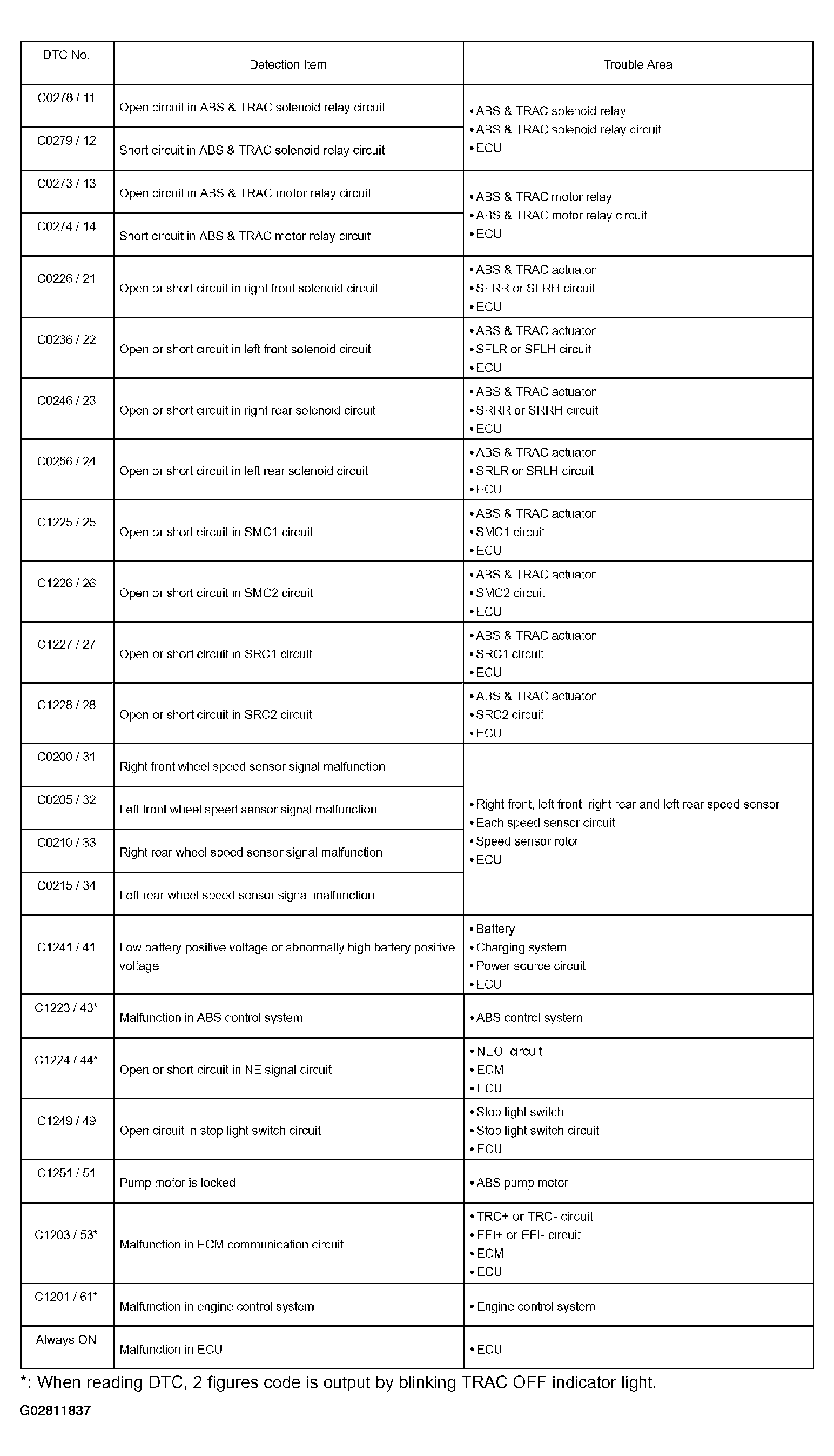

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC C0278/11, C0279/12 | ABS & TRAC SOLENOID RELAY CIRCUIT |
| DTC C0273/13, C0274/14 | ABS & TRAC MOTOR RELAY CIRCUIT |
| DTC C0226/21, C0236/22, C0246/23, C0256/24, C1225/25, C1226/26, C1227/27, C1228/28 | ABS & TRAC ACTUATOR SOLENOID CIRCUIT |
| DTC C0200/31, C0205/32, C0210/33, C0215/34 | SPEED SENSOR CIRCUIT |
| DTC C1241/41 | IG POWER SOURCE CIRCUIT |
| DTC C1223/43 | ABS CONTROL SYSTEM MALFUNCTION |
| DTC C1224/44 | NE SIGNAL CIRCUIT |
| DTC C1249/49 | STOP LIGHT SWITCH CIRCUIT |
| DTC C1251/51 | ABS PUMP MOTOR LOCK |
| DTC C1203/53 | ECM COMMUNICATION CIRCUIT MALFUNCTION |
| DTC C1201/61 | ENGINE CONTROL SYSTEM MALFUNCTION |
