Ecu Power Source Circuit

For ECU power source circuit testing procedure, see Fig 1 and Fig 2 . For ECU terminal voltages, see Fig 3.

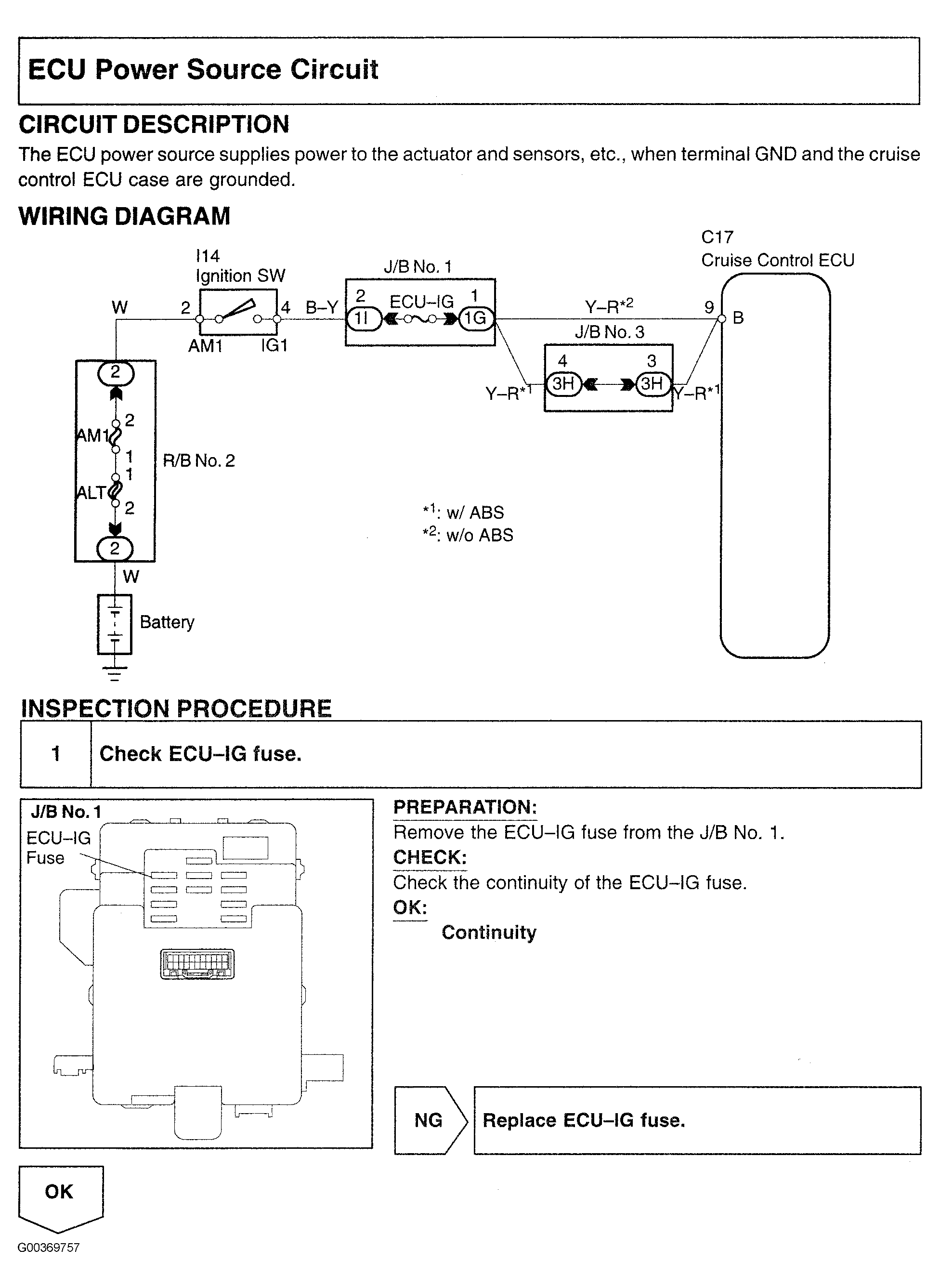

Fig 1: Testing ECU Power Source Circuit (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

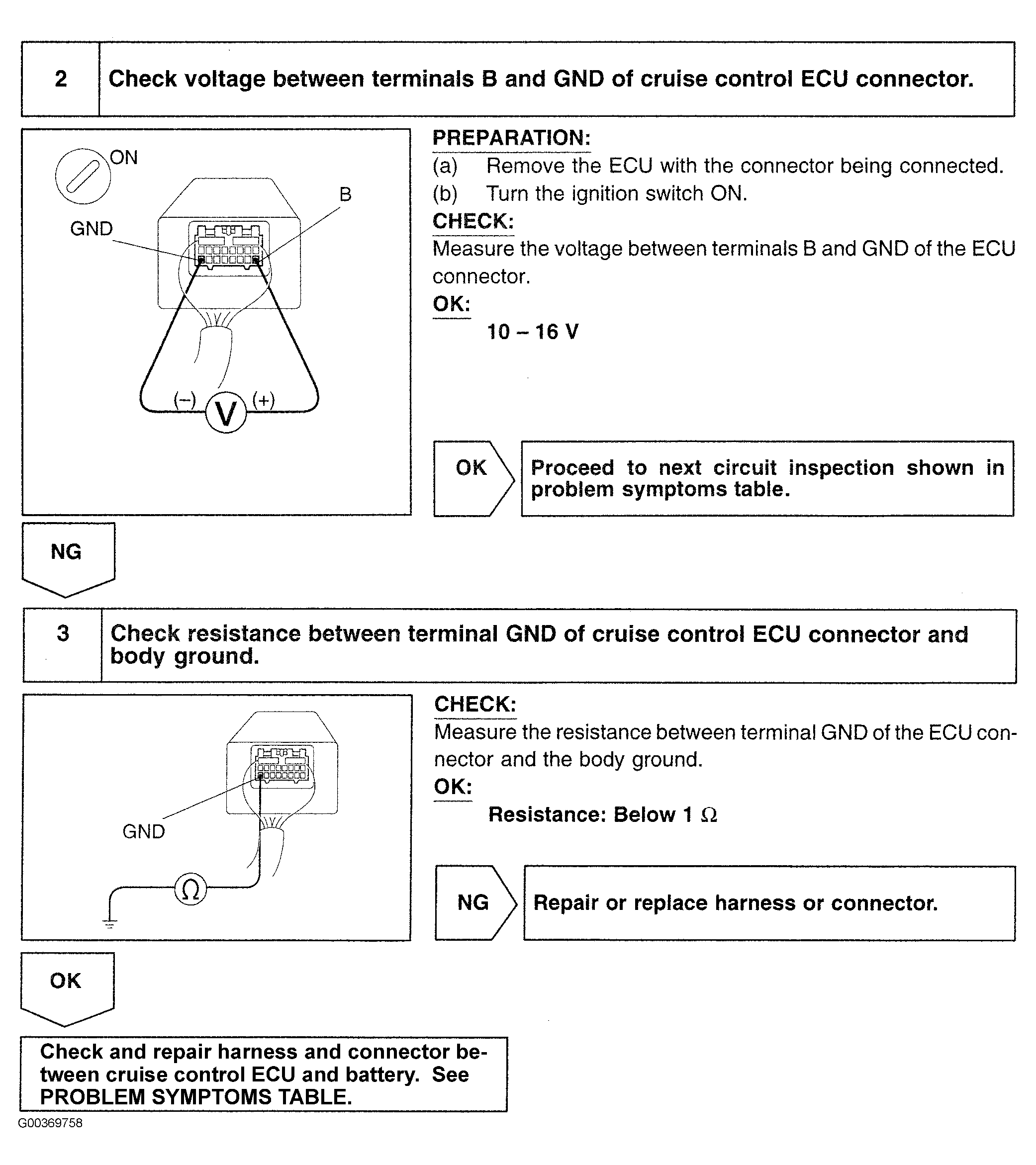

Fig 2: Testing ECU Power Source Circuit (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

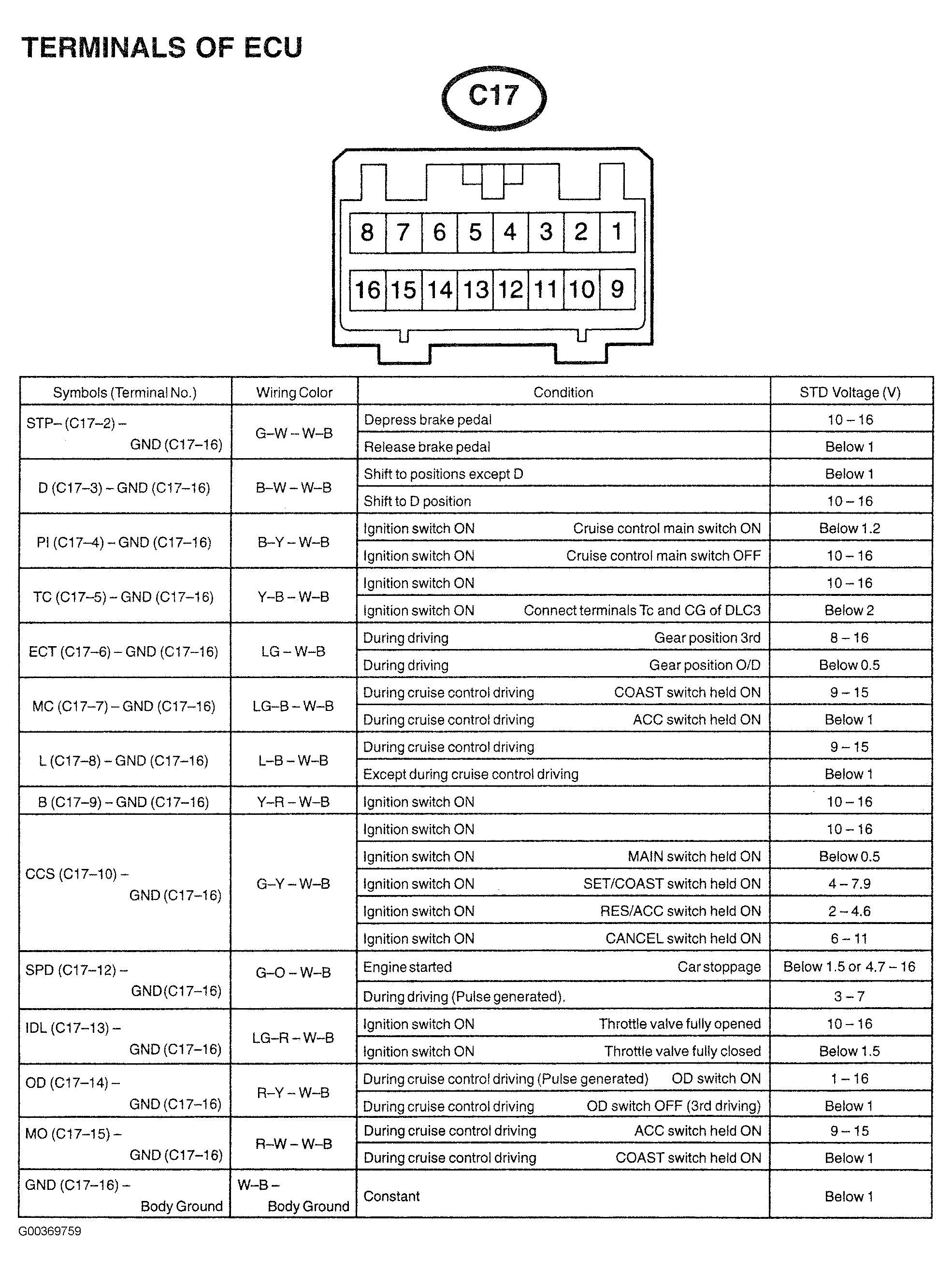

Fig 3: ECU Terminal Voltages Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
