Driver Buckle Switch Circuit: Wiring Diagram

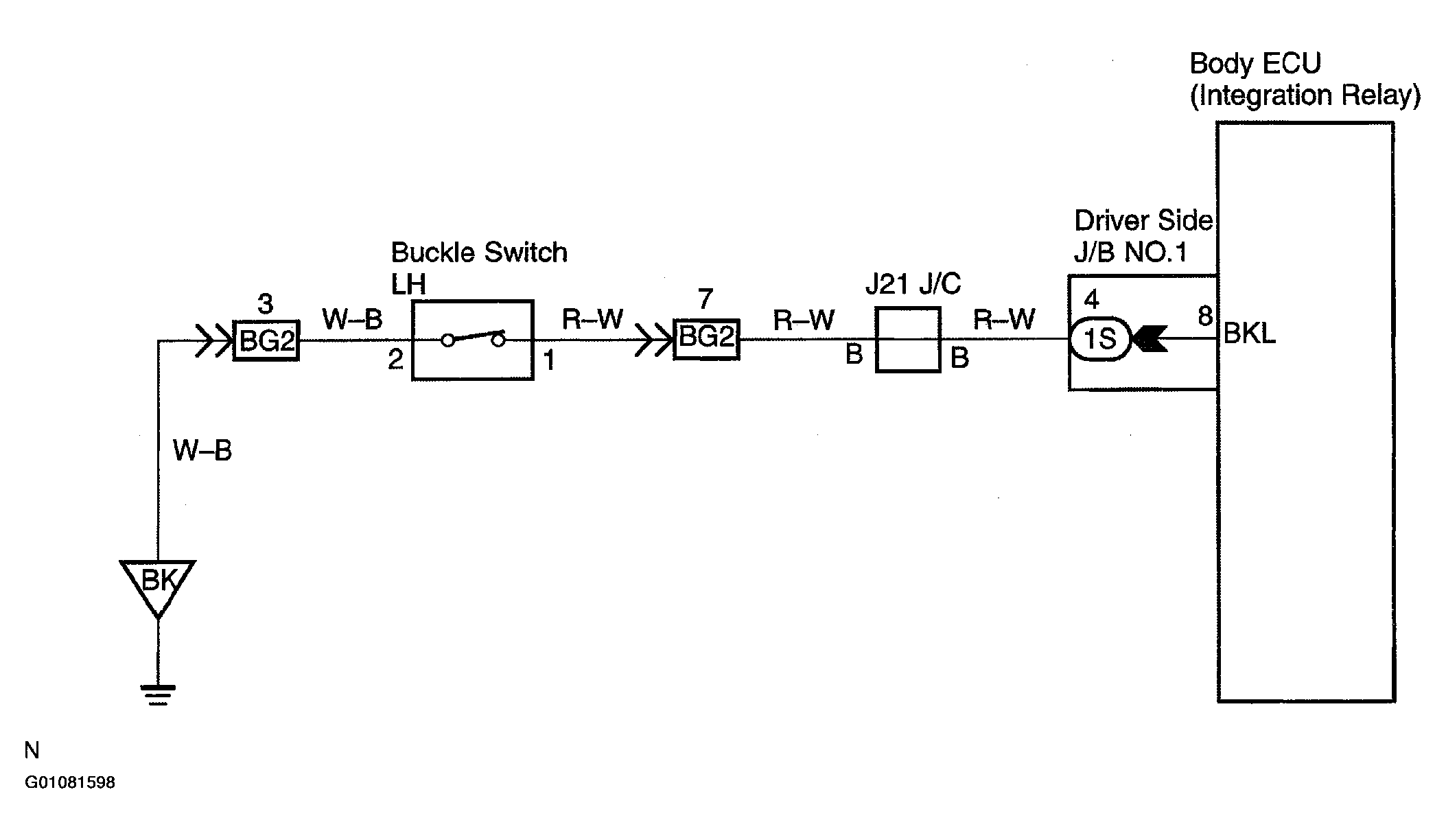

Fig 1: Driver Buckle Switch Circuit

G01081598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
