On-Vehicle Repair

Disconnect No. 1 Vehicle Speed Sensor Connector See Fig 1.

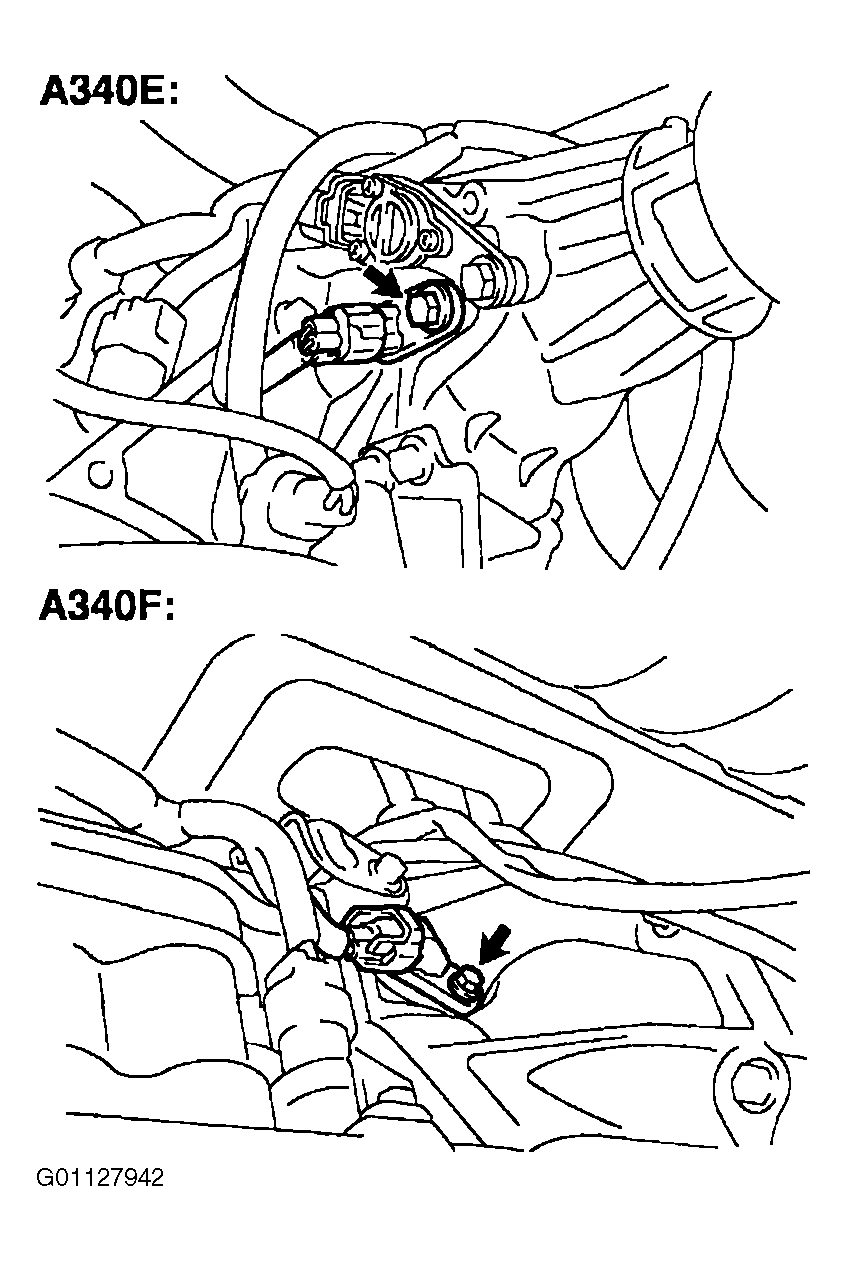

Fig 1: Locating Speed Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove No. 1 Vehicle Speed Sensor .
Remove the bolt and No. 1 vehicle speed sensor.
Disassemble No. 1 Vehicle Speed Sensor :
1. Remove the "O" ring from the speed meter driven gear assembly. See Fig 2.
2. Remove the clip and speed meter driven gear from the speed meter driven gear from the speed meter driven gear sleeve.
Assemble No. 1 Vehicle Speed Sensor :
1. Install the speed meter driven gear and clip to the speed meter driven gear sleeve. See Fig 2.
2. Coat a new "O" ring with ATF.
3. Install the "O" ring to the speed meter driven gear assembly.
Install No. 1 Vehicle Speed Sensor .
Install the No. 1 vehicle speed sensor with the bolt.

Torque: 16 N.m (160 kgf.cm, 12 ft.lbf)
Connect No. 1 Vehicle Speed Sensor Connector .

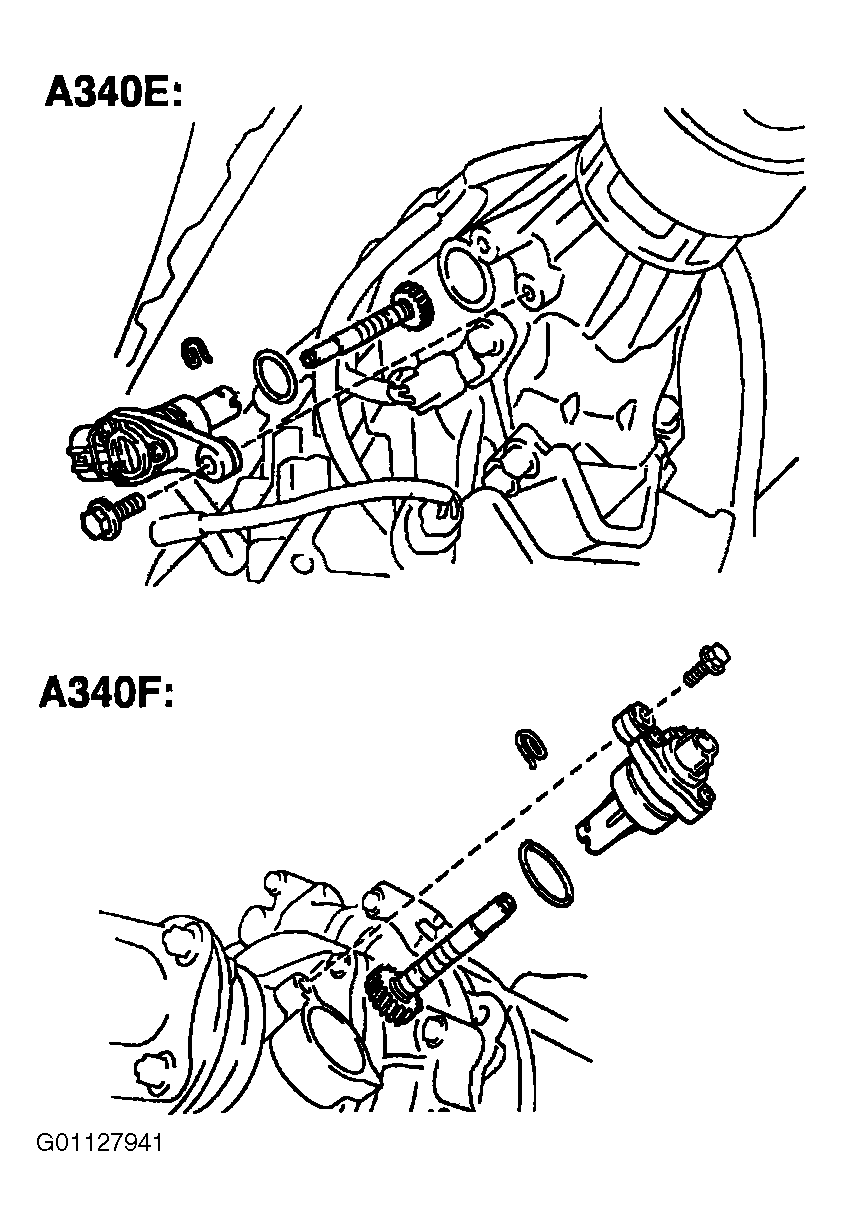

Fig 2: Exploded View Of Vehicle Speed Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Disconnect No. 2 Vehicle Speed Sensor Connector .
Remove No. 2 Vehicle Speed Sensor :
1. Remove the bolt and No. 2 vehicle speed sensor. See Fig 3.

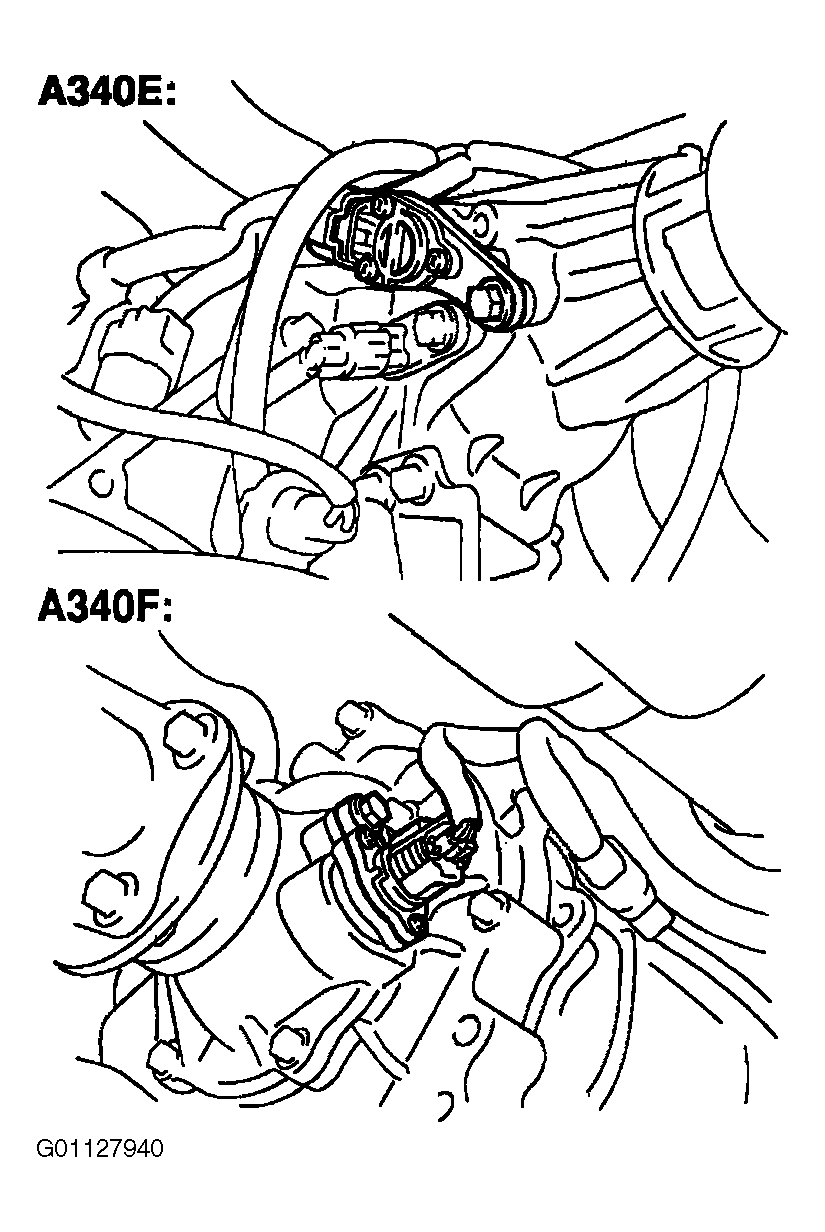

  Fig 3: Locating No. 2 Vehicle Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the "O" ring from the No. 2 vehicle speed sensor.
Install No. 2 Vehicle Speed Sensor :
1. Coat a new "O" ring with ATF and install it to the No. 2 vehicle speed sensor. See Fig 4.
2. Install the No. 2 vehicle speed sensor with the bolt.
  Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
Connect No. 2 Vehicle Speed Sensor Connector .

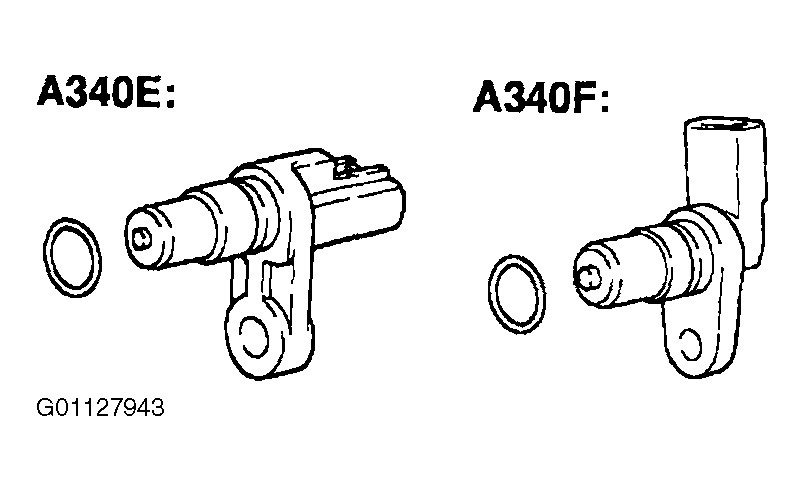

Fig 4: Exploded View Of No. 2 Vehicle Speed Sensor Connector
