Home >> Toyota >> 2002 >> Camry Solara SLE, 2D Convertible >> Repair and Diagnosis >> Engine Performance >> System >> Emission Control System - 1MZ-FE >> Three-Way Catalytic Converter (TWC) System >> Components

Three-Way Catalytic Converter (TWC) System: Components

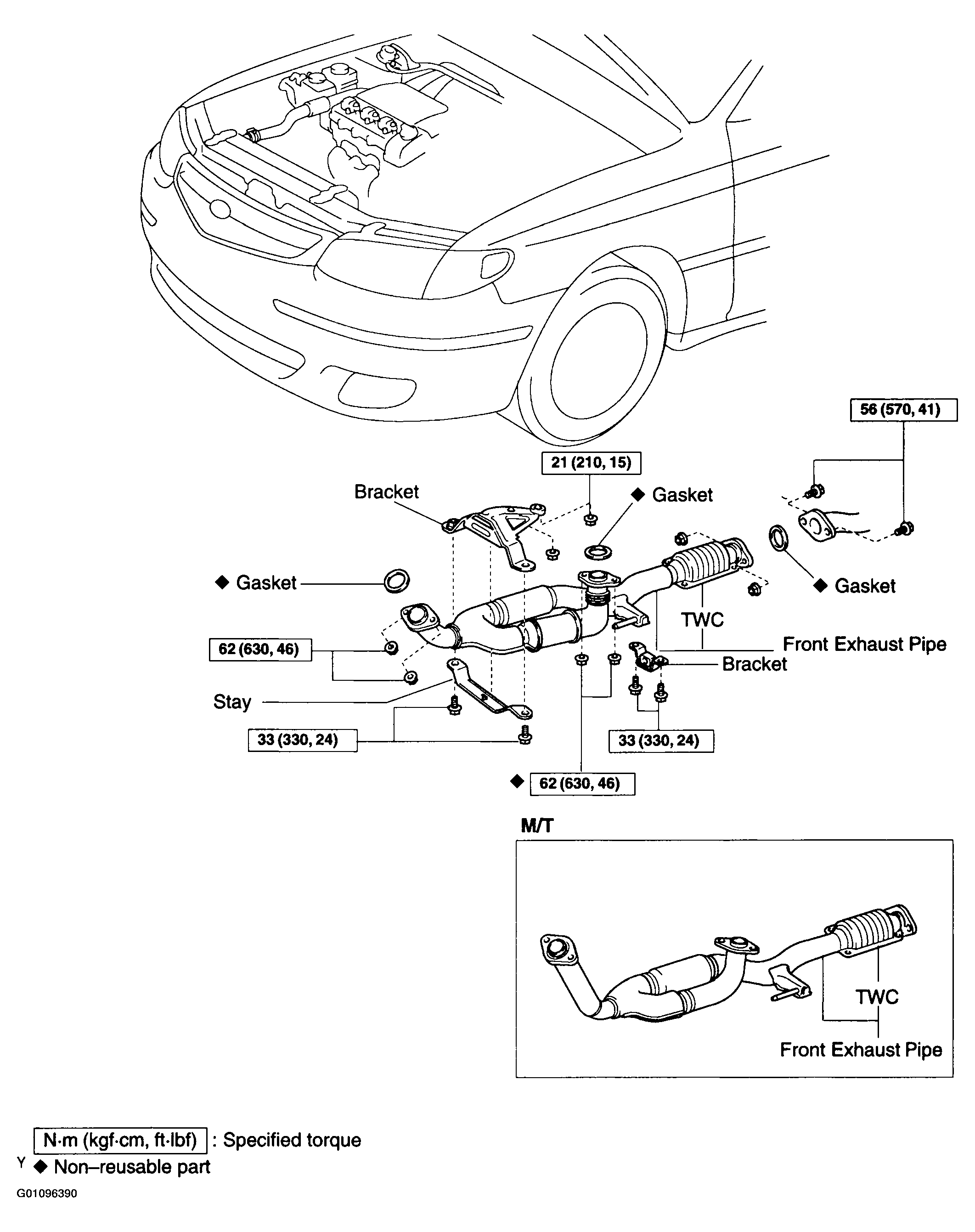

Fig 1: Identifying TWC Components

G01096390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
